Control Wiring 5-3

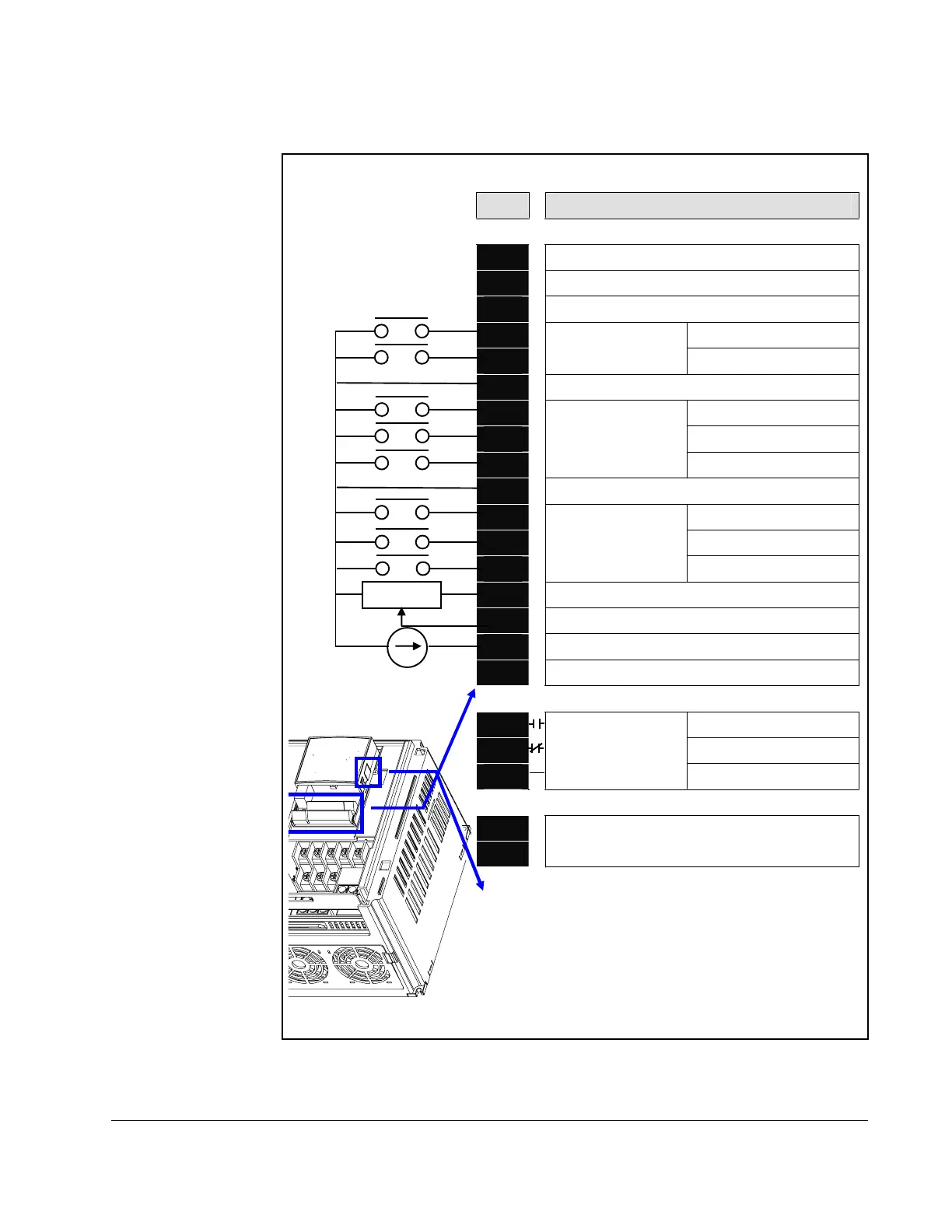

5.3 Terminal Wiring (Control I/O)
T/M Description
MO Multi-function open coll ector output
MG MO Common
24 24V output
P1 FX: Forward run
P2
MF input terminal
(factory setting)
RX: Reverse run
CM Input signal common
P3 BX: Stop
P4 RST: Trip reset
P5
MF input terminal
(factory setting)
JOG: Jog operat ion
CM Input signal common
P6
P7
P8
MF input terminal
(factory setting)
VR 10V power s upply for potentiometer
V1 Freq. Setting V o ltage signal input: -0~10V
I F req. Setting Current signal i nput: 0~20mA
AM Multi-f unction analog output signal: 0~10V
3A A contact out put N.O.
3B B contact output N.C.
3C
Multi-functi on relay
output terminal
A/B contact common
S+
S-
RS485 communication terminal
G
# For connection to Remo te Op tion or
parameter copying
Preset Speed Input 1
Preset Speed Input 2
Preset Speed Input 3
