Parameter Descriptions 7-33
2 = User V/F is a custom volts per hertz pattern established using
parameters F31~F38.
F31 User V/F frequency 1
F33 User V/F frequency 2
F35 User V/F frequency 3
F37 User V/F frequency 4
Range: 0 - 400 [Hz]
Default: F31=15, F33=30, F35=45, F37=60
Access Configurable
See Also: P34, P35, F31-F38, H40
When F30 = 2, selects the frequency for each point in a custom volts per
hertz pattern.
F32 User V/F voltage 1
F34 User V/F voltage 2
F36 User V/F voltage 3
F38 User V/F voltage 4
Range: 0-100 [%]
Default: F32=25,F34=5-, F36=75, F38=100
Access Configurable
See Also: P34, P35, F31-F38, H40
When F30 = 2, selects the voltage for each point in a custom volts per hertz
pattern.

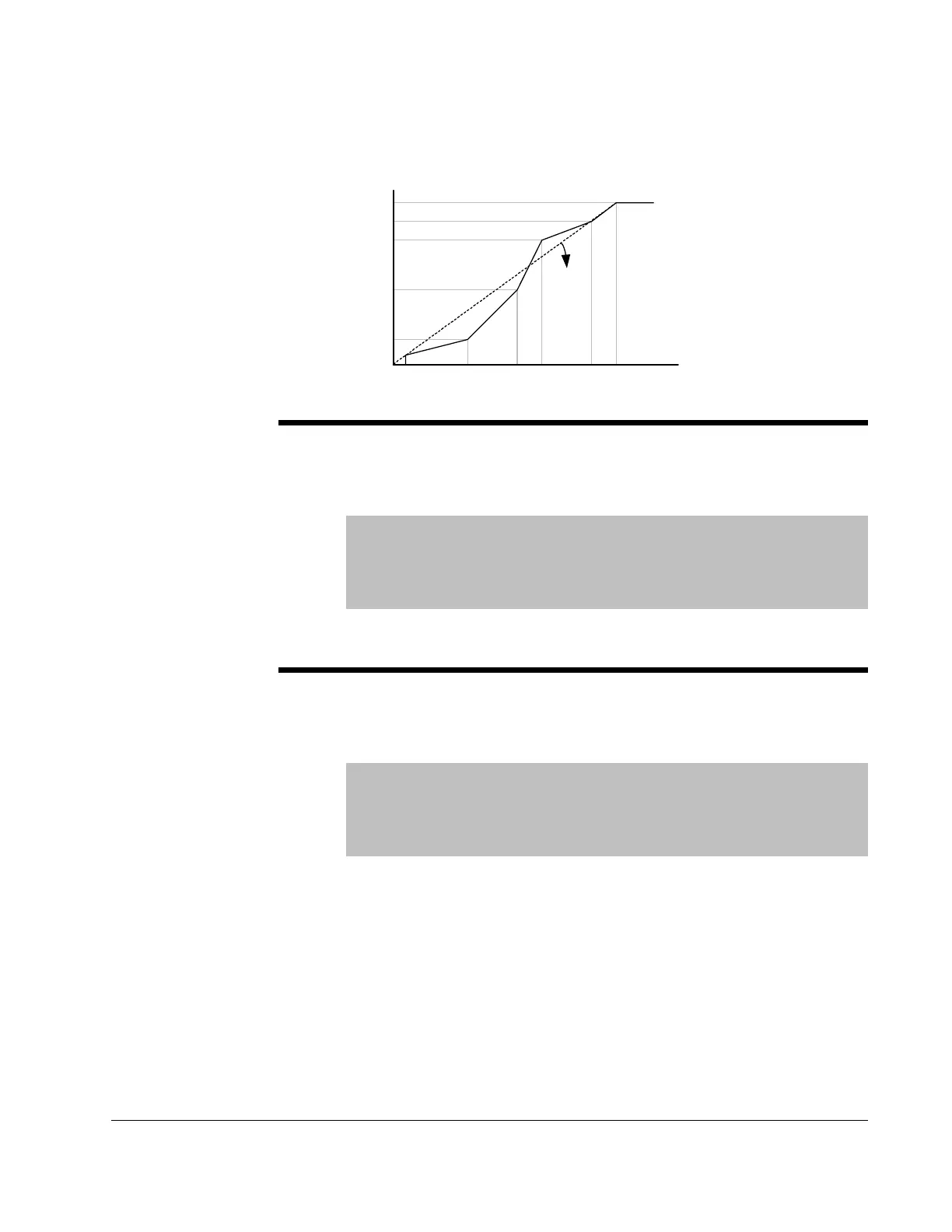

Freq
.
Voltage
Start
freq.
F31 F33 F35 F37
Base
freq.
F32
F34
F36
F38
100%
Linear
V/F
