7-36 VS1MD AC Drive User Manual
F54 Overload Warning Level
Range: 30-150 [%]
Default: 150
Access Tunable
See Also: P32, t32, t33, F55
Sets the amount of current to issue an alarm signal at a relay or digital
output terminal (see parameters t32 and t33). The value is set as a
percentage of P32 – Motor Rated Current.
Select an output terminal for this function between MO (Digital Output) and
3A~C (Relay Output). If selecting MO as the output terminal, set t32 = 5
(Overload: OL).
F55 Overload warning time
Range: 0-30 [sec]
Default: 10
Access tunable
See also: P32, t32,t33, F54

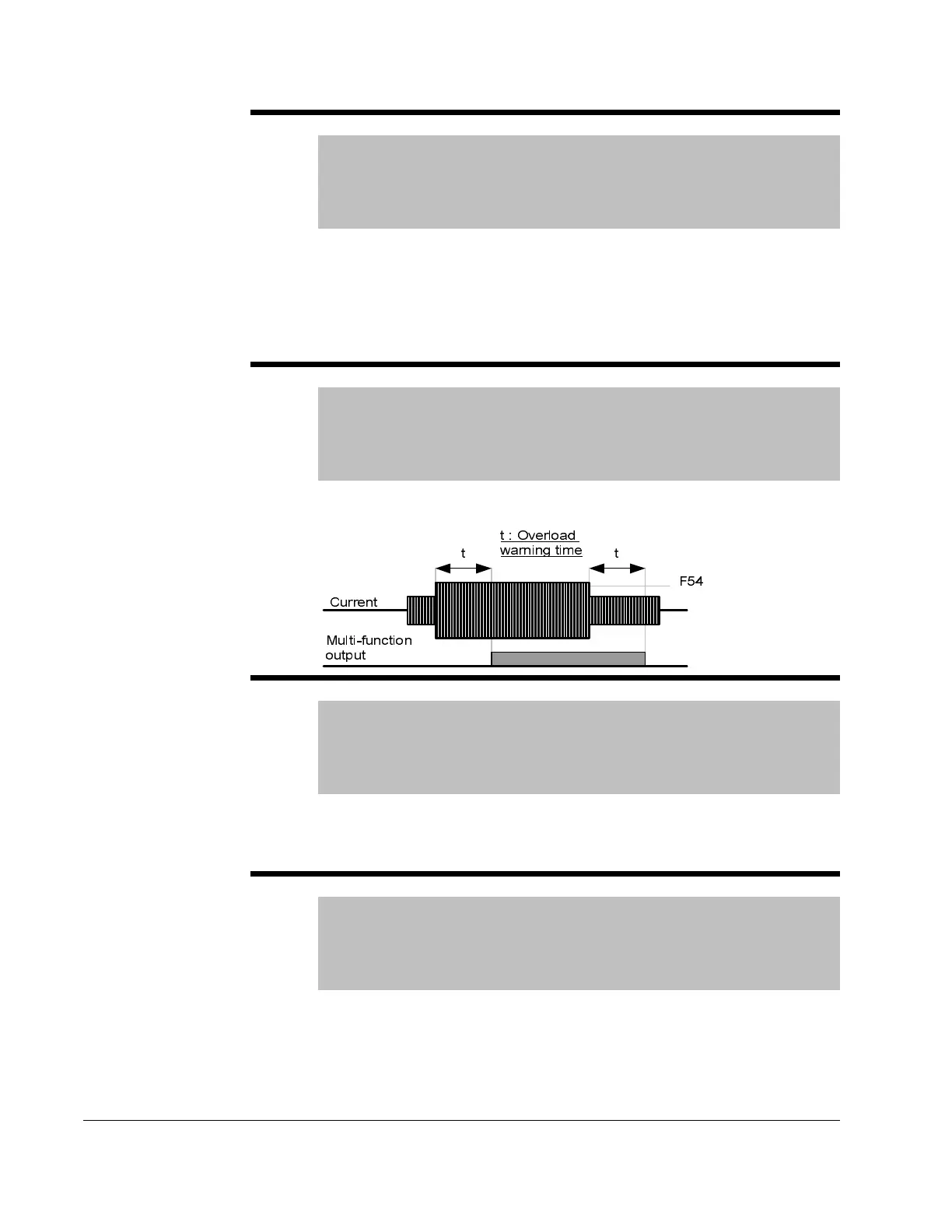

This parameter issues an alarm signal when the current greater than F54 –
Overload warning level flows to the motor for F55 – Overload warning time.
F56 Overload trip enable
Range: 0 - 1
Default: 1
Access Tunable
See Also: F57, F58
When set to a 1 = enabled, this parameter turns off the inverter output when
the motor is overloaded. Overload level and time are set in F57 and F58
respectively.
F57 Overload trip level
Range: 30-200 [%]
Default: 180
Access Tunable
See Also: P32, F56, F58
This parameter sets the amount of overload current before the drive trips.
The value is a percentage of P32 – Motor rated current.
000000000000000000000000000
00
00000000000000000000
00000
00
00000000000000000000
00000
000000000000000000000000000
0000000000000
0
0000000
00000
0000000000000
&XUUHQW
0XOWLIXQFWLRQ
RXWSXW
00000
00000
00000
)
W2YHUORDG
ZDUQLQJWLPH
WW
