Rapid Replacement Module
Micropulse Linear Position Transducers
Rapid Replacement Module
Micropulse Linear Position Transducers
Installation Guide for
Rapid Replacement Module

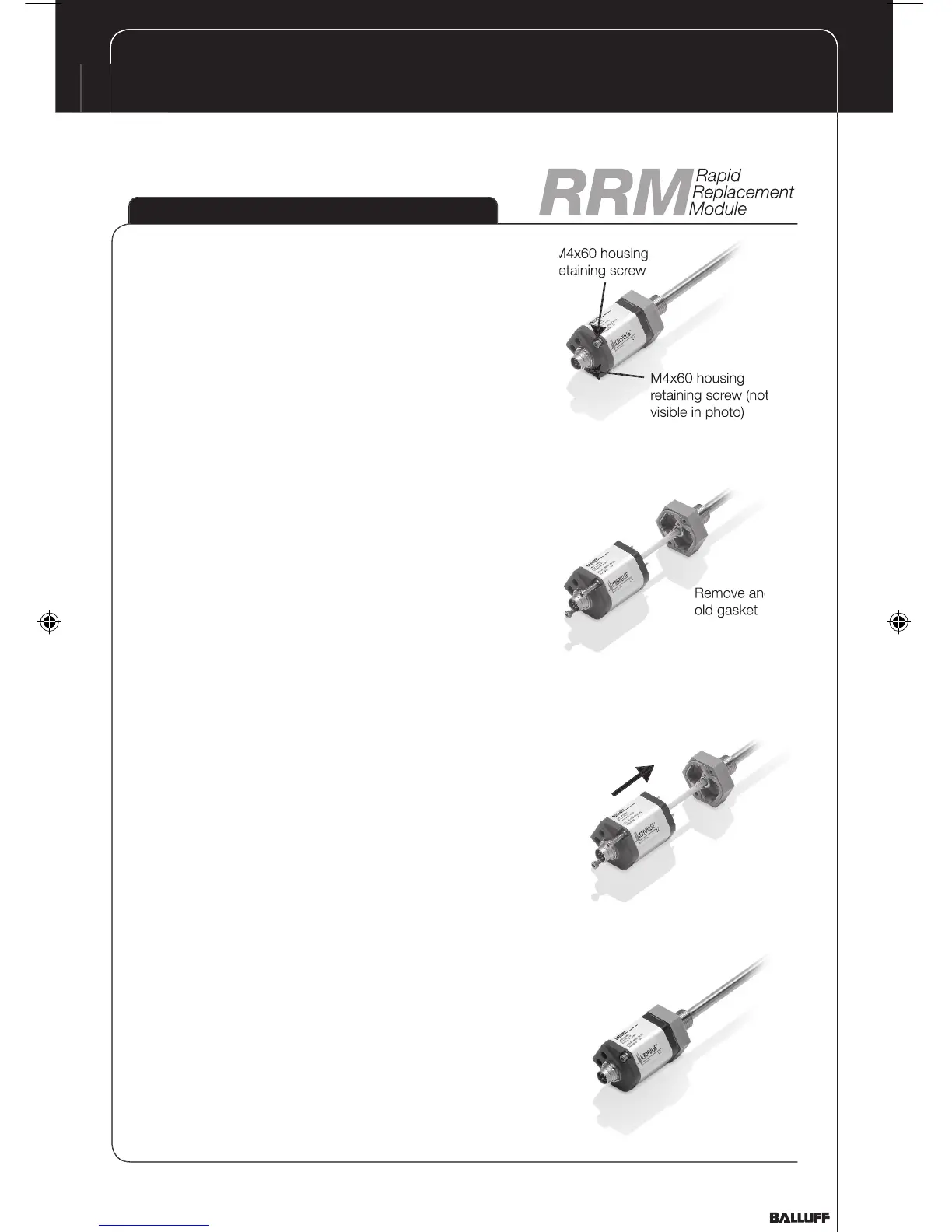

Removal and Replacement Procedure
: Using a 3 mm hex wrench, loosen
housing retaining screws.
: Carefully slide the electronics
module/sensor element assembly
out until the sensor element is free
from the pressure tube. Remove
and discard the existing housing
gasket. Replace gasket with the
: Carefully slide the new electronics
module/sensor element into the
pressure tube. Align the raised keys
on the pressure tube with the slots in
the face of the electronics module.
Do not force! Components should
: Tighten housing retaining screws securely.
