Asset Monitoring Gateway With SNAP ID Instruction Manual


3
•
•
Chapter Contents
Asset Monitoring Gateway (AMG) Hardware ...................................................................................................................................................... 3
Dimensions.......................................................................................................................................................................................................... 4

TheAssetMonitoringGateway(AMG)withSNAPIDprovidescommissioning,monitoring,andalarmsforupto20support
edModbus®andSNAPSIGNAL®enabledsensorsandconverters.Thegatewayscansforindividualsensorsorconverters
and auto-detects model information, allowing users to change and assign Modbus server ID numbers to commission custom
systems.
Identifieddevicesreportrelevantregisterdataeveryfiveseconds,providingthequickestpathtodatathatBannerEngineer
ingoffersforSNAPSIGNAL®andModbusequippedsensors.Connectedunitscanbegroupedandrenamed.Allrelevantin
put registers can have threshold alarms assigned to them individually. The alarm status is indicated both on-screen locally by
color and mirrored by the light on the enclosure.
Alldataandalarmsreceivedinthegatewaycanbeuploadedandautodetected(SNAPID)intheBannerCloudDataSer
vices(BannerCDS)websiteviaanEthernetorcellularconnection(requiresadditionalBannerCDSdataplan).
Formoreinformation,refertothefollowingdocumentsonwww.bannerengineering.com:
AssetMonitoringGatewaywithSNAPIDQuickStartGuide,p/n233717
AssetMonitoringGatewaywithSNAPIDBrochure,p/nb_51583459

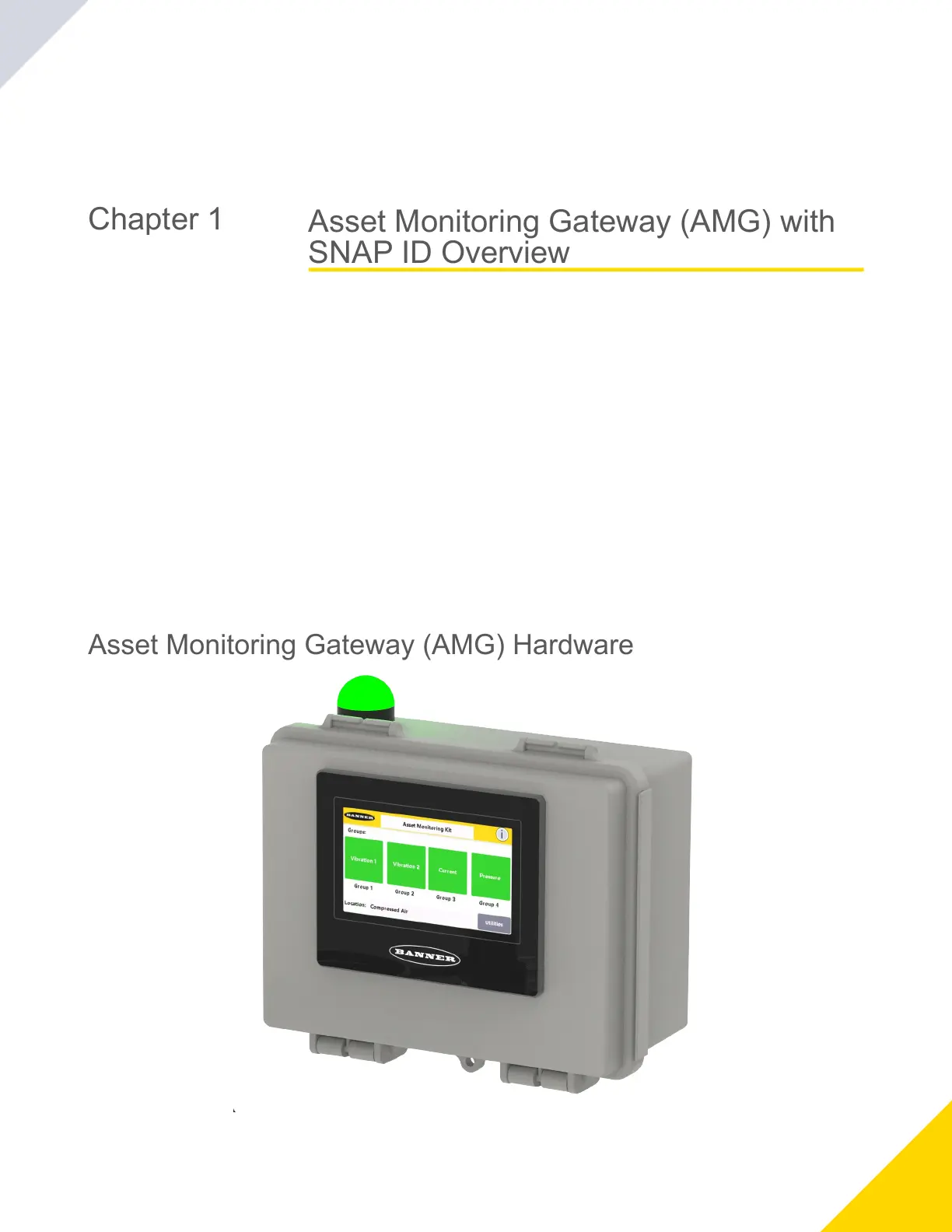

Asset Monitoring Gateway (AMG) Hardware
Asset Monitoring Gateway (AMG) with
SNAP ID Overview
Chapter 1
