ChangethelocationnamebytappingthemenuentryEnter Locationandenteringavalidlocation.SelecttheUtilitiesmenuto
bring up the main configuration and gateway information window.
Commission and Assign Connected Sensors or Converters
AftertheAMGhasinitialized(aboutoneminute),touchtheUtilitiesiconinthelowerrightcornerofthemainpageto
go to the main configuration/device information menu.

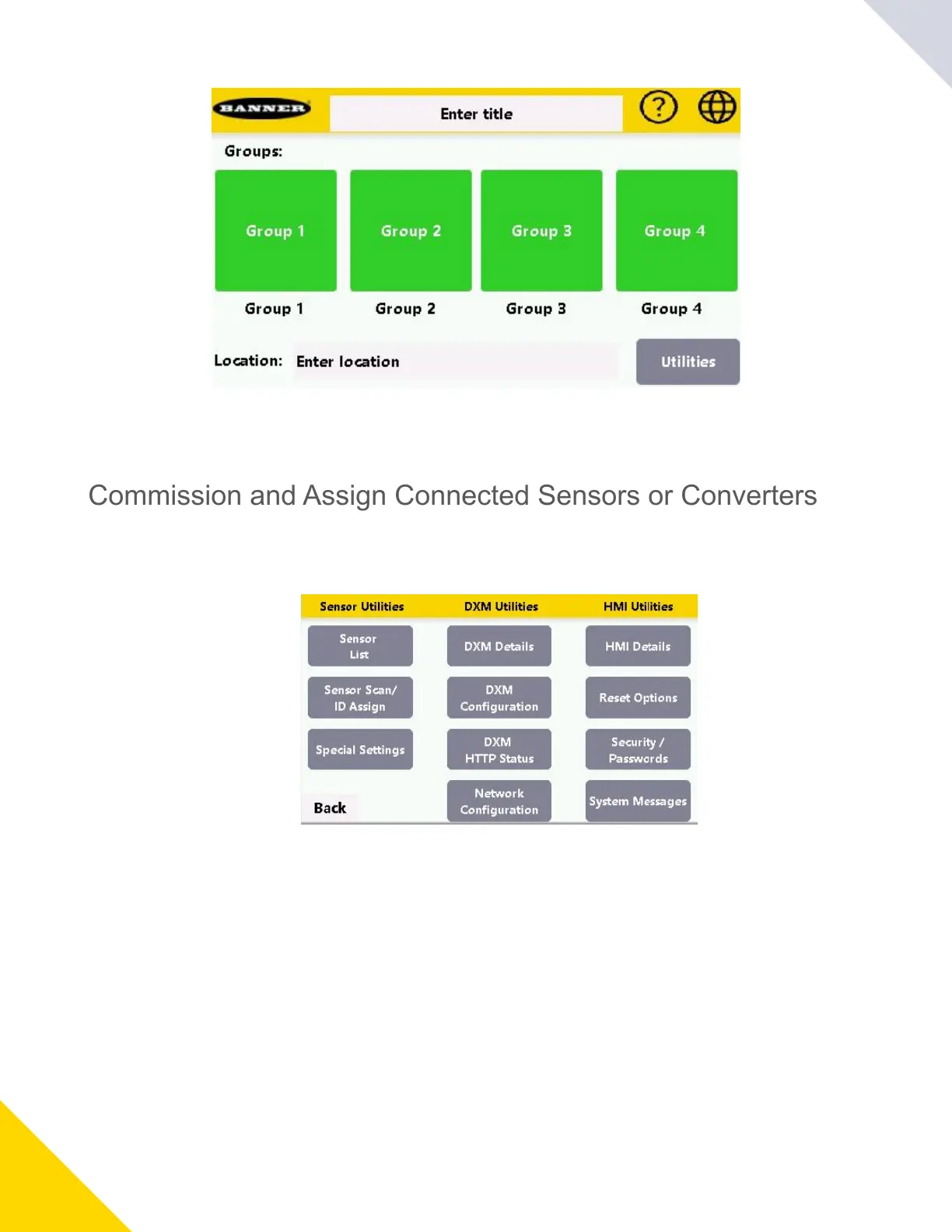

Utilities screen
1.
IntheSensor Utilitiescolumn,touchSensor Scan/ID Assign.
TheSensortablewillinitiallybeunpopulated.
2.
Connect any supported Banner Modbus sensor or S15 converter using a splitter cable or hub with power connected
to the homerun cable and a branch connected to the Gateway M12 connector on the bottom right of the enclosure.
SeetheAssetMonitoringGatewaywithSNAPIDBrochure,p/nb_51583459forlistsofsupportedS15converters,
Modbus sensors, and accessories.
3.
SelectScan IDsandtouchYESwhenpromptedtoconfirm.
4.
