Asset Monitoring Gateway With SNAP ID Instruction Manual


9
Chapter Contents
Sensor List Screens ............................................................................................................................................................................................ 9
Special Sensor Settings Screen........................................................................................................................................................................ 12
DXM Utilities Screens........................................................................................................................................................................................ 16
HMI Utilities Screen........................................................................................................................................................................................... 17

ThefollowingsectionsexplainthefunctionofeachscreenintheSensor UtilitiescolumnoftheUtilities Menuscreen.
Sensor List Screens
SelecttheSensor Listbuttontoopenthelistofcommissionedsensors/converters.UsetheBackbuttontoreturntotheprevi
ous screen.

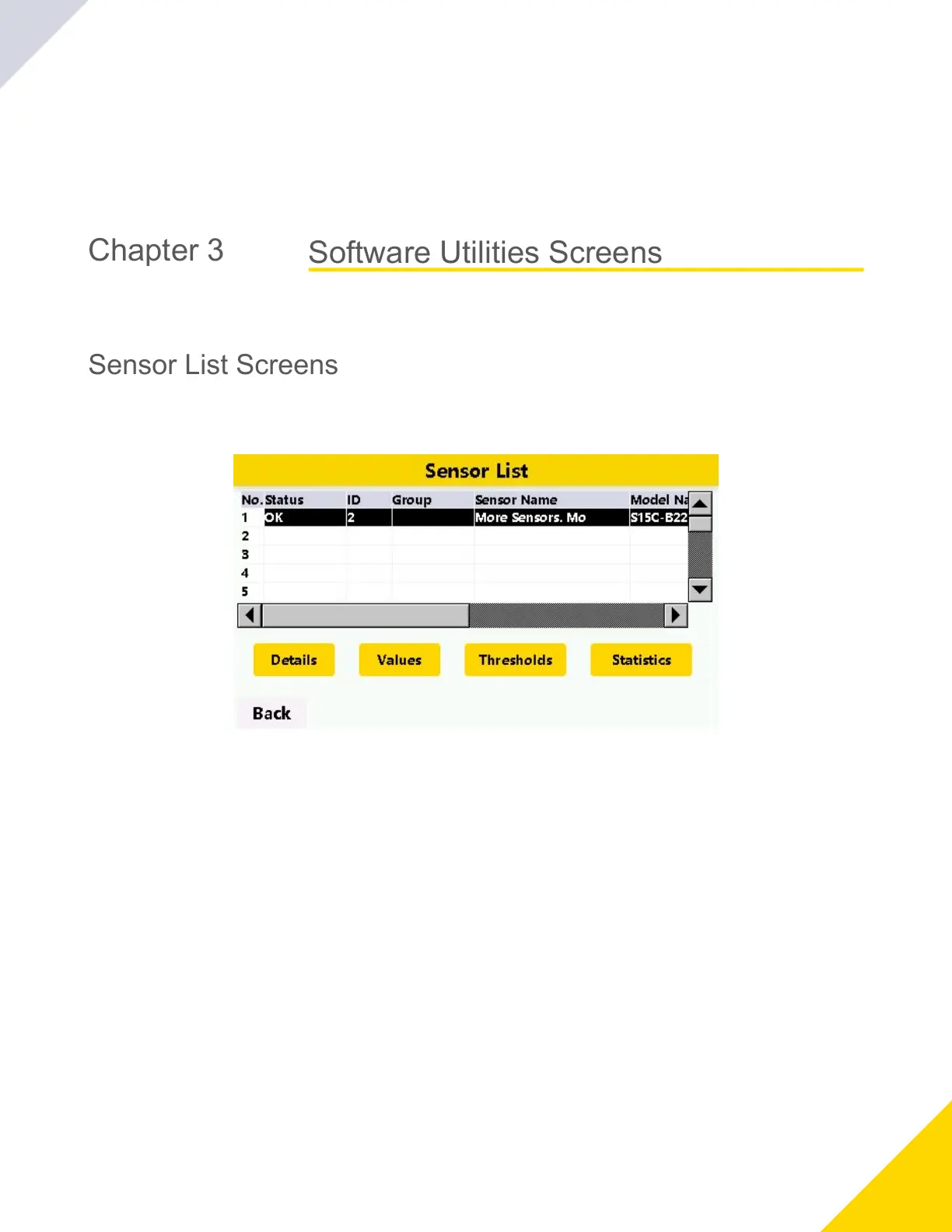

Sensor List screen
Status
OKindicatestheconnecteddeviceisactiveandbeingmonitored.
Commsindicatesthesensorisdisconnectedorhasacommunicationsissue.
Thrhld1orThrhld2indicatesanactivethresholdalarm,dependingonthealarmthatistriggered.
ID
Displays the current device Modbus Server ID
Group
Ifthesensorisgroupedinthemaindisplayscreen,Groupdisplaysthatdevice'scurrentgroup(numbered14).
Toaddasensortoagroup,pickagroupiconfromthemainpageandselectEdit Group #. Highlight the device you'd like
toaddtothegroupandselectAdd To Group.
Todeleteadevicepreviouslycommissionedintoagroup,selectthedeviceandselectDelete From Group.
Sensor Name
AcustomizableentryaccessedusingtheDetailsbutton.
Model Name
TheBannerpartnumbernomenclaturefortheattacheddevice.
Sensor Type
Displaysthemodeofsensing.
Software Utilities Screens
Chapter 3
