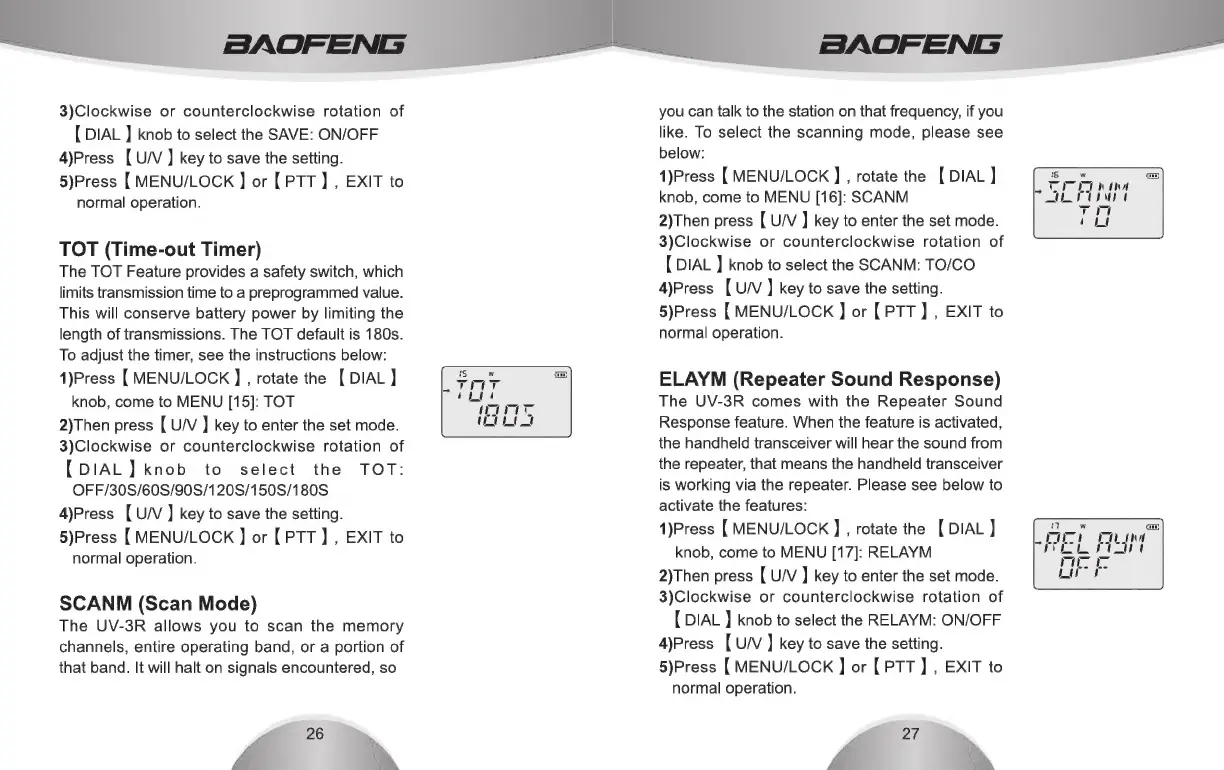

Baofeng UV-3R+ - Page 17

a BAOFENG
3)Clockwise or counterclockwise rotation of
[ DIAL ] knob to select the SAVE: ON/OFF
4)Press [ U/V ] key to save the setting.
5)Press [ MENU/LOCK ] or [PTT] , EXIT to
normal operation.
TOT (Time-out Timer)
The TOT Feature provides a safety switch, which
limits transmission time to a preprogrammed value.
This will conserve battery power by limiting the
length of transmissions. The TOT default is 180s.
To adjust the timer, see the instructions below:
1)Press [ MENU/LOCK ] , rotate the [ DIAL ]
knob, come to MENU [15]: TOT
2)Then press [ U/V ] key to enter the set mode.
3)Clockwise or counterclockwise rotation of
[DIAL] knob to select the TOT:
OFF/30S/60S/90S/120S/150S/180S
4)Press [ U/V] key to save the setting.
5)Press [ MENU/LOCK ] or [PTT] , EXIT to
normal operation.
SCANM (Scan Mode)
The UV-3R allows you to scan the memory
channels, entire operating band, or a portion of
that band. It will halt on signals encountered, so
26
£ N
nor
ENG
you can talk to the station on that frequency, if you
like. To select the scanning mode, please see
below:
1)Press [ MENU/LOCK ] , rotate the [ DIAL }
knob, come to MENU [16]: SCANM
2)Then press [ U/V ] key to enter the set mode.
3)Clockwise or counterclockwise rotation of
{ DIAL } knob to select the SCANM: TO/CO
4)Press [ U/V ] key to save the setting.
5)Press [ MENU/LOCK ] or [PTT] , EXIT to
normal operation.
ELAYM (Repeater Sound Response)
The UV-3R comes with the Repeater Sound
Response feature. When the feature is activated,
the handheld transceiver will hear the sound from
the repeater, that means the handheld transceiver
is working via the repeater. Please see below to
activate the features:
1)Press [ MENU/LOCK ] , rotate the [ DIAL ]
knob, come to MENU [17]: RELAYM
2)Then press [ U/V key to enter the set mode.
3)Clockwise or counterclockwise rotation of
{ DIAL } knob to select the RELAYM: ON/OFF
4)Press [ U/V ] key to save the setting.
5)Press [ MENU/LOCK ] or [PTT] , EXIT to
normal operation.
27
