Barco ClickShare CSE-200+ User Manual

R5900086 /07 ClickShare CSE-200+36
3.1 Activating the Base Unit
About power mode
The Base Unit is powered via an external power adapter. Once connected, the Base Unit is automatically
switched in standby mode. For more information about power connection, see CSE-200 +'s installation
manual.

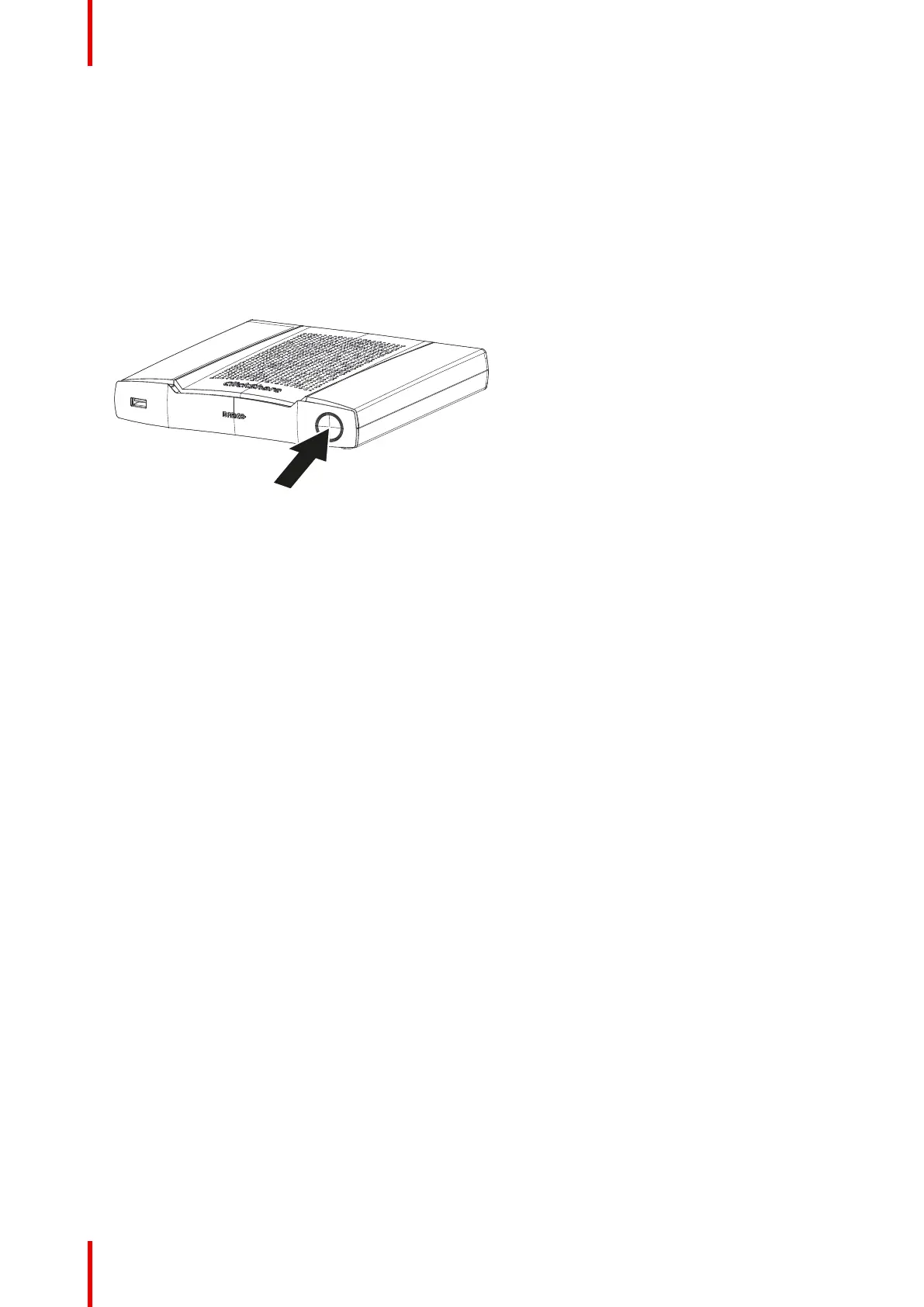

Standby button
1. Push the button shortly.
Image 3–1 Standby button
When the Base Unit was on, it goes to standby.
When the Base Unit was in standby, it starts up.
3.2 Basic Use, with Button
Basic functionality
When entering a meeting room equipped with ClickShare and if the display is not in screensaver mode, the
ClickShare wallpaper is shown on the display. The content of the wallpaper depends on the setup.
Starting to use ClickShare is now very simple.
To start using ClickShare with a Button
1. Take a Button and Insert the Button into a USB port of your laptop. Depending on the USB port on your
laptop and/or on the USB connector of the Button, a convertor must be used. This convertor is not
delivered by Barco.
Getting started

Barco ClickShare CSE-200+ Specifications

General

Wireless Frequency Band	2.4 GHz and 5 GHz
Video Outputs	HDMI
Number of Sources Simultaneously on Screen	2
Native Protocols	AirPlay, Google Cast, Miracast
Wireless Sharing	Yes
Resolution	Up to 4K UHD (3840x2160)
Security	WPA2
Compatibility	Windows, macOS, iOS, Android
Operating System	Windows, macOS, iOS, Android
Frame Rate	30 fps
Output Resolution	Up to 4K UHD (3840x2160)
Audio	HDMI audio
USB	USB-A
ClickShare Buttons	2
Authentication Protocol	WPA2
Wireless Transmission Protocol	IEEE 802.11ac
Reach	30 meters
Maximum Number of Presenters	8
Connection Type	Wireless
Resolution Support	Up to 4K UHD (3840x2160)
