Barco ClickShare CSE-200+ User Manual

45R5900086 /07 ClickShare CSE-200+

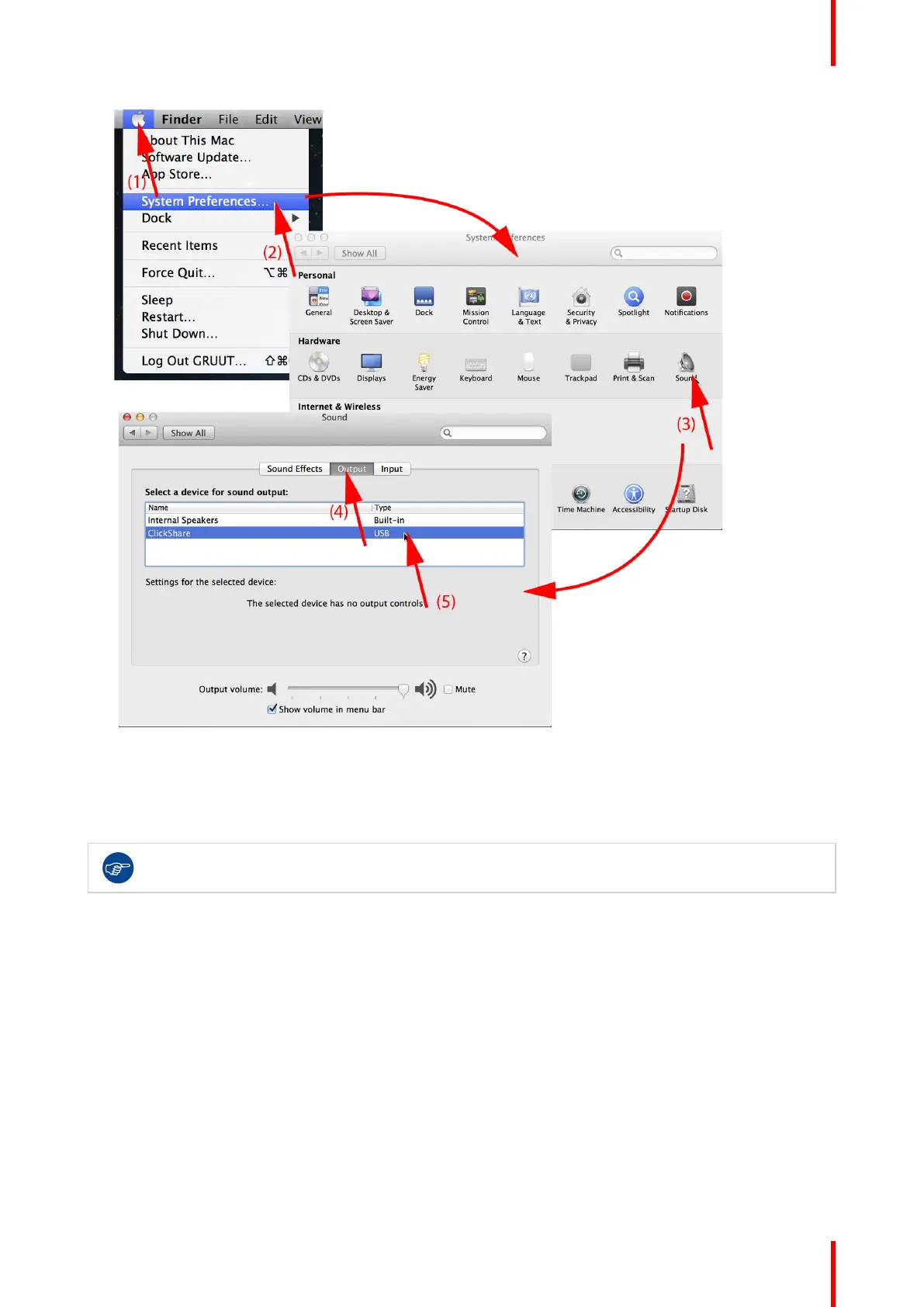

Image 3–21 Speakers ClickShare, default
2. Click on the Speaker icon (3).
The Sound window opens.
3. Select the Output tab (4) and activate ClickShare (5).
Short way to select ClickShare as audio device: Click with the mouse on the Speaker symbol in the
menu bar while holding ALT. ClickShare will be visible as an option.
3.7 Pairing
Pairing of the Buttons with the Base Unit
To be able to use a Button it should be assigned to the Base Unit you are using. This process is called pairing.
By default, the Button(s) delivered with the Base Unit are already paired to that specific Base Unit.
In case you buy additional Buttons or when a Button should be assigned to another Base Unit, the Button
needs to be paired (again). The Button software update runs in the background and will not impact users while
using the system. When downgrading or updating to an older version of the Base Unit software the Buttons
need to paired manually to update their software and that only in case the Button update over Wi-Fi is
disabled.
Getting started

Barco ClickShare CSE-200+ Specifications

General

Wireless Frequency Band	2.4 GHz and 5 GHz
Video Outputs	HDMI
Number of Sources Simultaneously on Screen	2
Native Protocols	AirPlay, Google Cast, Miracast
Wireless Sharing	Yes
Resolution	Up to 4K UHD (3840x2160)
Security	WPA2
Compatibility	Windows, macOS, iOS, Android
Operating System	Windows, macOS, iOS, Android
Frame Rate	30 fps
Output Resolution	Up to 4K UHD (3840x2160)
Audio	HDMI audio
USB	USB-A
ClickShare Buttons	2
Authentication Protocol	WPA2
Wireless Transmission Protocol	IEEE 802.11ac
Reach	30 meters
Maximum Number of Presenters	8
Connection Type	Wireless
Resolution Support	Up to 4K UHD (3840x2160)
