• 2.5mm Allen wrench.
How to remove the xenon lamp out of the manual S/M Lamp House?

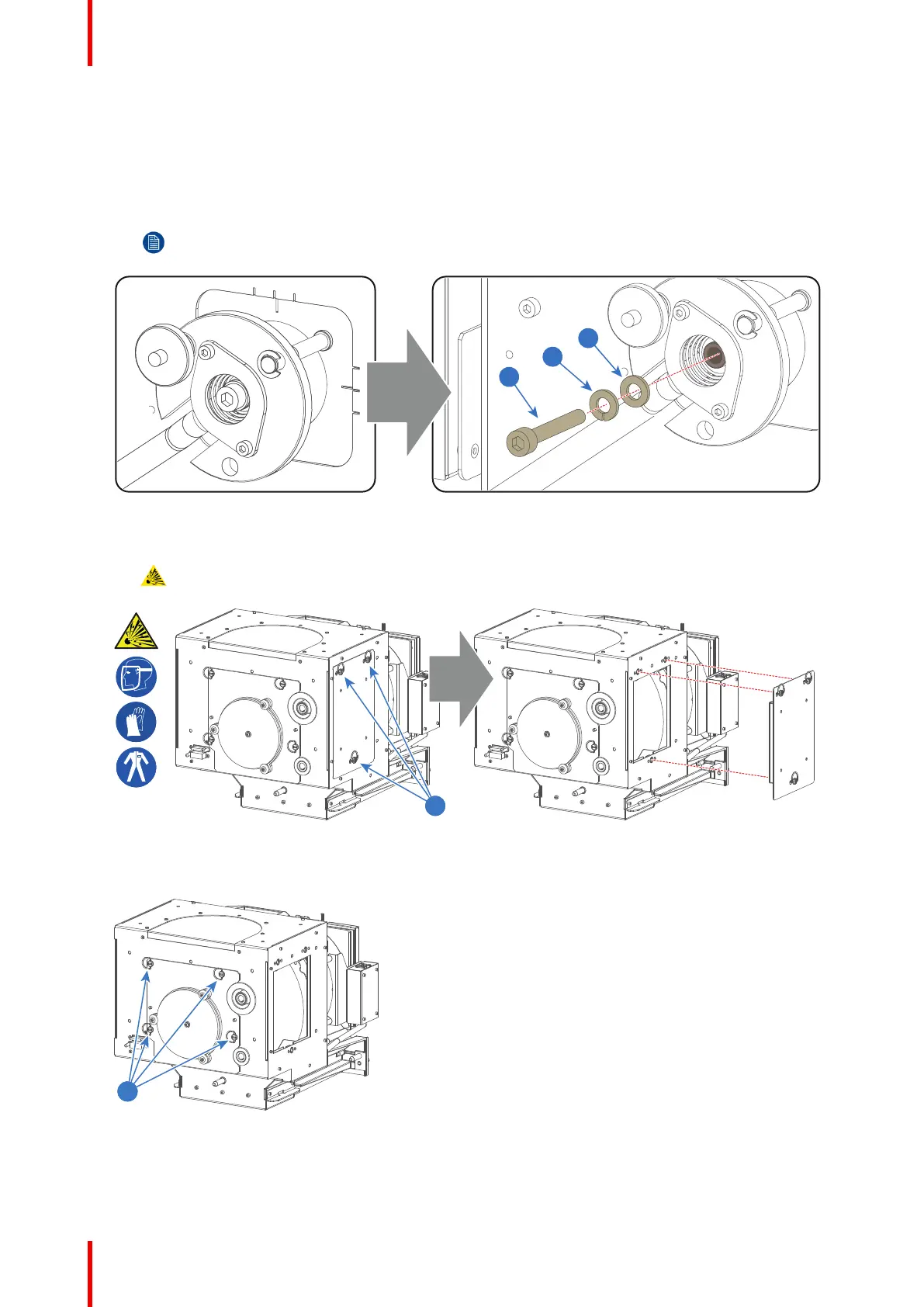

1. Remove the hexagon socket head cap screw (reference 1 Image 4–6) which fasten the cathode of the
xenon lamp. Use a 5 mm Allen wrench. Do not release the cathode wire lug. The screw contains a spring
washer and a plain washer (reference 2 & 3 Image 4–6).
Note: The cathode wire remains in its position after the screw and two washers are removed.
Image 4–6
2. Remove the side cover of the Lamp House by releasing the three quarter turn screws (reference 4
Image 4–7) of the side cover as illustrated.
Caution: Ensure that you wear protective clothing, a full face shield and protective gloves.
Image 4–7
3. Release the four quarter turn screws (reference 5 Image 4–8) of the UV blocker assembly as illustrated.
Make sure that the anode support remains in its position while releasing the screws.
Image 4–8
4. Support the xenon lamp inside the Lamp House with one hand while removing the UV blocker assembly
from the lamp house.
