45R5905753 /17 DPxK-19B/23B/P
Warning: Supporting the xenon lamp with one hand prevents the xenon lamp from dropping and
colliding with the chassis of the Lamp House.

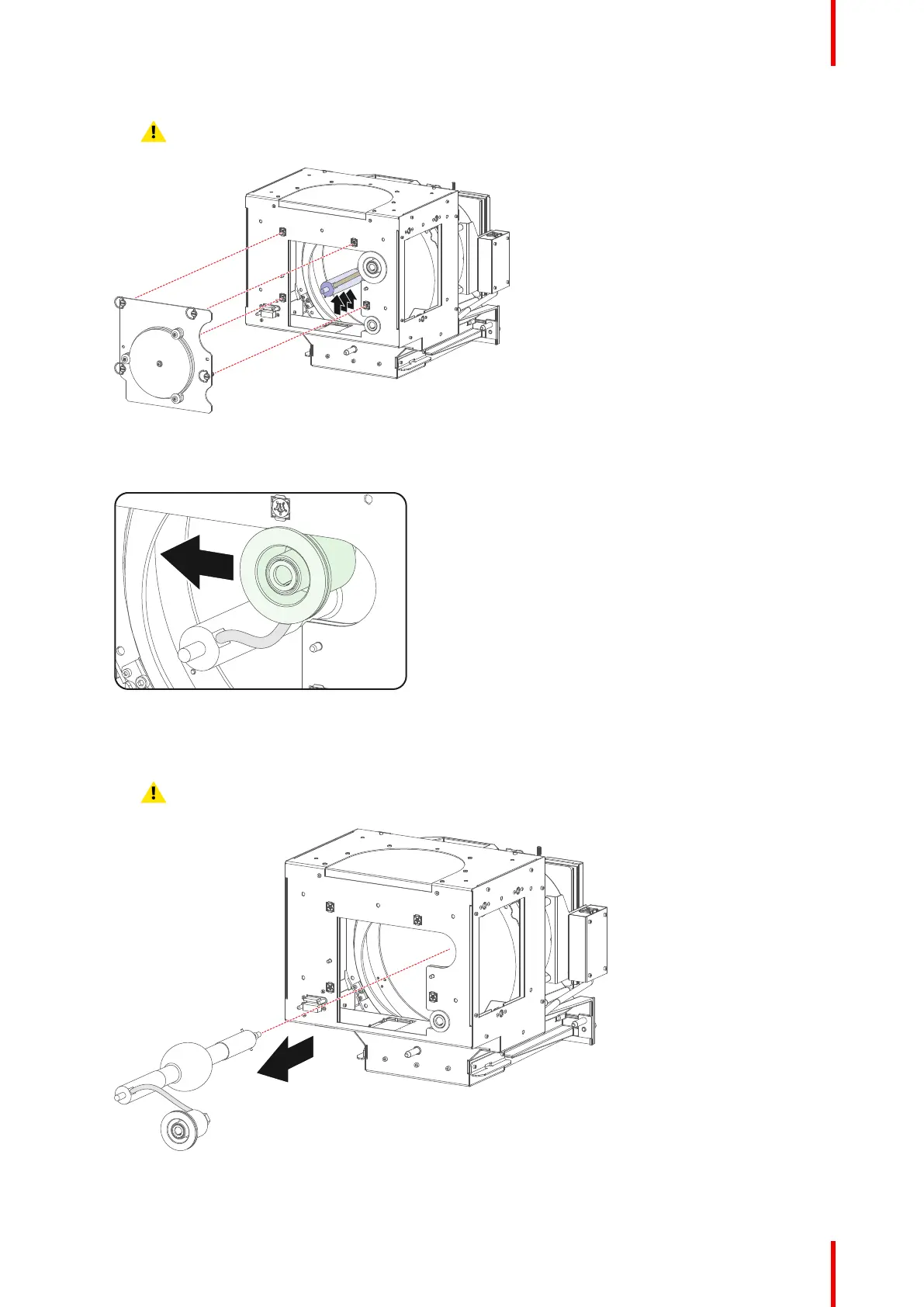

Image 4–9
5. Slide out the anode connector from the Lamp House. The anode connector remains attached with the
lamp anode wire.
Image 4–10
6. Gently remove the xenon lamp together with the anode socket out of the Lamp House. Do not use
excessive force upon the xenon lamp. Normally the xenon lamp will easily slide out the cathode socket of
the Lamp House.
Warning: Supporting the xenon lamp with one hand while pulling it out with other hand prevents
it from bumping against the chassis of the Lamp House.
Image 4–11
Lamp & Lamp House
