7. Place the xenon lamp in its protective container or wrap the xenon lamp in a protective cloth and secure
with two binders.

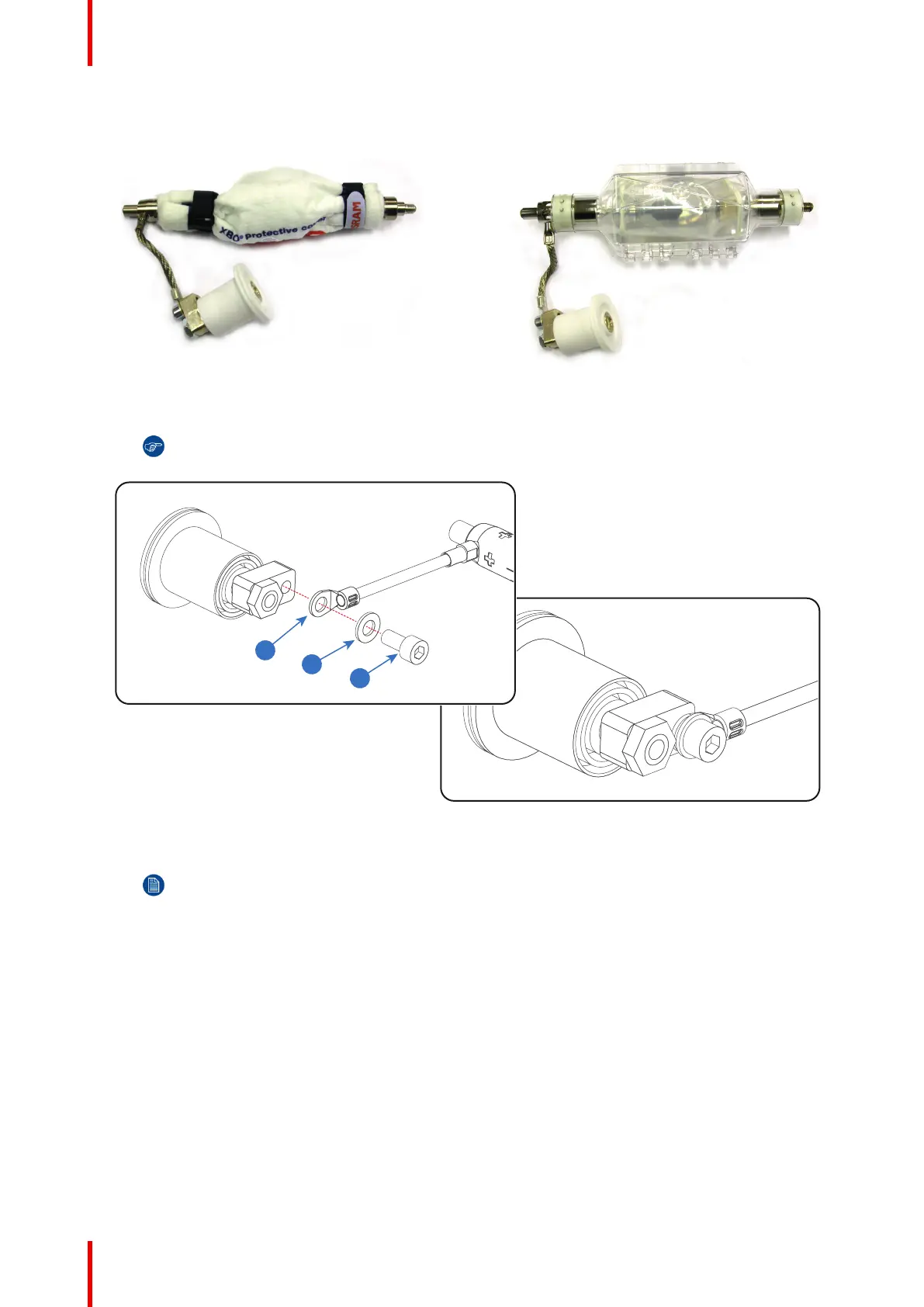

Image 4–12 Left: Xenon lamp wrapped in a protective cloth. Right: Xenon lamp captured in a protective container.
8. Remove the anode wire lug (reference 6 Image 4–13) from the anode socket as illustrated. Use a 8mm
Allen wrench.
Tip: Place the flat washer and bolt (reference 7 & 8 Image 4–13) back on its place after the lug is
removed.
Image 4–13
9. Remove the cathode adapter from the xenon lamp by releasing the hexagon socket head cap screw
(reference 9 Image 4–14) of the adapter as illustrated. Use a 5mm Allen wrench.
Note: Some xenon lamps have a cathode pin with screw threat (reference 10 Image 4–14).
