Barco DP2K-12C - LED Indications on the Integrated Cinema Processor Module

6. Input & communication
Input
Source
standard
Vertical rate
Scan type Color space Sampling Color depth
Single DVI VES A (640x480)
72 Progressive
RGB
4:4:4 8 bit
Single DVI VES A (800x600)
60 Progressive
RGB
4:4:4 8 bit
Single DVI VES A (800x600)
72 Progressive
RGB
4:4:4 8 bit
Single DVI VESA
(1024x768)
60 Progressive
RGB
4:4:4 8 bit
Single DVI VESA
(1024x768)
70 Progressive
RGB
4:4:4 8 bit
Single DVI VESA
(1280x1024)
60 Progressive
RGB
4:4:4 8 bit
Single DVI
1280x720 60 Progressive
RGB
4:4:4 8 bit
Single DVI
1920x1080 60 Progressive
RGB
4:4:4 8 bit
Single DVI
2048x1080
50/60
Progre ssive
RGB
4:4:4 8 bit
Single DVI
1920x1080i
50/60
Interlaced
RGB
4:4:4 8 bit
Twin DVI
ACS
(2048x1080)
50/59.94
Progre ssive
RGB
4:4:4 10 bit
Twin DVI
ACS
(2048x1080)
50/59.94
Progre ssive
RGB
4:4:4 12 bit
Twin DVI
3D (2 048x1080)
24 Progressive
RGB
4:4:4 2x8 bit
Twin DVI
3D (2 048x1080)
25 Progressive
RGB
4:4:4 2x8 bit
Twin DVI
3D (2 048x1080)
30 Progressive
RGB
4:4:4 2x8 bit

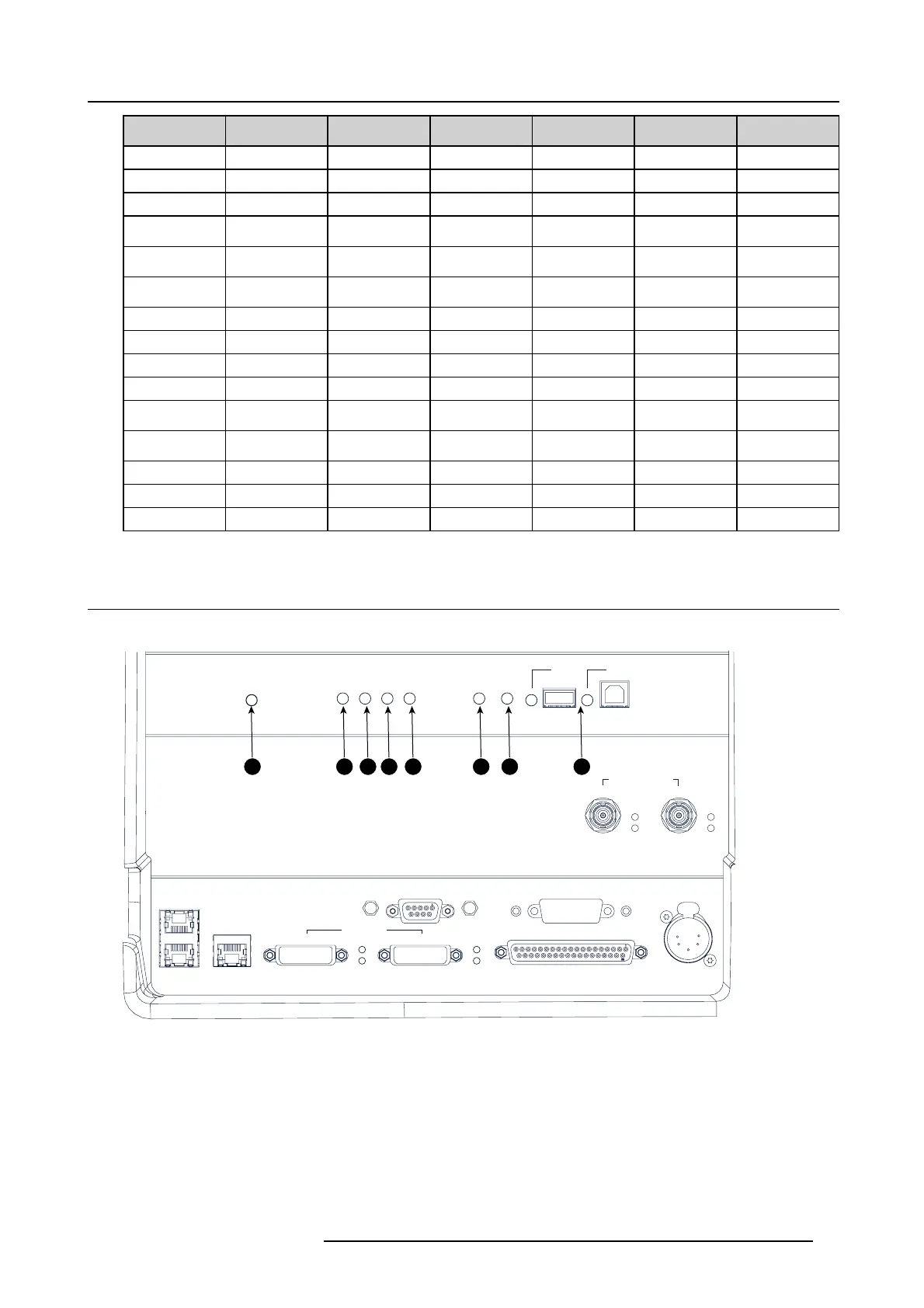

6.5 LED indications on the Int egrated Cinema Processor module
About the LEDs
GENERAL PURPOSE IN/OUT
DVI A DVI B
DVI INPUT
SEL
SYNC OK
SEL
SYNC OK
10 / 100 / 1000 BASE-T
RS232 IN 3D INTERFACE PERIPHERAL PORT
SMPTE 292/424 IN
AB
SEL
SYNC OK
SEL
SYNC OK
1
2
3
ICP
POWER
SW
STAT
OS
STAT
FMT
STAT
ICP
STAT
CINEMA
ALT
CONT
USB
OUT
USB
IN
1
2
3
4
5
6 7 8
Image 6-5
1
ICP is powered.
2
ICP software state, normal operation is green blinking.
3
ICP operating system state, normally full green.
4
ICP FMT configuration state, norm ally full gre en.
5
ICP MAIN configuration state, normally full green.
6
CINEMA port selected. W hen on, LE D 7 will be out.
