10. Removal and installation of projector covers
How to remove the rear cover from the projector?

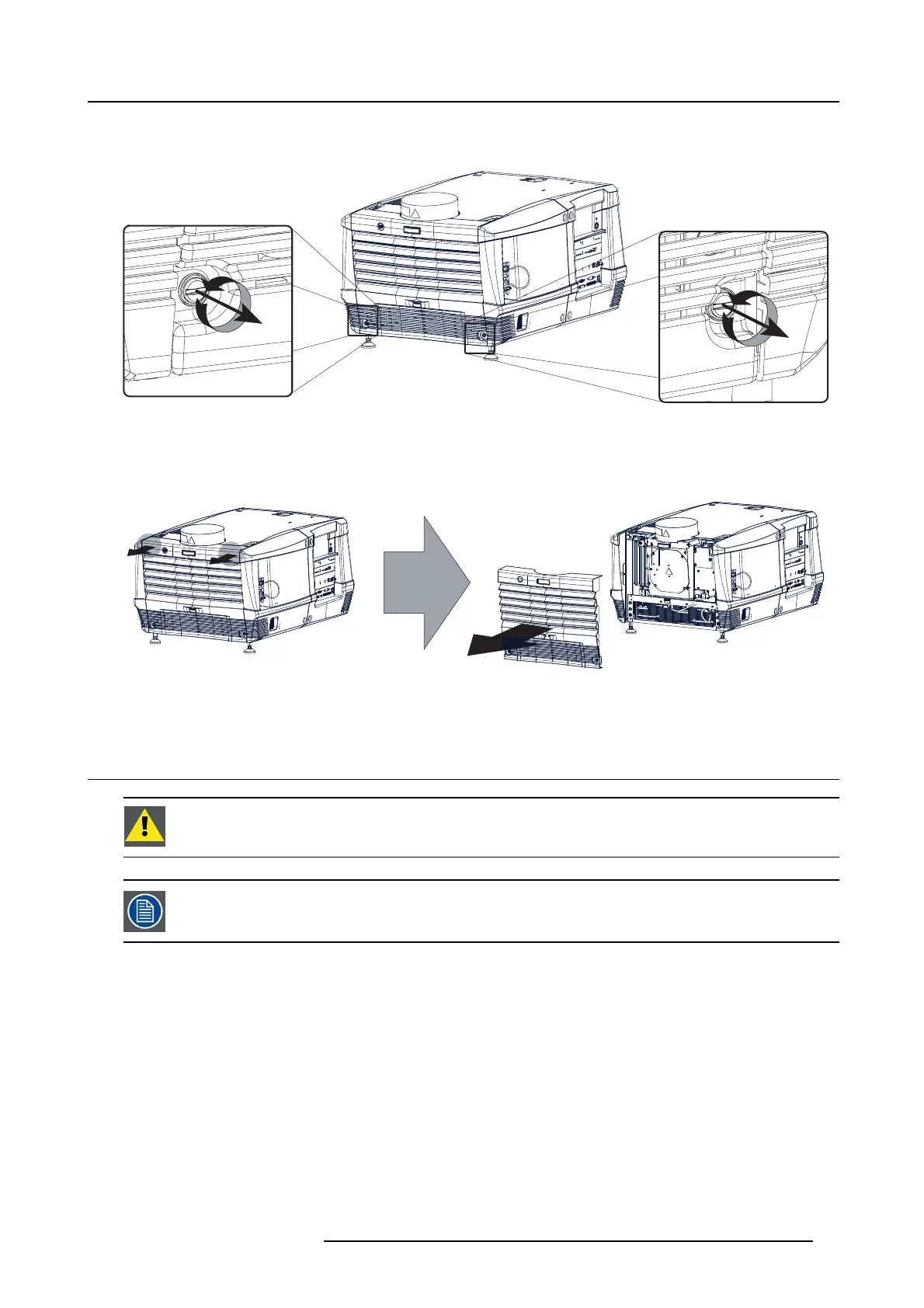

1. Release the two captive screws at the bottom c orners of the rear cove r, using a flat screw driver.
Image 10-9
Release rear cover
2. Remove the rear cover of the projector doing the following:
a) gently pull out the top corners of the r ear cover,
b) then move the rear cover away from the projector.
A
A
B
Image 10-10
Remove rear cover
10.6 Removal of the top cover
WARNING: This procedure may only be performed by qualified technical service personnel.
All side covers, front cover an d back cover have to be removed before removing the top co ver.
Necessary tools
Allenkey3mm
How to remove the top cover of the projector?
1. After a ll side covers, front and back cover are rem oved, turn a ll 3 fixa t io n screws.
R5905050 DP2K C-SERIES 10/07/2012
71
