Barco DP2K C User Manual

R5905752 /16 DP2K C124
10.1 Removal of the lamp cover
WARNING: This procedure may only be performed by qualified technical service personnel.
Required tools
Flat screw driver.

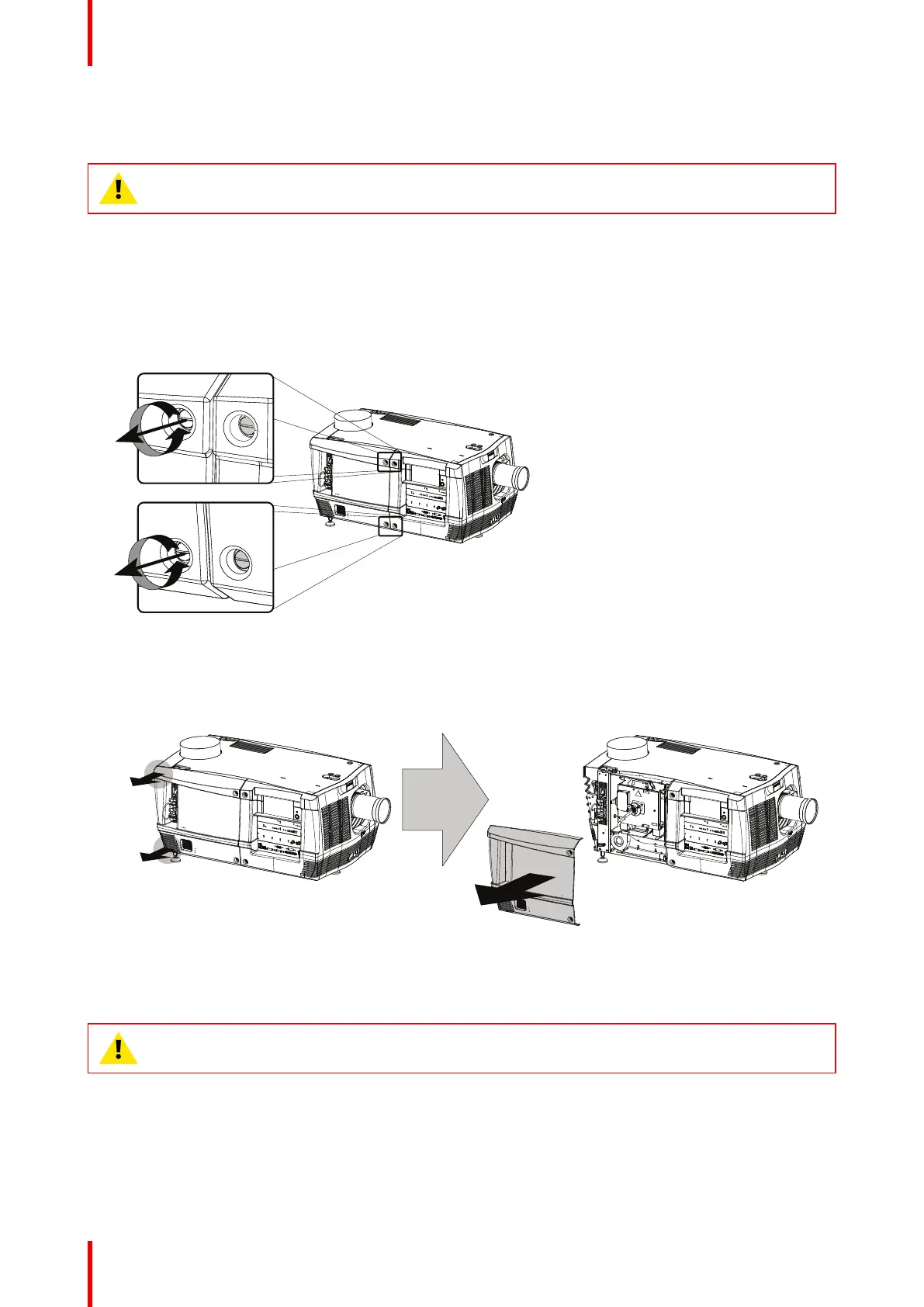

How to remove the lamp cover of the projector?
1. Release the two captive screws at the right side, top and bottom, of the lamp cover, using a flat screw
driver.
Image 10–1 Release lamp cover
2. Remove the lamp cover from the projector doing the following:
1. gently pull out the left bottom corner (A) of the lamp cover,
2. then gently pull out the left top corner (B) of the lamp cover,
3. then move the lamp cover away from the projector (C).
B
A
C
Image 10–2 Remove lamp cover
10.2 Removal of the input cover
WARNING: This procedure may only be performed by qualified technical service personnel.
Required tools
Flat screw driver.
Removal and installation of projector covers
