131
R5905752
/16
DP2K
C
10.9
Installation
of
the
top
cover
Required
tools
Allen
key
3
mm
How
to
install
the
top
cover
of
the
projector?

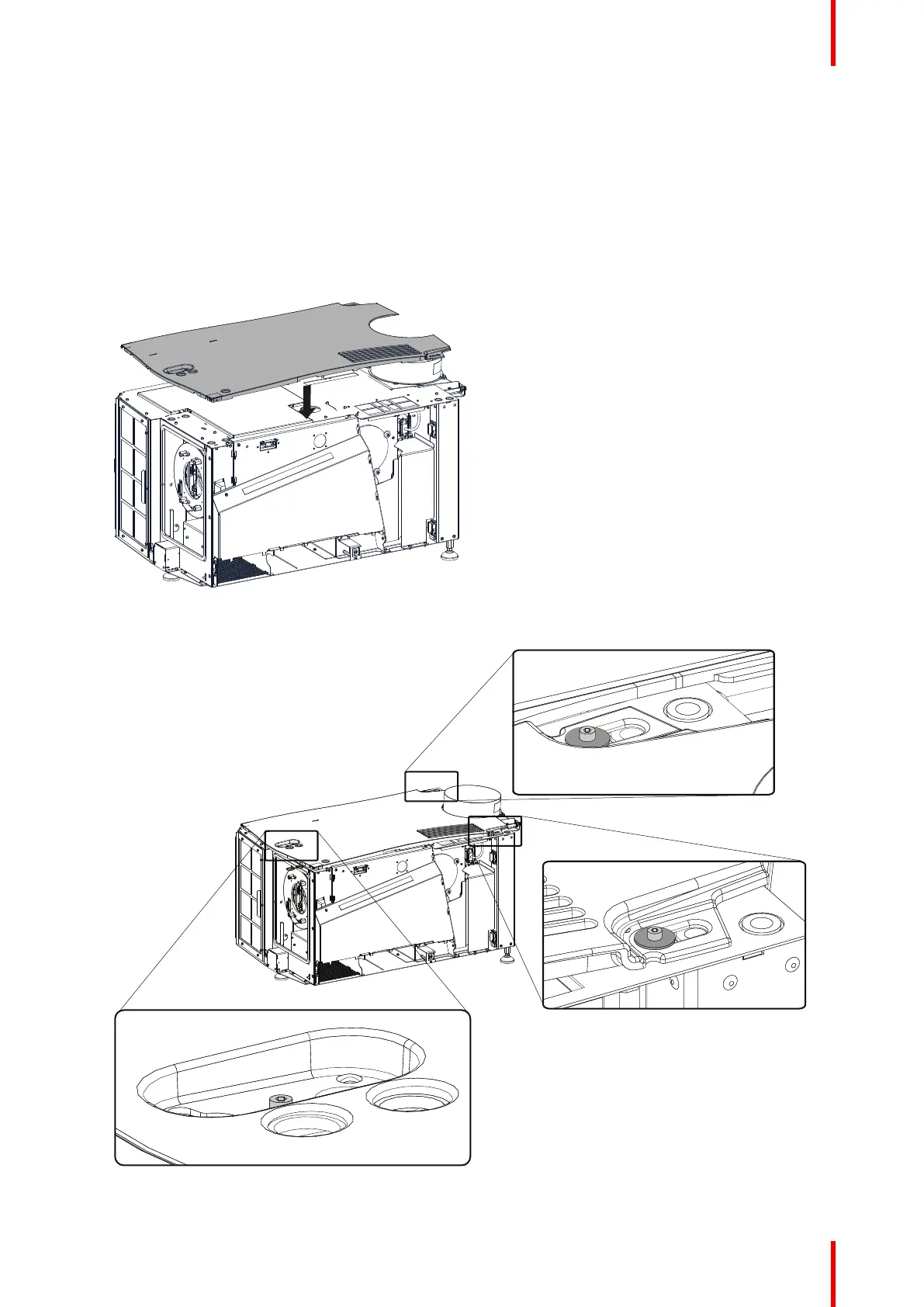

1.
Place
the
top
cover
on
the
projector
so
that
both
holes
matches
the
adjustment
studs
on
top
of
the
projector
.
10
–
17
Mount
top
cover
2.
Turn
all
3
fixation
screws.
Insert
the
washer
between
the
screw
and
the
top
cover
.
10
–
18
Fixate
top
cover
Removal
and
installation
of
projector
covers
130
132
