129R5905752 /16 DP2K C

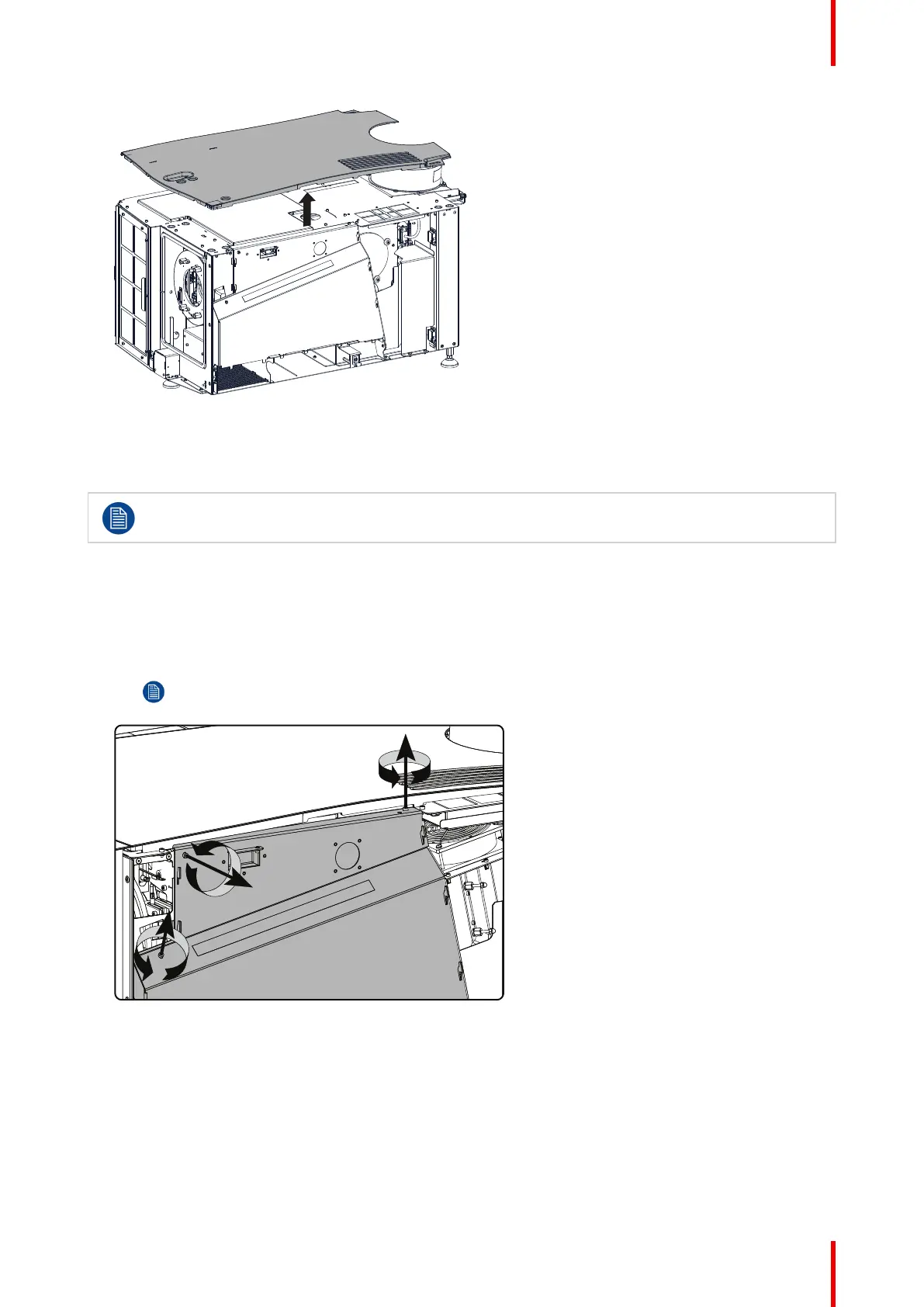

Image 10–12 Top cover removal
10.7 Open the sealed compartment
This procedure assumes that the left side cover of the projector is already removed.
Required tools
Allen wrench 3 mm
How to open the sealed compartment of the Light Processor Unit?
1. Release the three hexagon head cap screws as illustrated. Use for that a 3 mm Allen wrench.
Note: A washer is mounted between the plate and the screw head.
Image 10–13
2. Lift up the cover plate slightly, using the two lower lips provided, and then remove the cover plate away
from the projector.
Removal and installation of projector covers
