5. ICMP service procedure
d) Now you can remove the white connector, identified by 4 in image 5-26, from the RAID controller.
e) The RAID controller can now be removed.

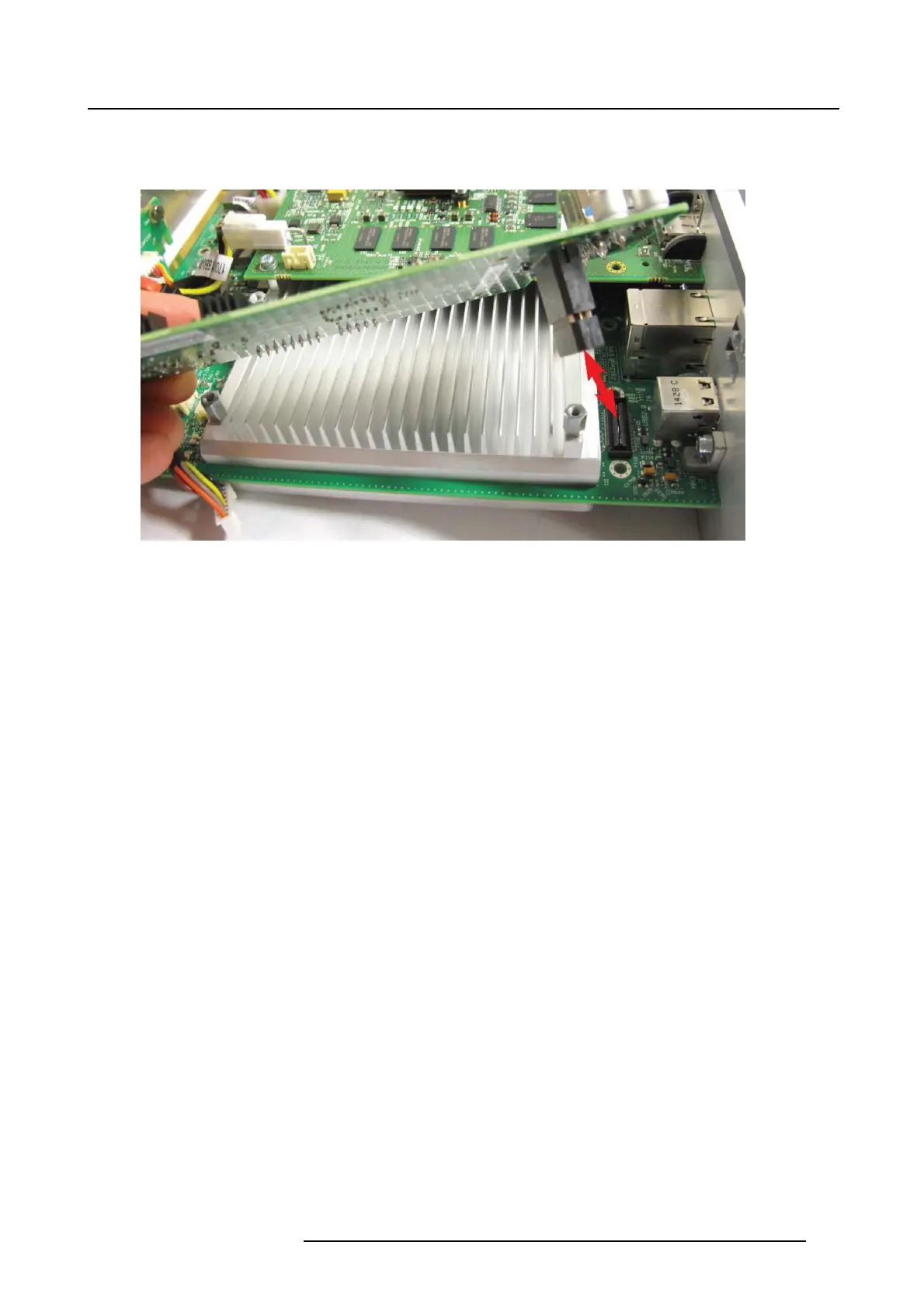

Image 5-28
5. Installation of the new RAID controller module.
a) Before placing back the RAID controller on the main ICMP board
, click in the white connector on the
RAID controller, identified by 4 in image 5-26.
Warning: Neglecting to click on that white connector might bend and damage the new RAID con-
troller.
b) Position the new RAID controller on the ICMP module. Be careful with the connector between the
main ICMP board and the RAID controller
c) Tighten the 4 x T10 screws on the RAID controller to lock them together, identified by arrows in
image 5-26.
Note: If you use a dynamometric Torx T10, you can setup this to a torque of 1 Nm.
d) Connect the 3 SATA connectors, identified by 1, 2 and 3 on image 5-26.
e) Place the bottom plate into the ICMP assembly and lock the 4 T15 screws from the bottom, as shown
in image 5-23.
f) Put the 2 long spacers back that hold the little security board on the metal plate and connect the 5
T10 screws that holds the whole assembly and spacers together, as shown in image 5-23.
6. Final steps.
a) You can now install the 3 hard disks. They are auto detecting, so it’s not important in which slot or
order you’ve inserted the 3 hard disks. For details on the HDDs installation procedure, please refer
to chapter "Installing a HDD into the ICMP", page 72.
b) Place the ICMP module into the projector and secure the 4 x PH2 screws that hold the ICMP. For
details on the ICMP installation procedure, please refer to chapter "Installing the ICMP", page 69.
c) The removal of the ICMP from the Card Cage of the projector has resulted in a tamper event (service
door tamper or insertion tamper). Before you can start playing content, you need to clear the error
with either the Dallas key or the Key button depending on the type of projector.
R5906594 ICMP 09/11/2016
83
