4. Adjustment of the mechanics for the display
4 Adjustment of the mechanics for the display
The front access mount and the pedestal are fit for KVD / IVD/ HVD displays. Whereas KVD and IVD have the
same dimensions, the HVD displays are 2mm smaller, both in width and in height:
Dimensions KVD/IVD/OVD: 1213.4 x 684.2 x 98.3 | 47.77” x 26.94” x 3.87”
Dimensions HVD: 1211.4 x 682.2 x 102 | 47.69” x 26.85” x 4.015”
Thus the pedestal as well as the front access mount module need first to be adjusted to the display which needs
to be installed.
4.1 Pedestal

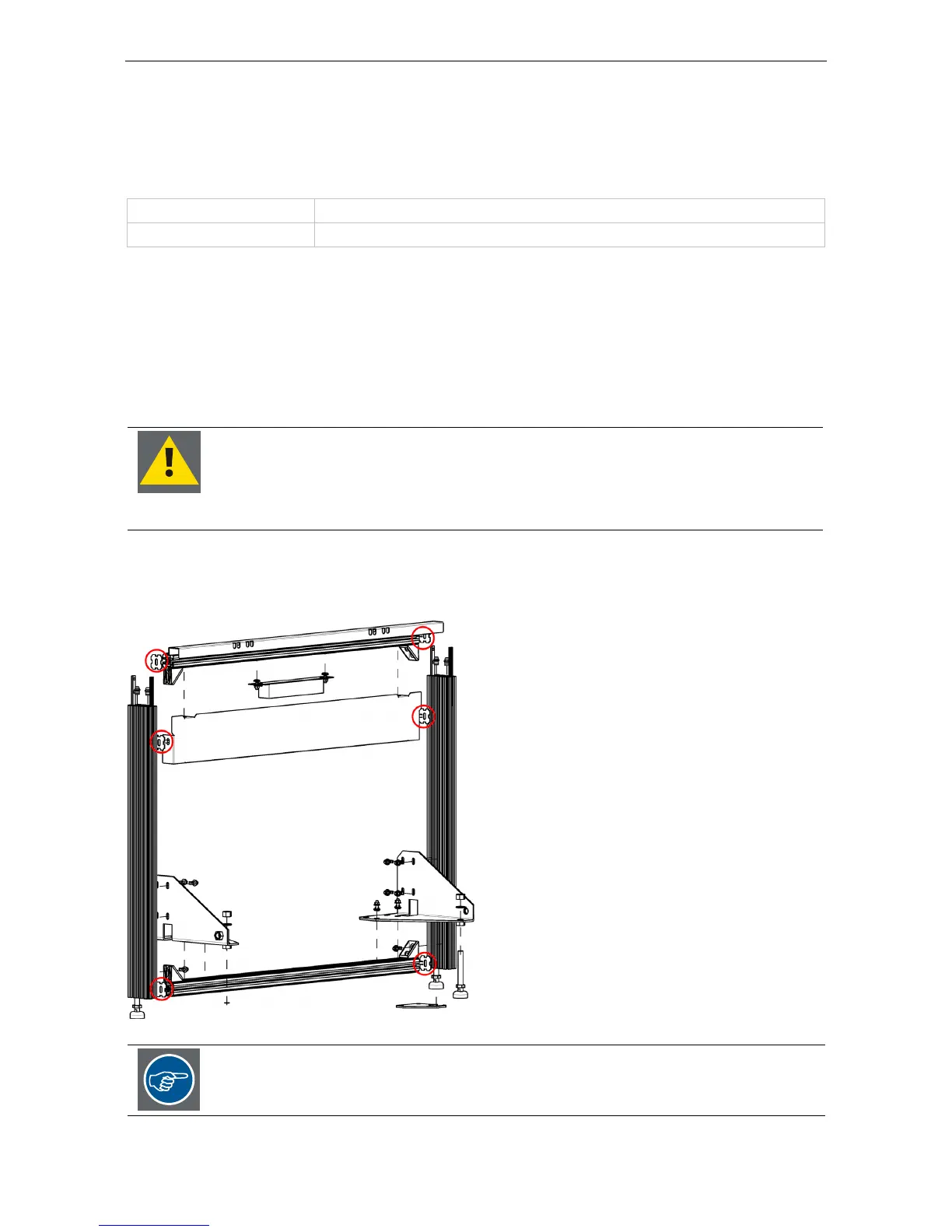

The adjustment in width is done via spacers.
To change the horizontal dimensions, spacers are mounted to the left and to the right
sight of a horizontal profile.
Since the difference in width between KVD and HVD is 2mm, at the left and at the right
side a spacer of 1mm needs to be inserted – that’s why you have to unfold and break the
part.
In case of OVD, KVD and IVD, these spacers are mounted on the left and right side of the horizontal profiles and
of the cable hub:
In case of KVD and IVD: the support needs to be setup using these spacers!
In case of HVD: the support is setup without these spacers!
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
