5. Mechanical setup of display wall with pedestals
5.4.2 Preparation of front access mount module, top row
Pedestal
51

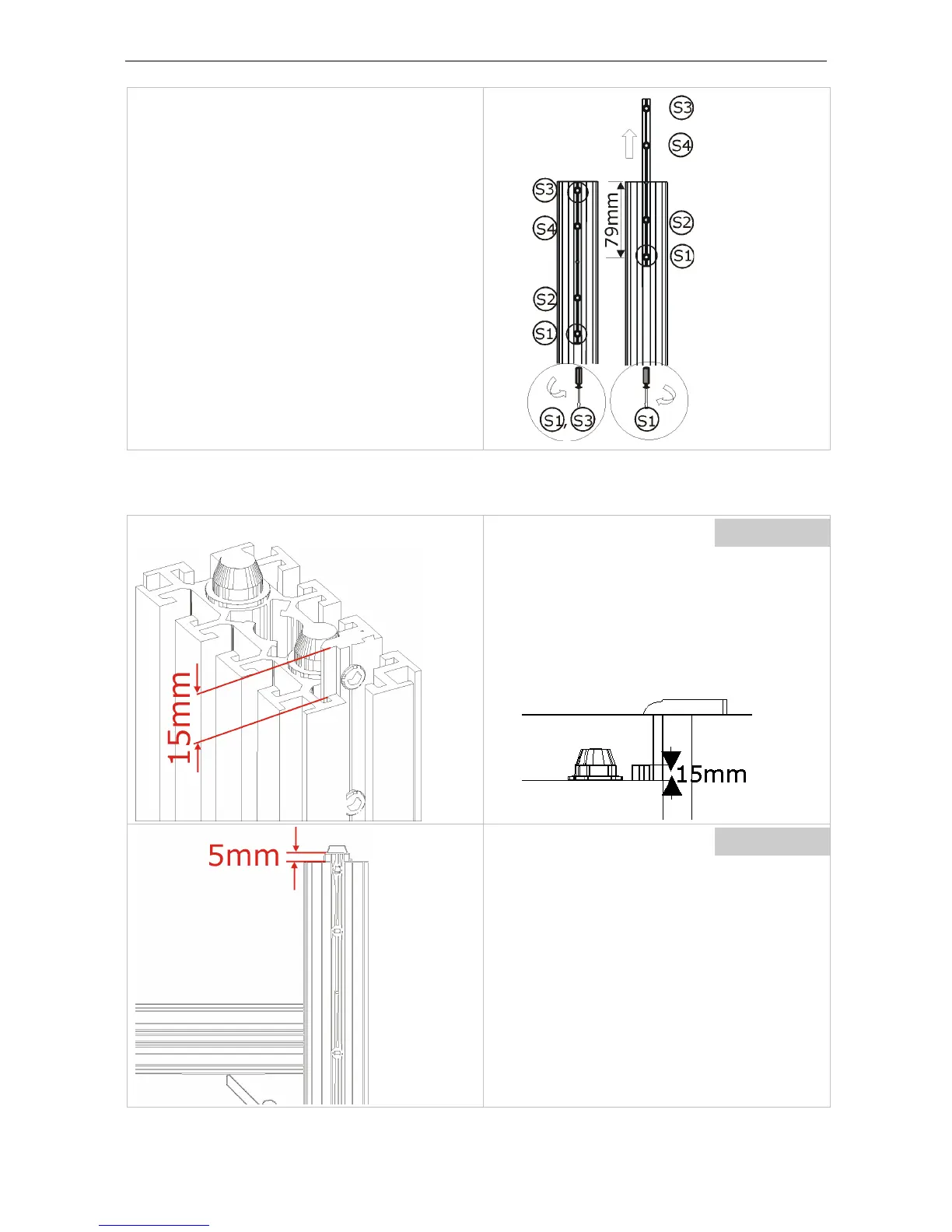

Prepare the front access mount modules of the
last rows:
Front T-bar connectors:
Shift the T-bar connectors slightly up until it has
an offset to the top of the profile of about 15mm.
Only fix the bottom screw of the T-bar connector.
Pedestal
52
Rear T-bar connectors:
Shift the T-bar connectors slightly up until it has
an offset to the top of the profile of about 5mm.
Fix the screws..
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
