4. Adjustment of the mechanics for the display

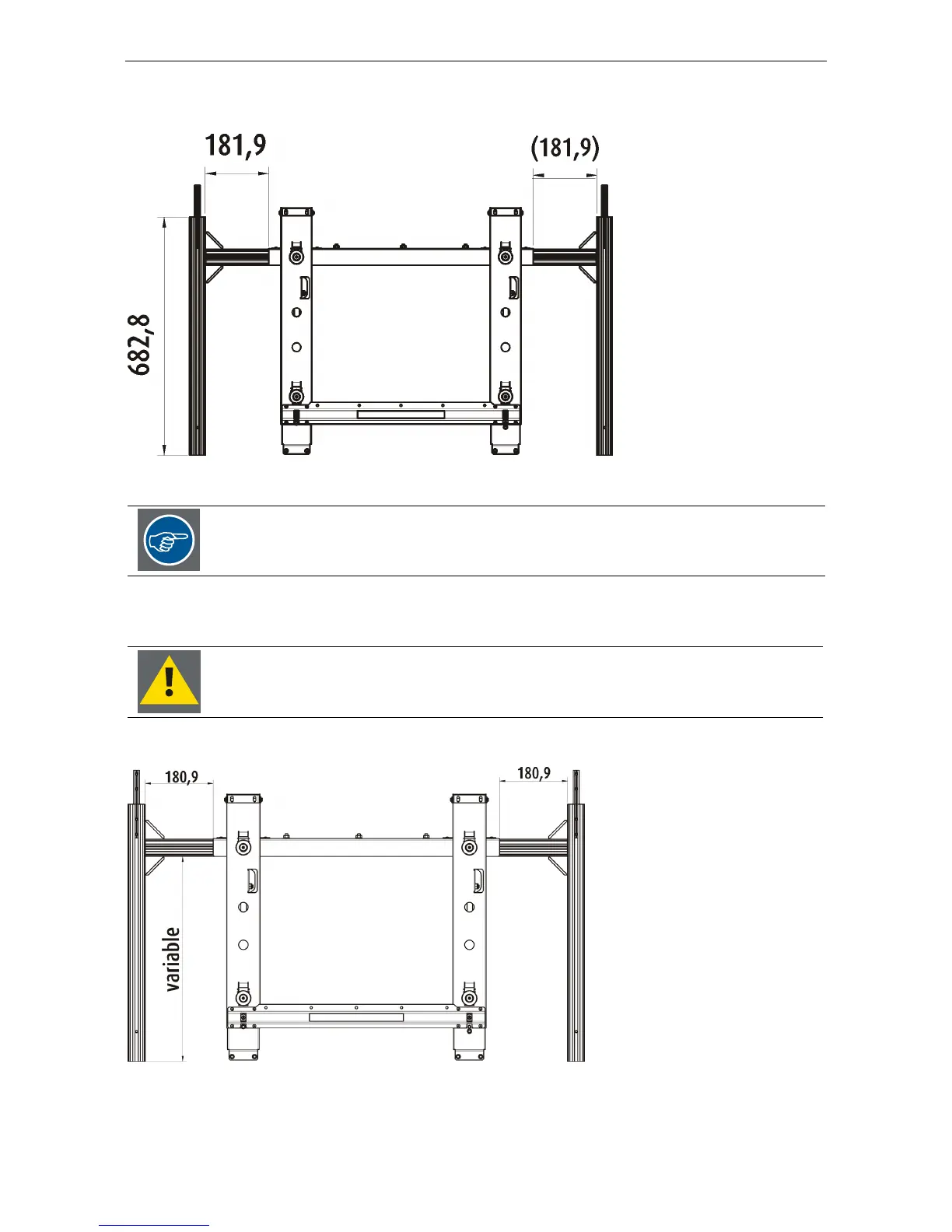

This is the profile for the front access mount. Please note the position of the spacers!
This profile is completed by the NSL-5521 CNN SUP V4 to R879308 which looks like this:
This is the condition of delivery. In case of KVD and IVD displays, no adjustment in width of
the horizontal profile (no removal of spacers) is required.
In case of HVD displays, remove the spacers to reduce the horizontal width by 2 mm.
Next to the adjustment in width, adjustment in height needs to be checked / done.
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
_____________________________________________________________
23
