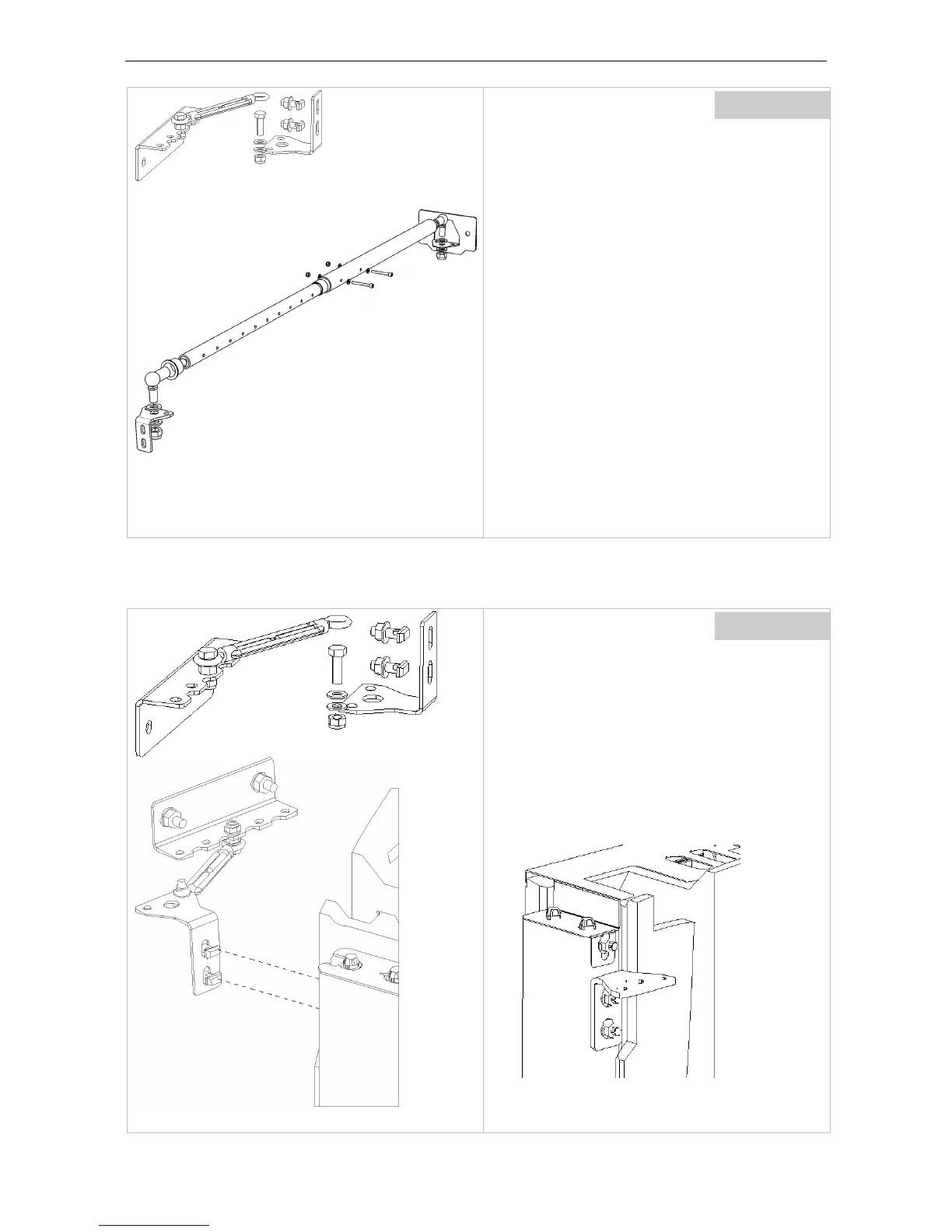

5. Mechanical setup of display wall with pedestals
Pedestal
There are two type of wall fixation, a short one
using a turnbuckle and a long one using a tele-
scope bar.
The short wall fixation R868448 comprises a wall
fixation bracket, an interface bracket to the struc-
ture and a turnbuckle screw.
The turnbuckle screw can be set between 150
and 315mm. It needs to be mounted to the wall
with an angle.
The long wall fixation instead of the turn-buckle
comprises a long telescope bar which allows set-
ting a (perpendicular) distance between 554mm
and 1106mm
. Use an appropriate angle to realize
the actual distance.
If required, drill additional holes to lock the tele-
scope bar arrangement!
Fixation material to the wall is not included in the
delivery. It has to be M10 and selected according
the material of the wall to withstand the forces.
Pedestal
First the wall fixation brack
wall, cf. Mounting the wall fixation brackets for video
walls with (kind of standard) supports
Subsequently the interface bracket to the struc-
ture is mounted. It is fixed using two hammer
bolts.
It can be fixed at the back side of the vertical pro-
file or, if it can be reached, also on the side of the
vertical profile.
Barco - LCD 5521 V4 - R591734 - Installation manual - Revision 00 - March-2017
_____________________________________________________________
27
