5. Mechanical setup of display wall with pedestals

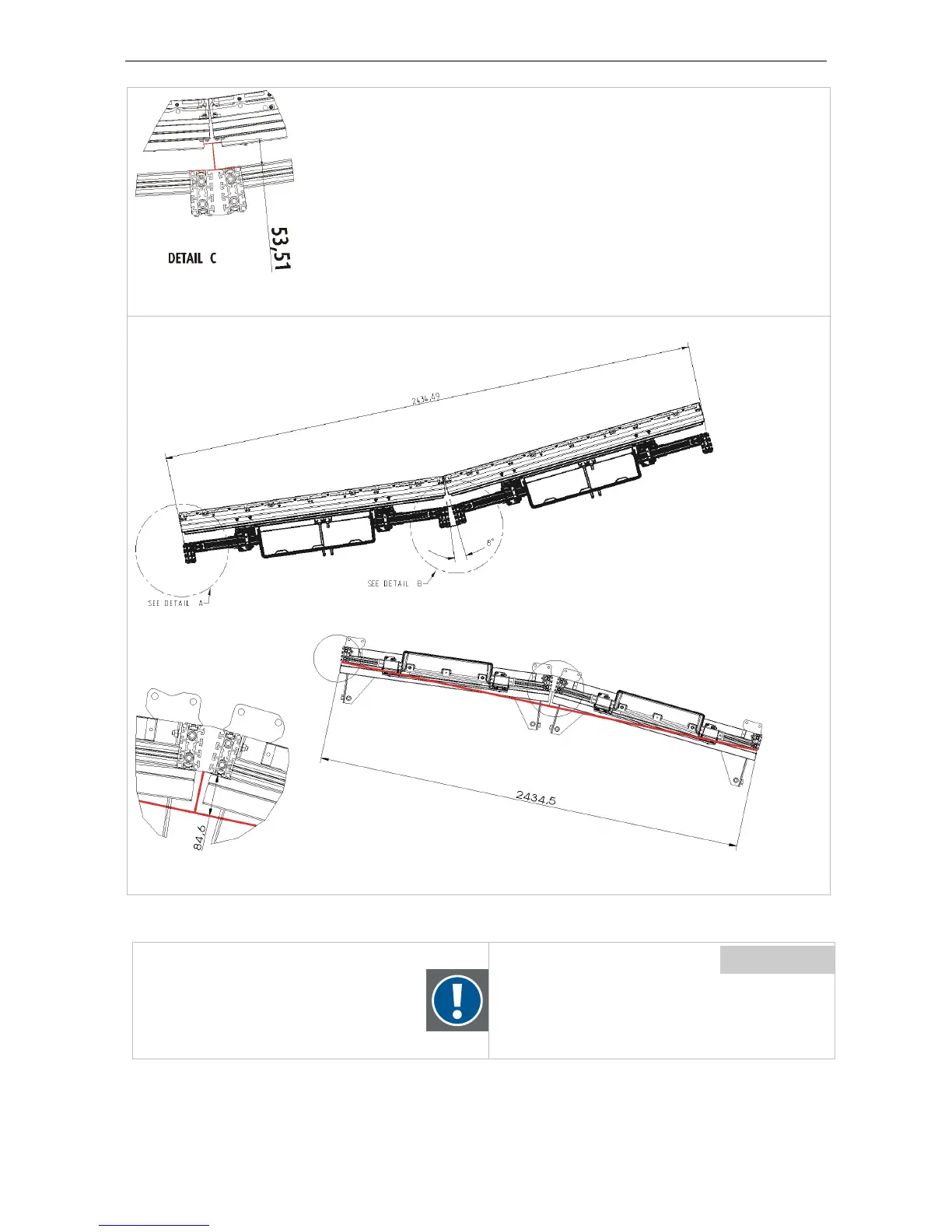

If you use a measuring
cord between the outer profiles of two systems the distance of the measuring cord at the
junction of the system is 52.6mm.
8degrees:
If you use a measur
ing cord between the outer profiles of two systems the distance of the measuring cord at the
junction of the system is 84.6.
Pedestal
47
Fix the supports to the wall fixation brackets al-
ready attached to the wall during the preparation
phase.
