3. Display installation
WARNING: Use an arm that is approved by VESA (according to the VESA 100 mm stan-
dard).
Use an arm that can support the weight of the display. Refer to the technical specifica-
tions of this display for the applicable weight.
Overview
The panel, standard attached to the tilt & swivel foot, is compatible with the VESA 100 mm standard. So
itcanbeusedwithanarmstandaccordingtotheVESA100mmstandard.
Therefore, the tilt & swivel foot must be removed from the panel.

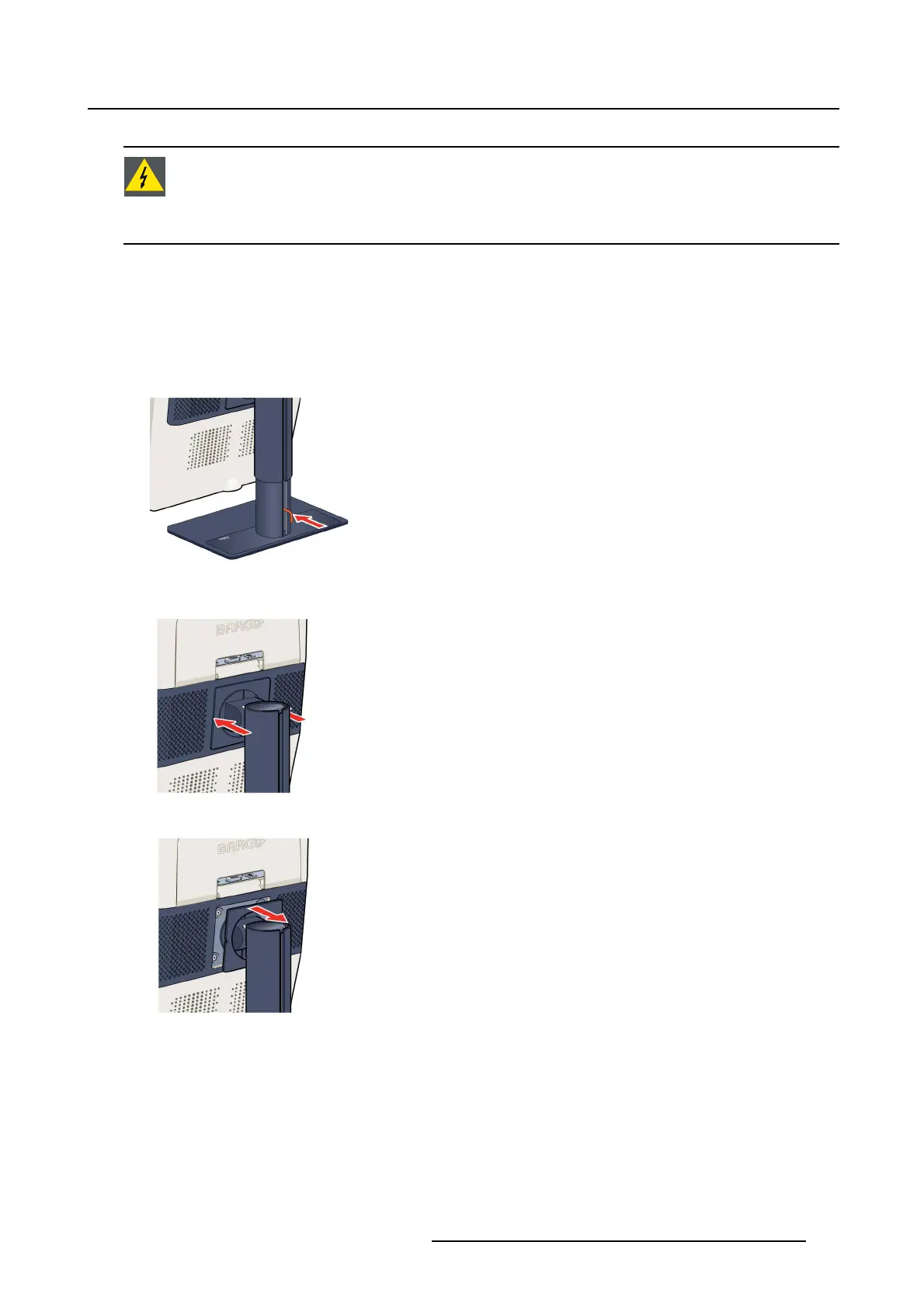

1. Fasten the height mechanism of the foot by putting the red clip in the hole "Unlocking the height mech-
anism", page 9 .
2. Put the display face down on a clean and soft surface. Be careful not to damage the panel screen.
3. Remove the plastic cover with a flathead screw driver.
4. Slide the plastic cover over the neck of the foot.
K5902067 NIO 3MP LED DISPLAY 10/04/2013 13
