111R5911443 /11 UDM

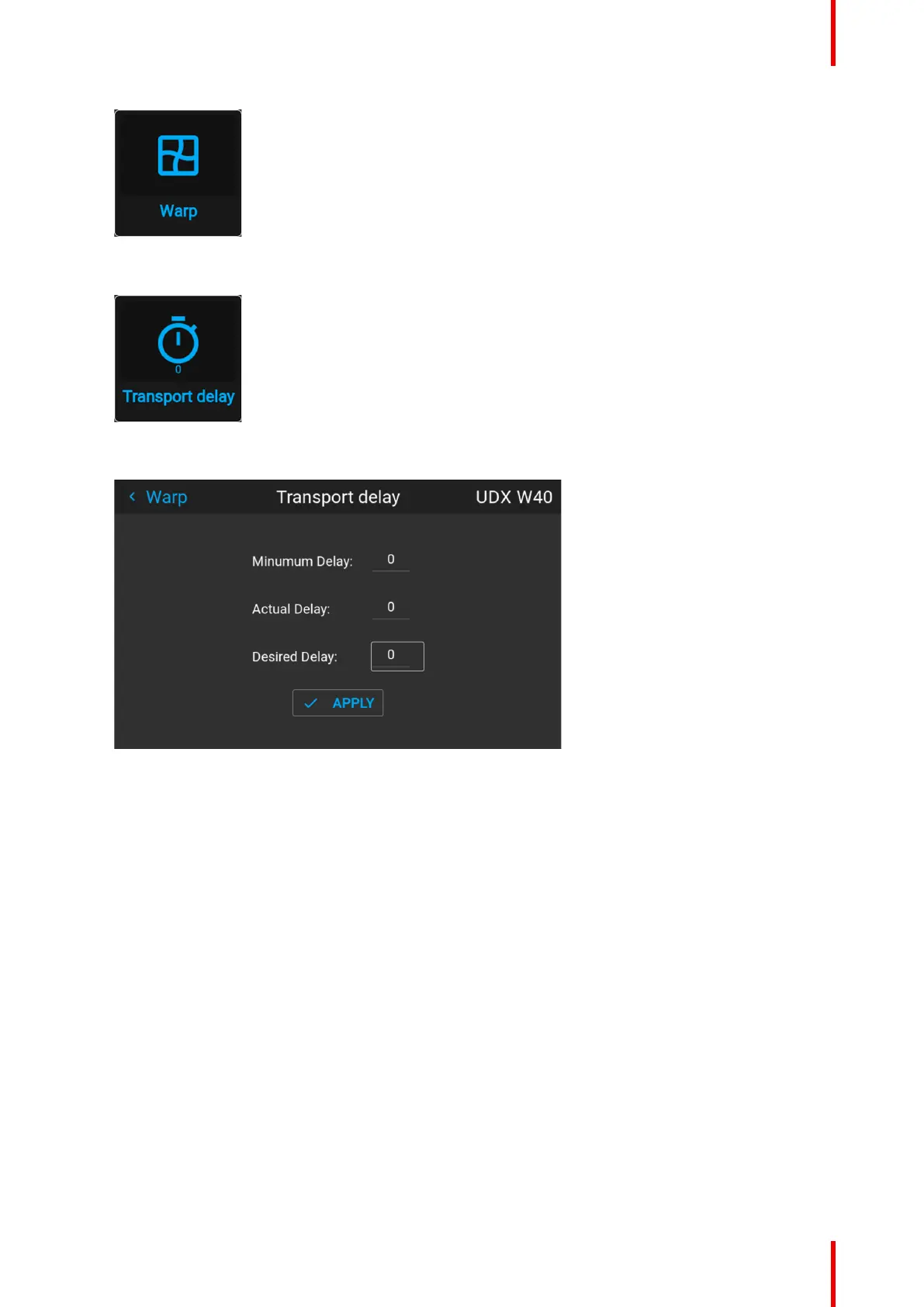

Image 8–61 Installation menu, Warp
4. In the Warp menu, select Transport Delay.
Image 8–62 Warp menu, Transport delay
The Transport delay menu is displayed.
Image 8–63 Example of the Transport delay menu
5. Enter the value either by the arrow keys (one step at a time) or directly by the numeric keys on the remote
control.
6. Click Apply to confirm the value.
7. Repeat this process for every projector in the setup.
8.13 Blending & masking
About blending
Blending is used in multi channel installation to have a seamless transition between the channels. Image
blending gives the appearance of a single view, thus achieving realistic immersion for the majority of wide
screen applications.
The principle is that the light intensity in the blend zone from each projector will be adjusted individually, so
that the rendering on the screen is perceived as from one projector.
GUI – Installation
