How to replace the small air filter
1. Remove the light processor cover. See “Removal of the left cover”, page 108.
2. Locate the metal filter on the inside of the cover.
3. Push both filter holders to the outside and flip the filter out of the holder as illustrated.

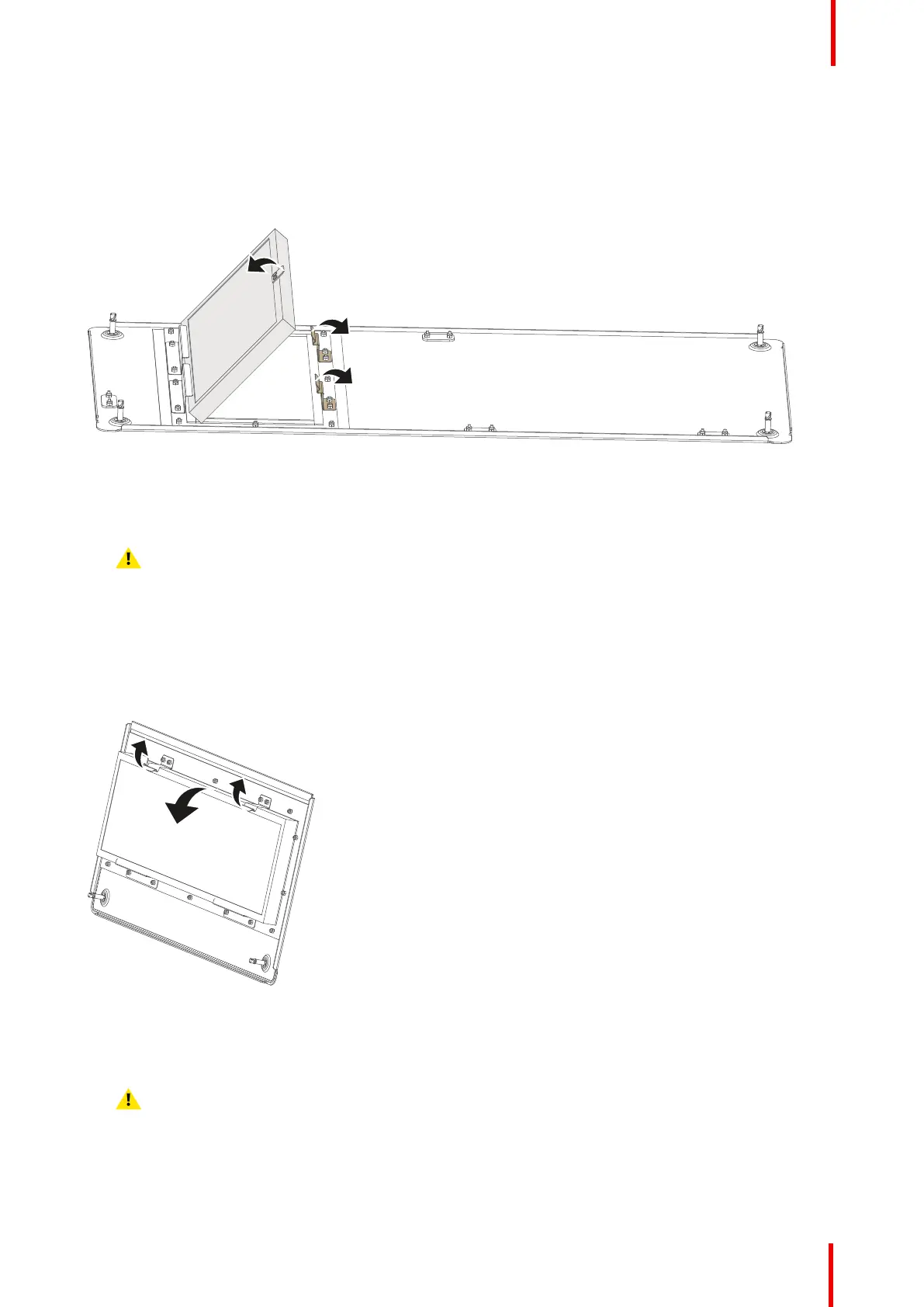

Image 10-1: Small metal filter replacement
4. Remove the filter and clean it.
5. Install either the cleaned filter or a new filter (if the old one is no longer usable).
Caution: Take notice of the air flow direction of the filter (made visible by a label). Make sure the arrow
points towards the inside of the projector.
6. Install the light processor cover again. See “Mounting the left cover”, page 110.
How to replace the large air filter
1. Remove the small top cover. See “Removal of the small top cover”, page 109.
2. Push both filter holders to the outside and flip the filter out of the holder as illustrated.
Image 10-2: Small top cover filter replacement
3. Remove the filter and clean it.
4. Install either the cleaned filter or a new filter (if the old one is no longer usable).
Caution: Take notice of the air flow direction of the filter (made visible by a label). Make sure the arrow
points towards the inside of the projector.
5. Install the small top cover again. See “Mounting the small top cover”, page 111.
