R5906113 /08 UDX 49

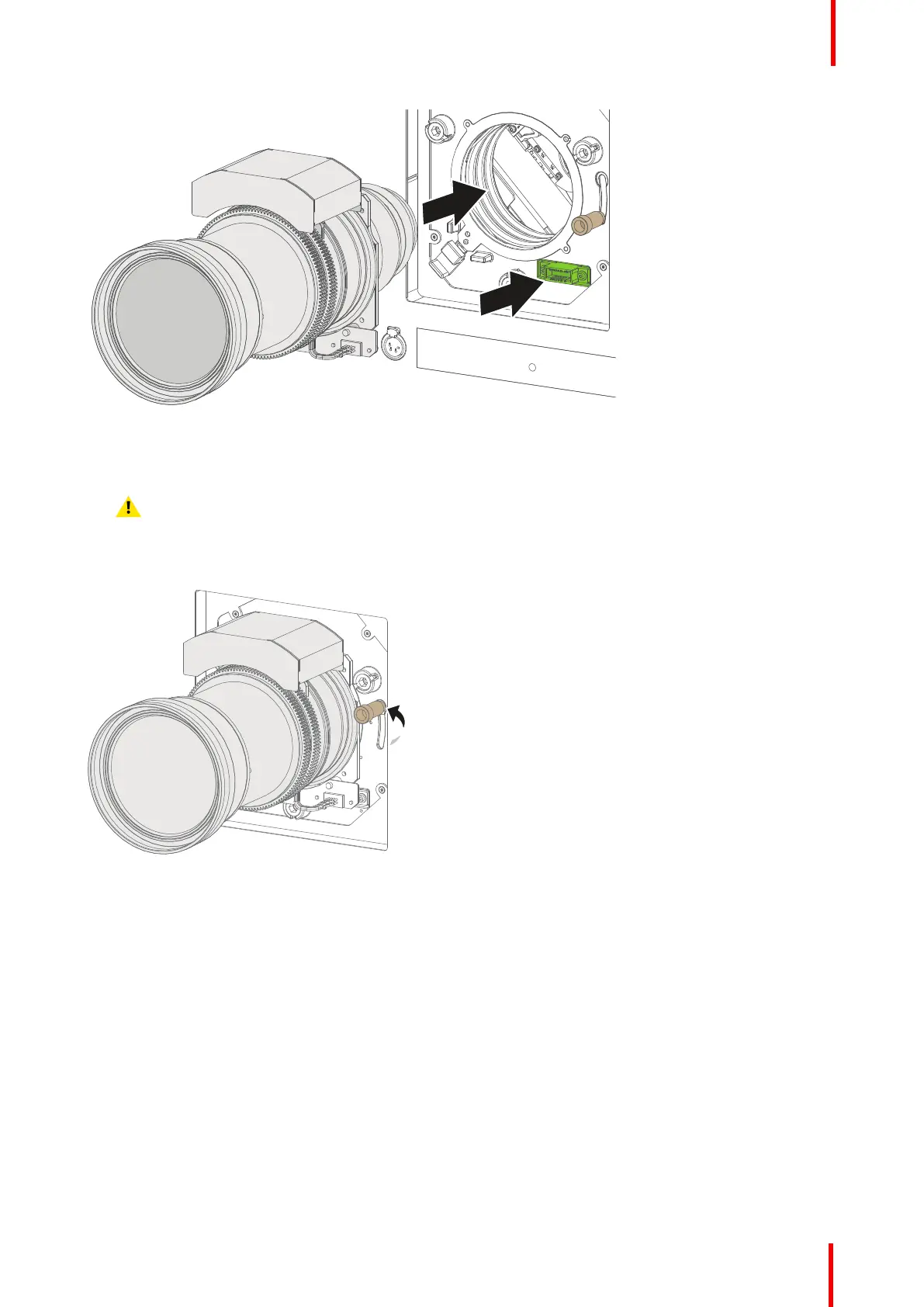

Image 5-12: Lens installation
6. Insert the lens until the connector seats into the socket and de secondary lock (reference 3) makes an audible
clicking sound.
Warning: Do not release the Lens yet, as the Lens may fall out of the Lens Holder.
7. Secure the lens in the lens holder by sliding the primary lens lock handle into the locked position (to the top
of the projector). Ensure the lens touches the front plate of the lens holder.
Image 5-13: Lock lens
8. Check if the lens is really secured by trying to pull the lens out of the lens holder.
5.4 Lens removal
How to remove
1. Support the lens with one hand while you unlock the lens holder by sliding the primary lock handle outwards
and then towards the unlocked position as illustrated (Image 5-14).
