4. Rear / Table (R/T)
5. Rear / Ceiling (R/C) (upside down)
6. Rear / Ceiling (R/C) (table position)
Front projection
The projector is installed, either in a table mount or ceiling mount configuration, at the same side of the screen
as the audience.
F/C
AUDIENCE
F/T
FLOOR
SCREEN

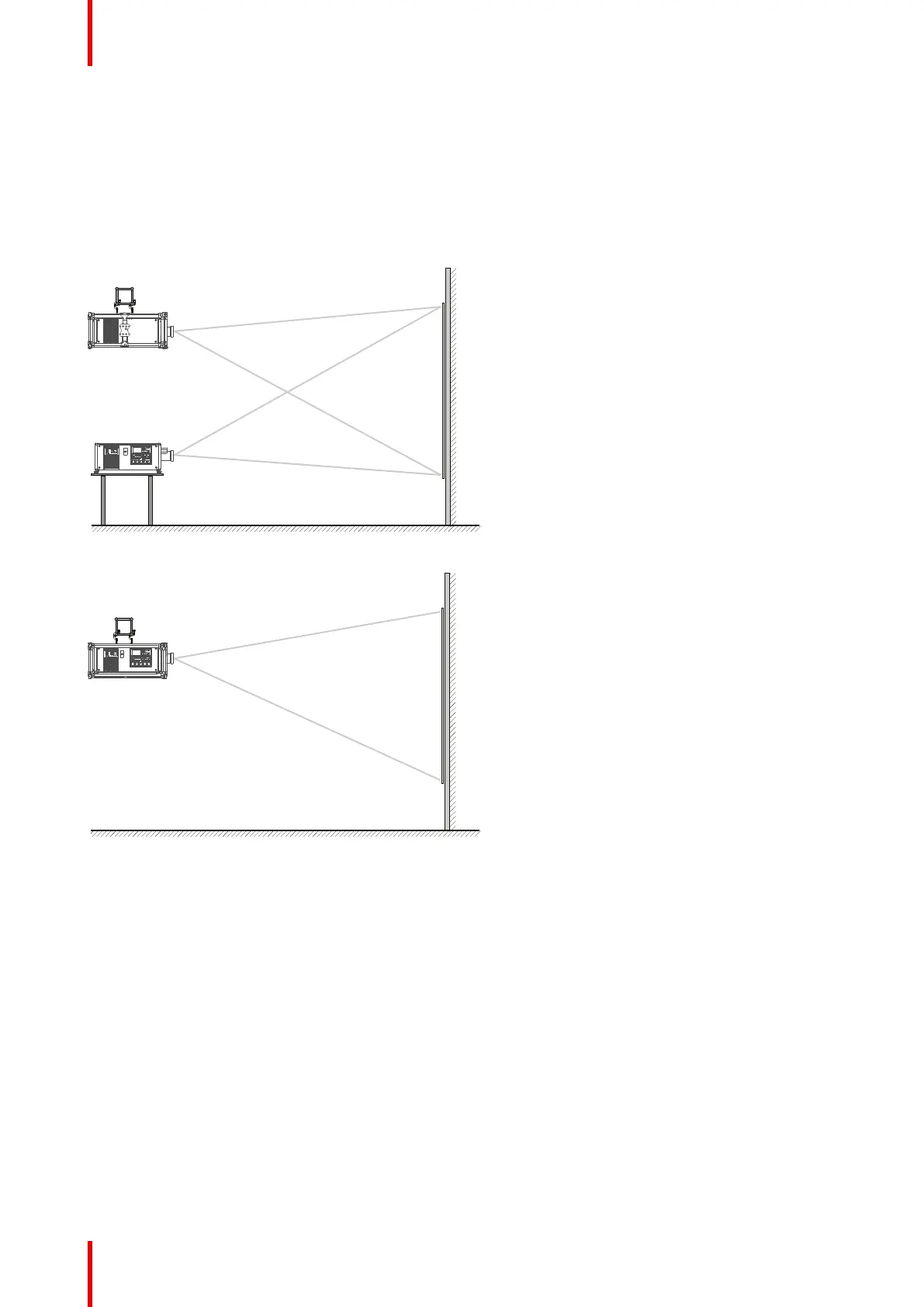

Image 2-5: Front projection
Image 2-6: Front projection, Ceiling mounted, in table position
Rear projection
The projector is installed, either in a table mount or ceiling mount configuration, at the other side of the screen
opposite the audience.
