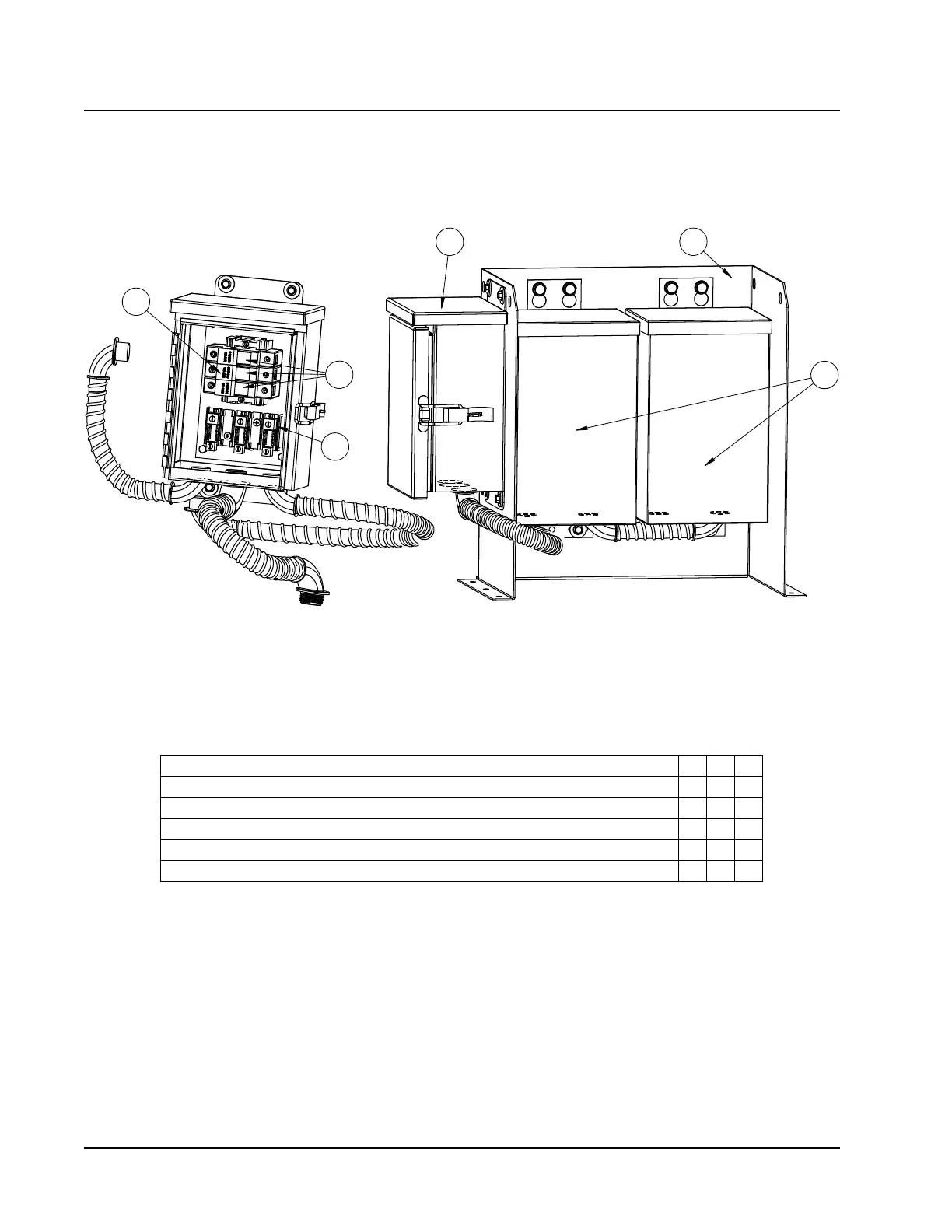

575V TRANSFORMER ASSEMBLY
W090A*Q W120A*Q W150A*Q
Dwg No. Part Number Description
1 8614-063 Junction Box w/Hinged Cover X X X
2 113-774 Transformer Bracket X X X
3 8407-003 Stepdown Transformer 480/240V 1.5 kVA 2 2 2
4 8614-062 3-Pole Fuse Holder X X X
5 8614-046 5 Amp Class CC Fuse X X X
6 8607-014 3 Terminal Block 240V X X X
SEXP-1019
2
3
1
6
5
4
910-2087 575V Transformer/Junction Box Assembly
