8301-089 Outdoor Temperature/Humidity Sensor

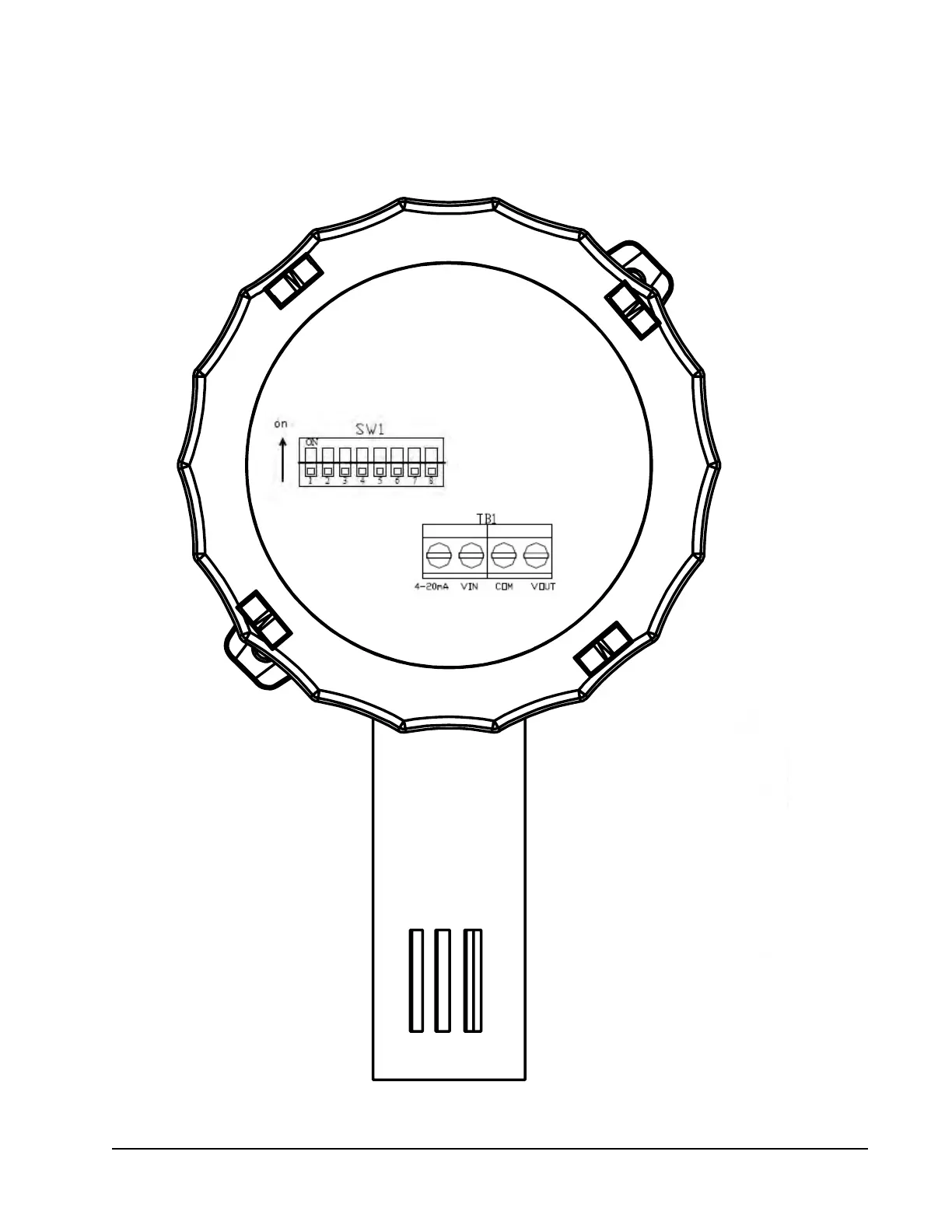

FIGURE 58
8301-089 Sensor DIP Switches and Terminal Block
Digitally signed by James L. Austermiller
DN: cn=James L. Austermiller, o=Bard
manufacturing Company Inc., ou,
email=jima@bardhvac.com, c=US
Date: 2018.07.30 07:10:23 -04'00'
Unit temperature/humidity sensor located
on upper right side of unit. Remove cover
by turning counter clockwise. Be sure to
replace cover after accessing.
