2100-444-003A
Page 56

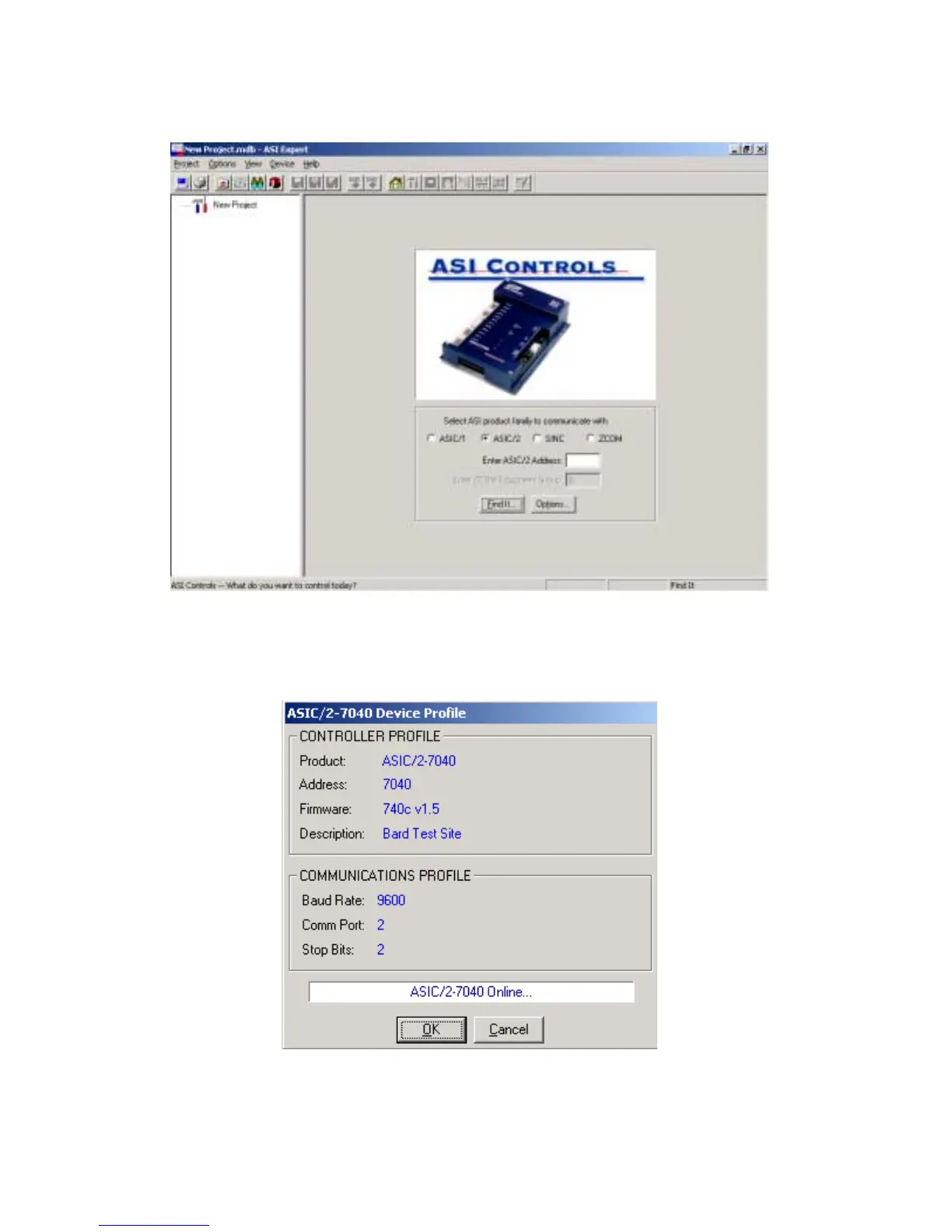

6.3.2.5 Downloading Controller Information
The ASI
C/2-7040 Device Profile window will appear. If communications have been established
the status bar at the bottom of the window will show “ASI
C/2-7040 Online…”. If
the status bar is
flashing red communication have not been established. Check COM port settings and troubleshooting
section.
