2100-444-003A
Page 57

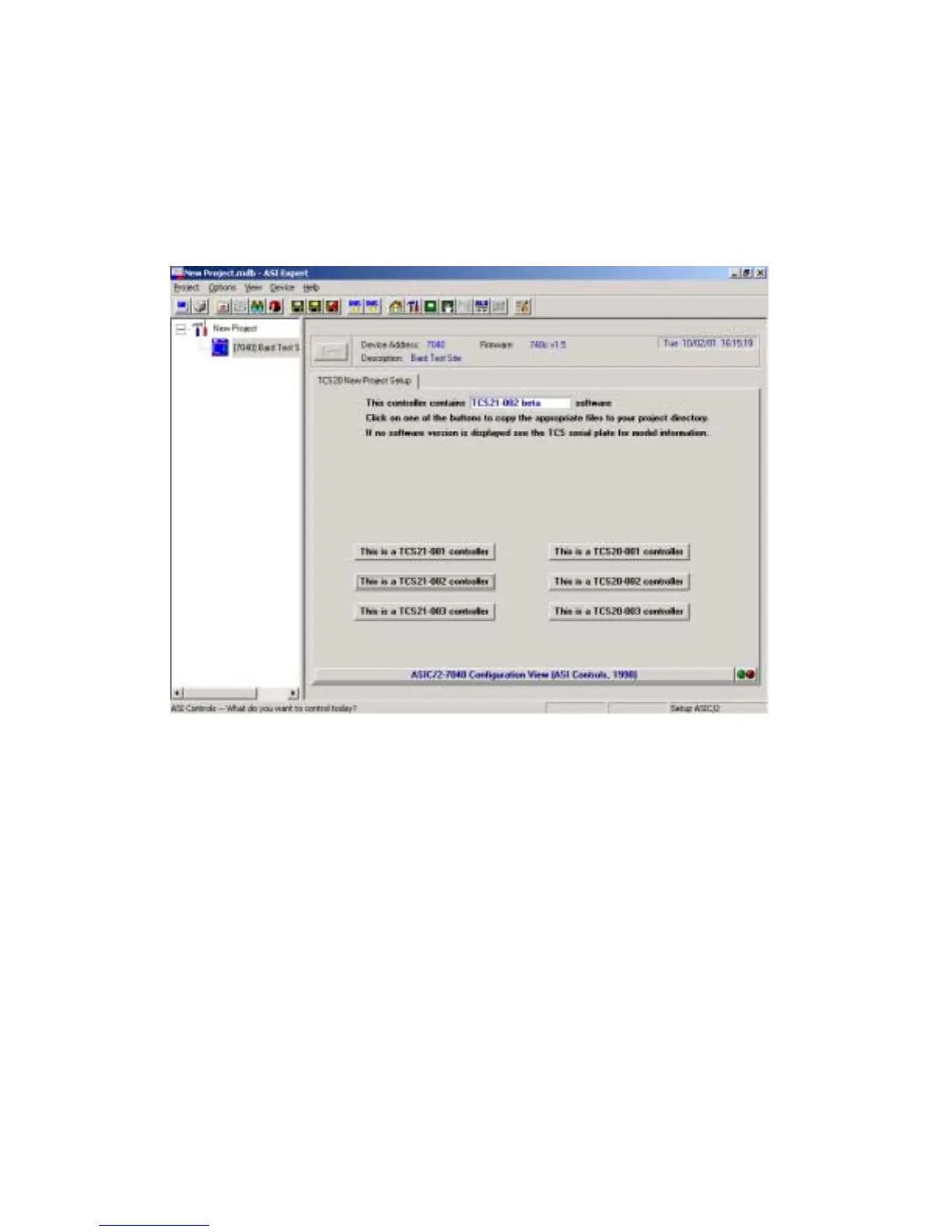

Clicking OK will start the downloading of data from the controller to the computer. Once the
preliminary information has been downloaded the TCS New project setup Screen will appear in the
Controller information area of the screen. The TCS software version will be displayed for all TCS22
models. Nothing will be displayed for TCS22 models. For TCS22 models refer to the serial plate inside
the front cover to determine the software version that is installed. The last three numbers of the model
number indicate the software version.
Click on the appropriate button to create the new project folder and copy needed files to this
folder. Once the files have been copied the Main Screen Tab screen will be displayed and live data will
be shown on the Main screen. At this point it is a good idea to save the project. Click Project | Save on
the menu bar.
