Barko 495B - SE - Lubrication Points

Service Manual
495B SE (S)
23
Last Updated - 9/28/2016
GREASE
HYDRAULIC
OIL
GEAR FLUID
1 Grapple Arms
2 Grapple Rotator
3 Grapple Cylinders
4 GrappleHanger(2ttings)
5 Turntable Bearing & Pinion
6 Stick Boom Pivot
7 Main Boom Pivot
PumpDrive(exceptdirectdrivemodels):EP80-90gearuid.
SwingMotorGearboxes:gearuid-seeSwingMotorGearboxMaintenancesectioninServiceManual(approx.
5.07 quarts (4.8 Liters)) (if lube reservoir is used, maintain it at half full).

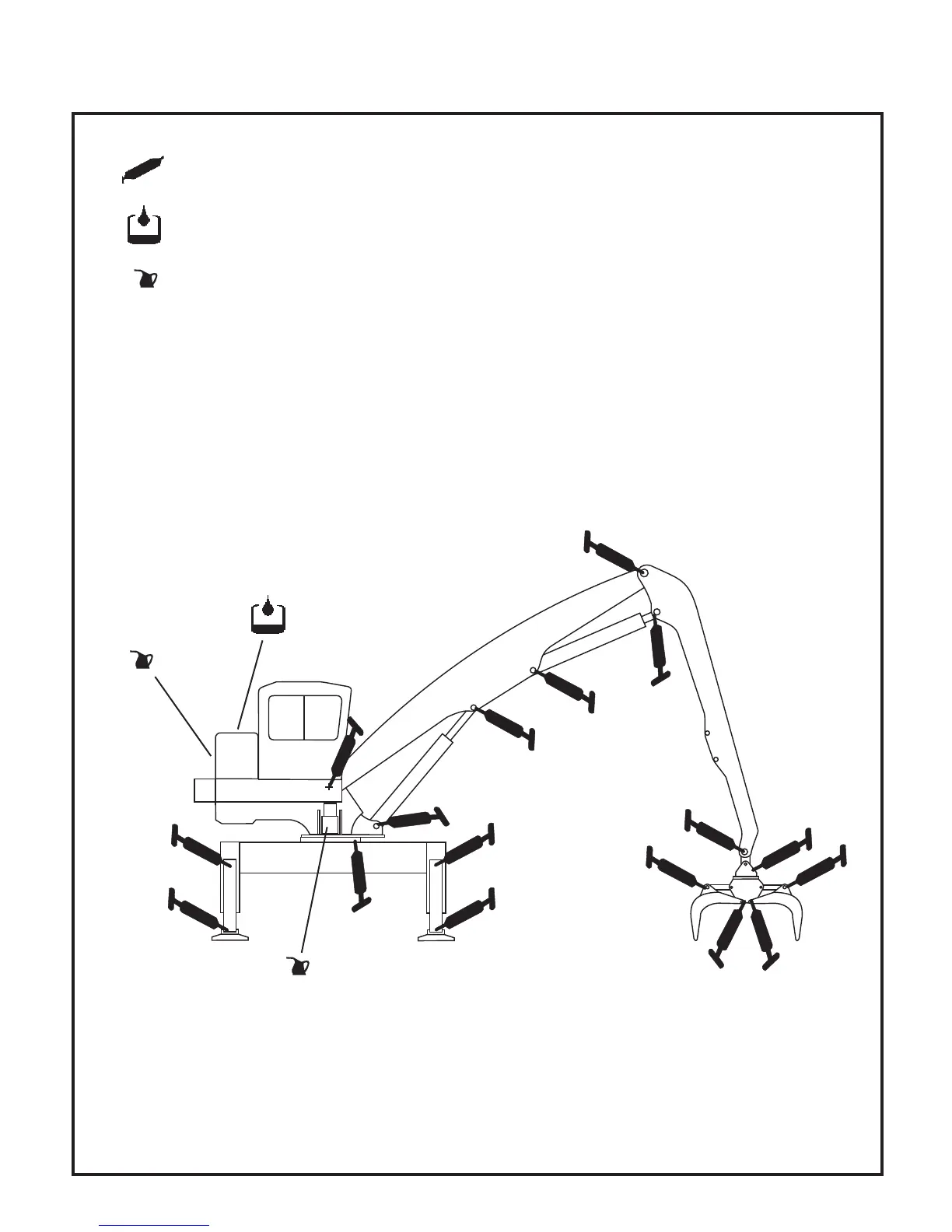

LUBRICATION POINTS
(PERFORM DAILY)
3
1
1
8
13
14
2
4
6
5
3
7
8
10
10
11
11
9 remote mounted
 greasettingson
back plate of
subframe
12
8 Stabilizer Legs
9 Stabilizer Cylinder
10 Main Boom Cylinder
11 Stick Boom Cylinder
12 Hydraulic Oil Reservoir
13 Swing Motor Gearbox
14 Pump Drive
9 remote mounted
 greasettingson
back plate of
subframe
