Barko 495B - SE - Hydraulic Collector Maintenance; Trouble Shooting (Symptoms of a Defective Collector); Replacing the Active Fill and;or Counter Pressure Valves

Service ManualLast Updated - 9/28/2016
495B SE (S)
48
TROUBLE SHOOTING
1. External leaks on collector.
2. Failure to achieve system pressure (3600 PSI) on the main up and stick boom functions at one half throttle or
less.
3. Intermittentactivationofthedrainlterwarningbuzzerwhenusingboomfunctions.
4. Engine starting under load. (This can also be caused by sticky solenoids on lower valve bank).
5. Pressures above 100 PSI at the load sense test port on the pump when no functions are being used.
6. Failure of the swash plate indicator to go to 0 when no functions are being used.
To test, remove the 1" hose from the P1 port on the upper valve bank that goes to port #3 on the collector. Plug the
hoseandcapthettingonthevalveP1port.Thiswilldisablethelowervalve,butshouldreturnallboom,grapple
and swing functions to normal. 16 JIC cap and plug are required to test. See Figure 1.
If machine still fails to function properly with the pressure line disconnected, cap off the load sense line that runs from
the LSP port to port #4 on the collector (a seal leak between the pressure port and load sense port will cause the
pump to stay stroked). 3/8 JIC cap and plug required. See Figure 1.
If this causes boom, grapple and swing functions to return to normal proceed with resealing the collector.
REPLACING THE ACTIVE FILL AND/OR COUNTER PRESSURE VALVES
Ifthemachinestillfailstofunctionproperlyitispossiblethattheactivellvalve(partnumber558-01587)and/orthe
counter pressure valve (part number 558-01586) located in the upper valve bank are defective. To test, tee a gauge
into the 1/2" line that runs between the swing crossover relief valve and the T3 port on the upper control valve bank.
Withengineatlowidle,youshouldsee30to50PSI.Ifnot,replacetheactivellvalve.Withtheengineatlowidle,
rotate the grapple. You should see 70 to 80 PSI. If not, replace the counter pressure valve. See Figure 1 and 2.

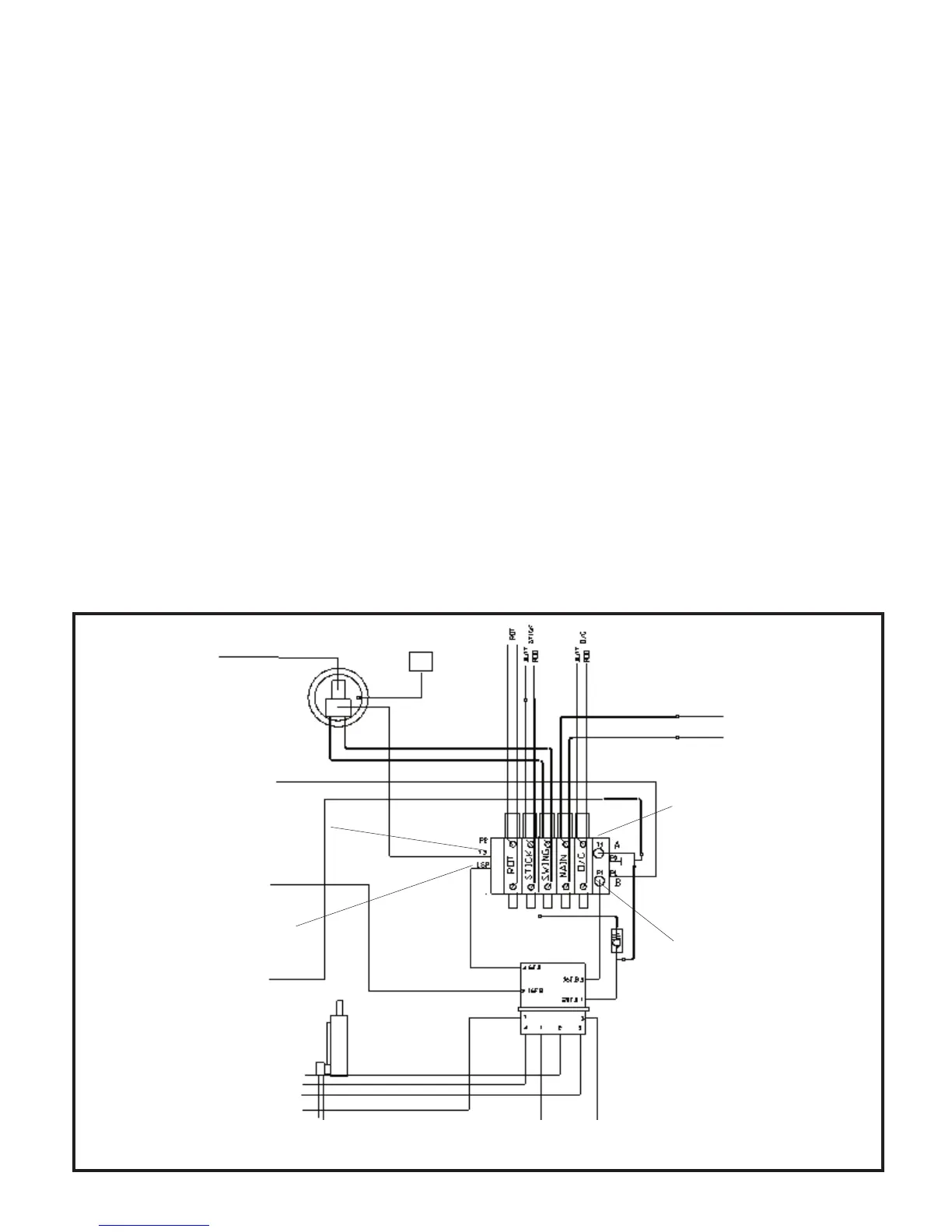

Figure 1
HYDRAULIC COLLECTOR MAINTENANCE
(SYMPTOMS OF A DEFECTIVE COLLECTOR)
ADDTESTTEEWITH
GAUGEINTOT3PORT
CAP HOSE AND
PLUGLSP PORT
UPPERVALVE
BANK
CAP HOSE AND
PLUGP1PORT
