Barko 495B - SE - Collector Trouble Shooting Continued...; Collector Seal Replacement

Service Manual
495B SE (S)
49
Last Updated - 9/28/2016
COLLECTOR TROUBLE SHOOTING CONTINUED...

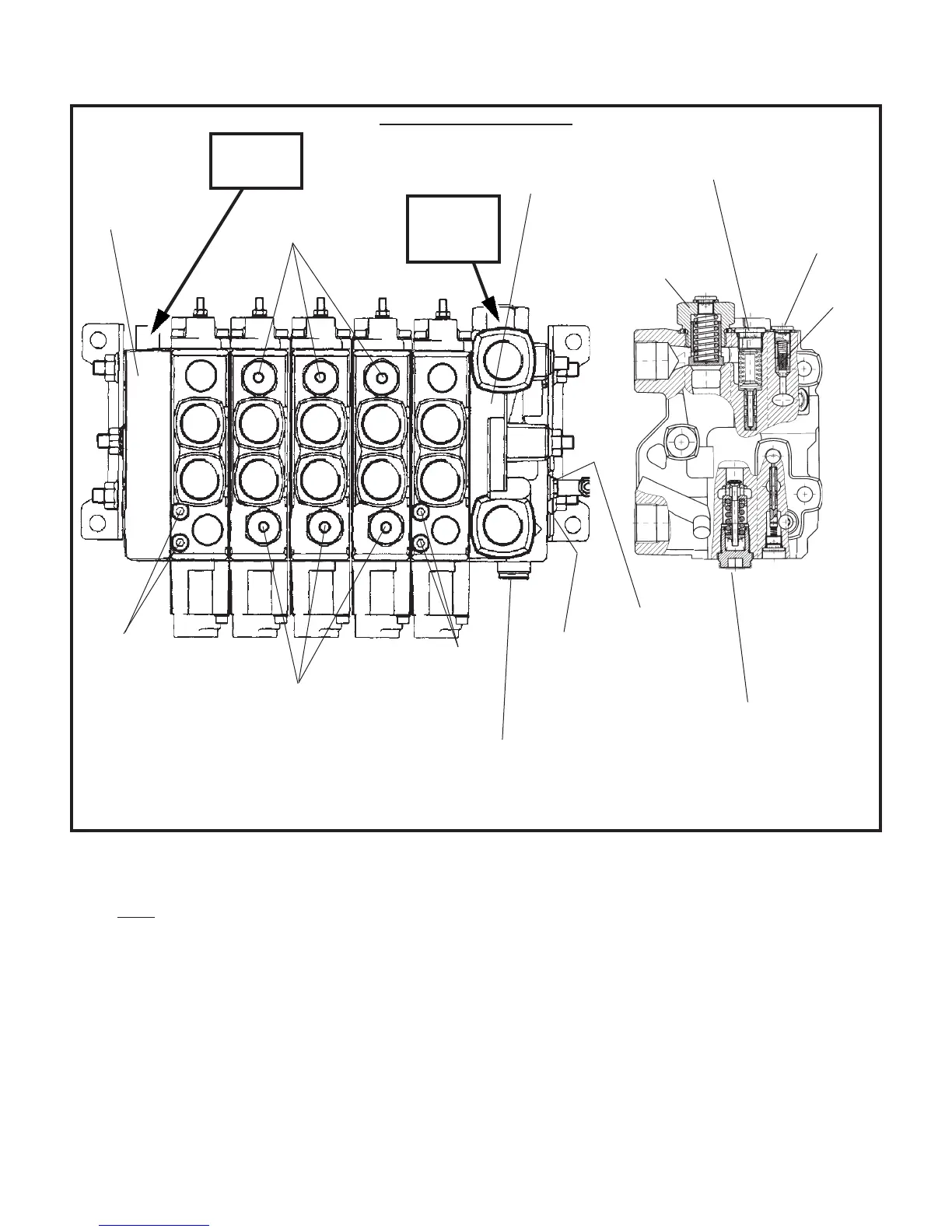

Figure 2
Pilot
Filter
Pilot Relief
(pressure reducing valve)
Pilot
Supply
Port
Load
Sense
Pressure
Port
(PL)
Pump
Pressure
Gauge Port
(PX)
K170 UPPER VALVE BANK
Counter
Pressure
Valve
Port Reliefs
(non-adjustable)
Feed
Reducers
Outlet Cover
(with pressure in)
Counter
Pressure
Valve
Feed
Reducers
Rotate
Stick
Swing
O/C
Main
Inlet Cover
Port Reliefs
(non-adjustable)
Main Relief
(non-adjustable)
Main Relief
(non-adjustable)
A
B
A
B
A
B
A
B
A
B
A
B
A
B
Active Fill
Valve
COLLECTOR SEAL REPLACEMENT
(For Collector 553-02044)
See Figure 3.
Find a clean work area to perform this procedure.
1. Remove retaining plate cap screws, retaining plate, dust shield o-ring and nylon thrust washer. Separate the
spool and housing by pressing or gently tapping with a plastic mallet and remove wear rings.
2. Clean and inspect the housing bore for any physical signs of damage. NOTE: Polished witness marks from the
seals will be visible, but present no problem unless they show excessive wear.
3. Placingthespooluprightontheworksurface,removeallofthesealsandback-upo-ringsbypushingasmallat
head screw driver through the seal and o-rings, being careful not to scratch any part of the seal groove.
4. Remove the lower nylon thrust washer and lower o-ring. Clean and inspect the spool for any physical damage.
