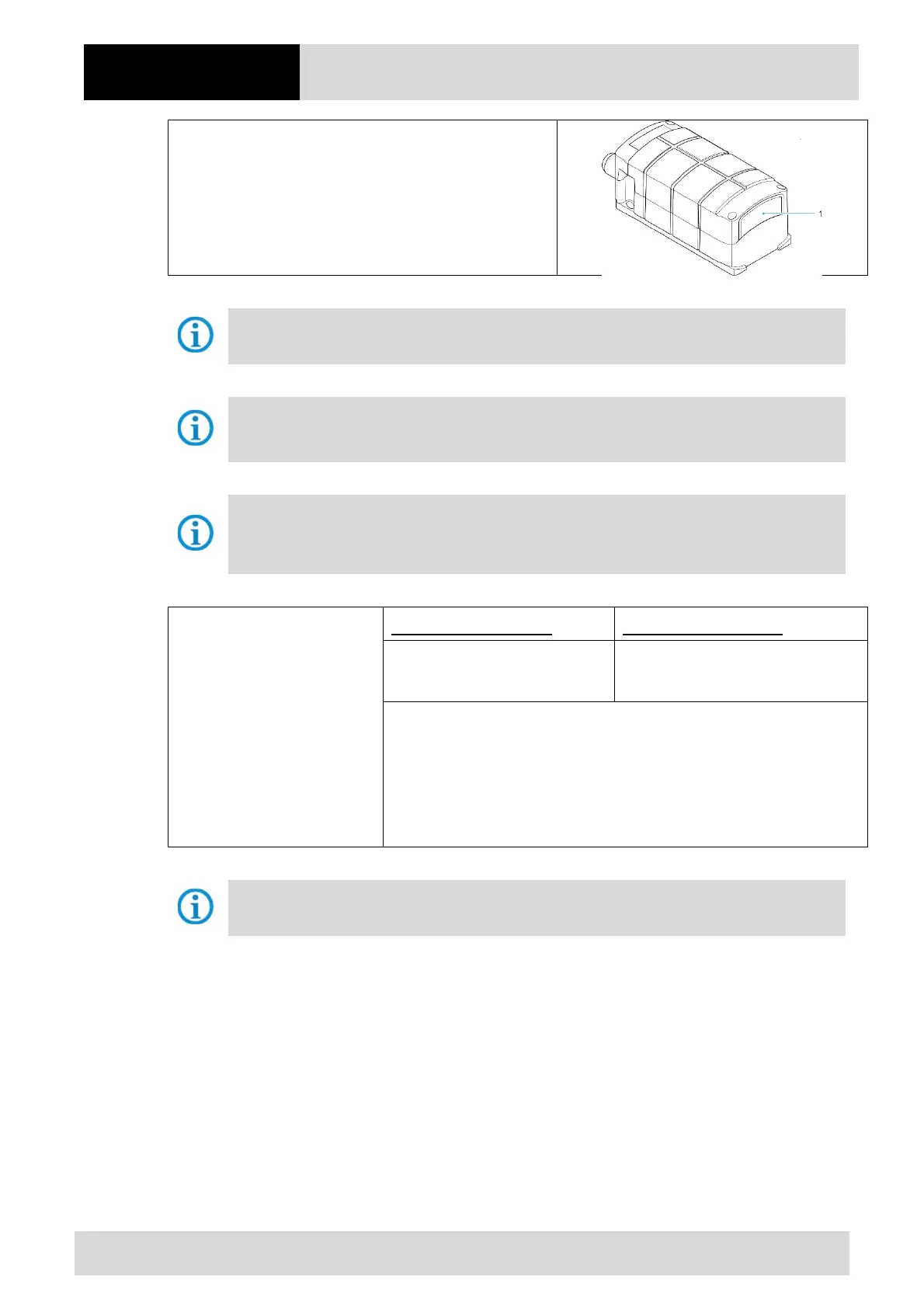

Bartec BCS36 8ex Series Supplementary Description

BCS36x8
ex
Series Connection example
Type 17-A1S4-*HP* and B7-A2S4-****
Page 26 of 78
Subject to technical changes.
05/2020
Scan in the pairing barcode on the universal supply module.
The barcode can be found on the cover.
The barcode for pairing can be created at any time using the Zebra 123Scan utility. Use the
MAC address of the Bluetooth module in the universal supply module for this.
Programming/setting via the Zebra 123 Scan Utility is not supported via the USM.
A programming cable is required.
The hand-held scanner is paired to the universal supply module via Bluetooth. The universal
supply module transmits serial data on the output side. You can find the set factory defaults
below.
Default settings of the
Bluetooth module in the
universal supply module
RS-232 host parameters
RS-232 host parameters
UVM 1. Generation:
Baud Rate: 115200 Baud
UVM 2. Generation:
Baud Rate: 9600 Baud
Parity: None
Stop bits: 1-Bit
Data bits: 8-Bit
Hardware handshaking: None
Software handshaking: None
Further customized settings can be performed with the help of the Zebra Product Reference
Guide or the Zebra 123Scan utility.
