2. Installation

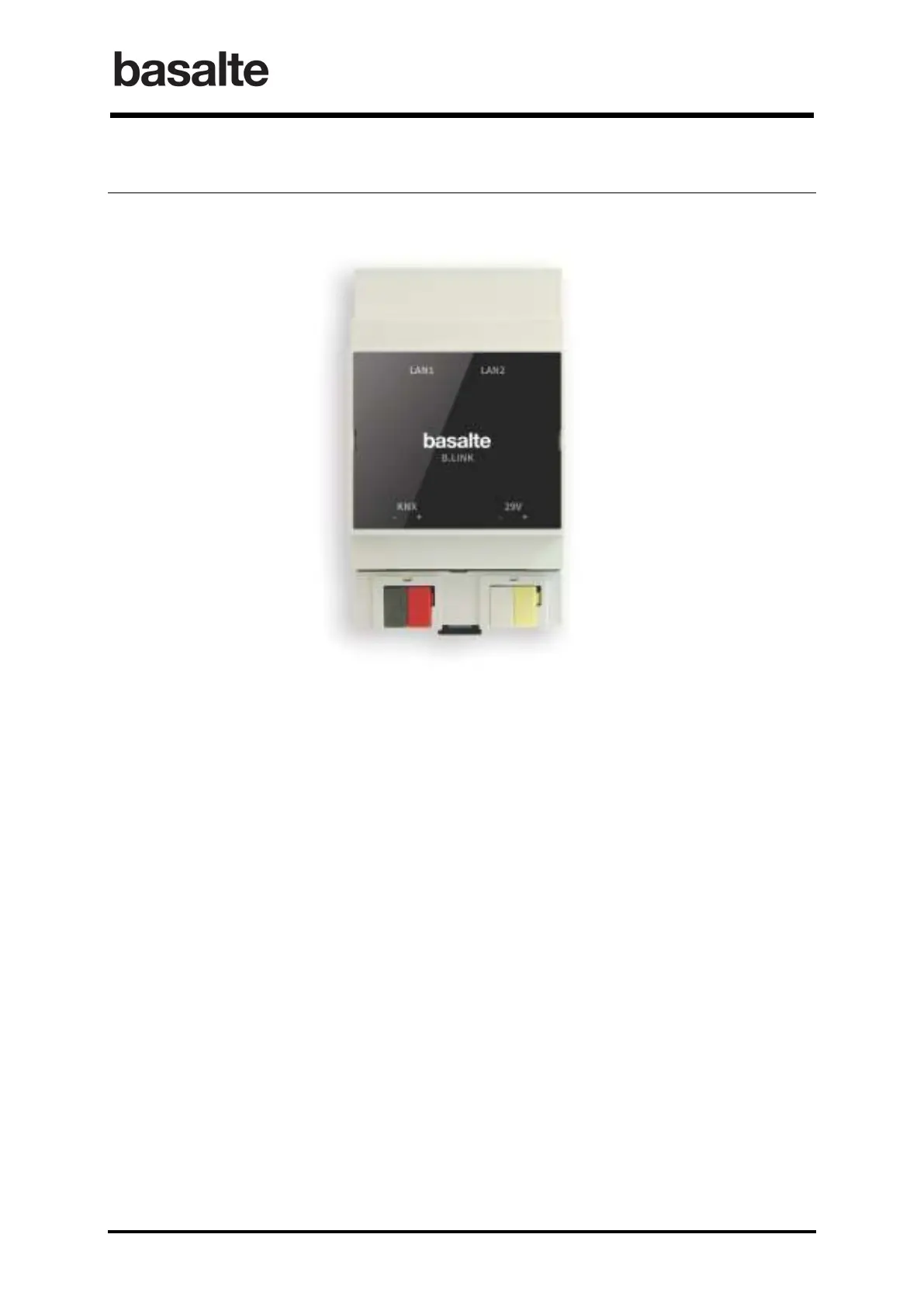

After mounting the B.link in a standard DIN rail, install the B.link by:
• connecting the B.link to the KNX network;
• connecting the B.link to your local network. The B.link has an integrated switch with a
second Ethernet port that can be used to daisy chain other network modules such as MMS
modules or additional B.link modules;
• power the B.link using 29V DC power supply.
The B.link communicates with the B.link Flex modules and the A/V receivers over TCP/IP.
Therefore all components should be connected to the same local network and configured with a
fixed IP address. For both the A/V receivers and the B.link Flex modules DHCP must be
disabled and a fixed IP address assigned.
