5. B.link Configuration software

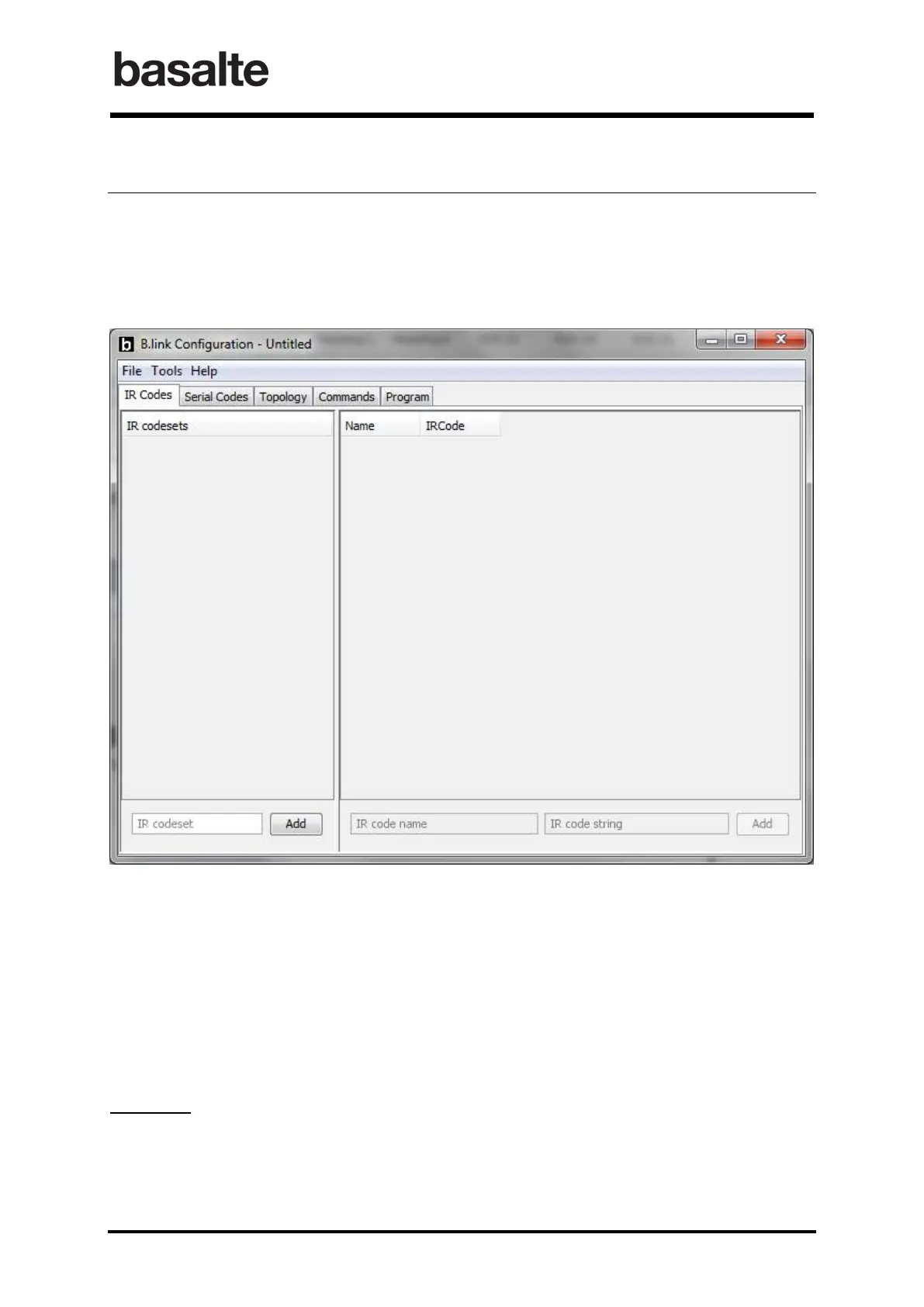

The B.link Configuration software allows managing your set IR and Serial Codes, defining the
topology of B.link Flex modules used and configuring macros. Macros allow chaining of several
commands, being IR and serial codes in combination with KNX command. Each macro has a KNX
trigger object and a trigger value. The corresponding objects must also be configured as a B.link
input object using ETS.
The main functions are divided in following section (tabs):
• IR Codes : create and maintain a repository of IR codesets used.
• Serial Codes : create and maintain you Serial Codes used.
• Topology : define the network topology of (up to) 16 B.link Flex modules and the
devices connected.
• Commands : define macros
• Program : download the configuration to the B.link. Program tab can also be used to
install new firmwares.
Important: IR and Serial codes can easily be imported from existing projects using the
Import Code feature in the File menu.
