5.3 Topology
One B.link can be connected to 16 B.link Flex modules, with each module able to control either 3 IR
devices or 1 serial device.

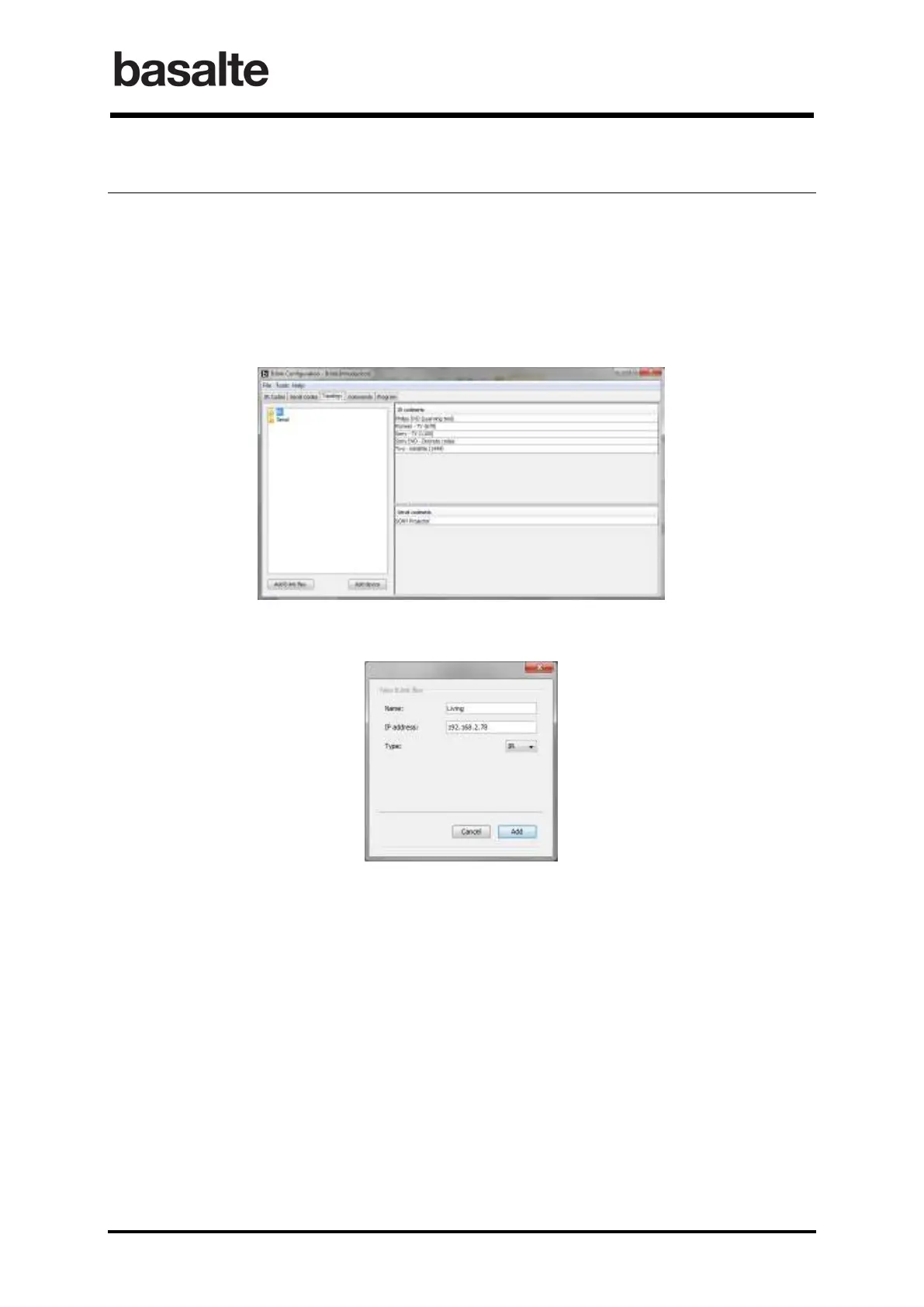

The B.link application – Topology section allows you to define network topology of the B.link Flex
modules used in the installation. The configuration of the B.link Flex module itself, IP address &
Link Port configuration, can be done using the web interface as described in 4 B.link Flex.
To add a new module, click Add B.link flex and define the Name, IP address and type (IR or
Serial).
