20

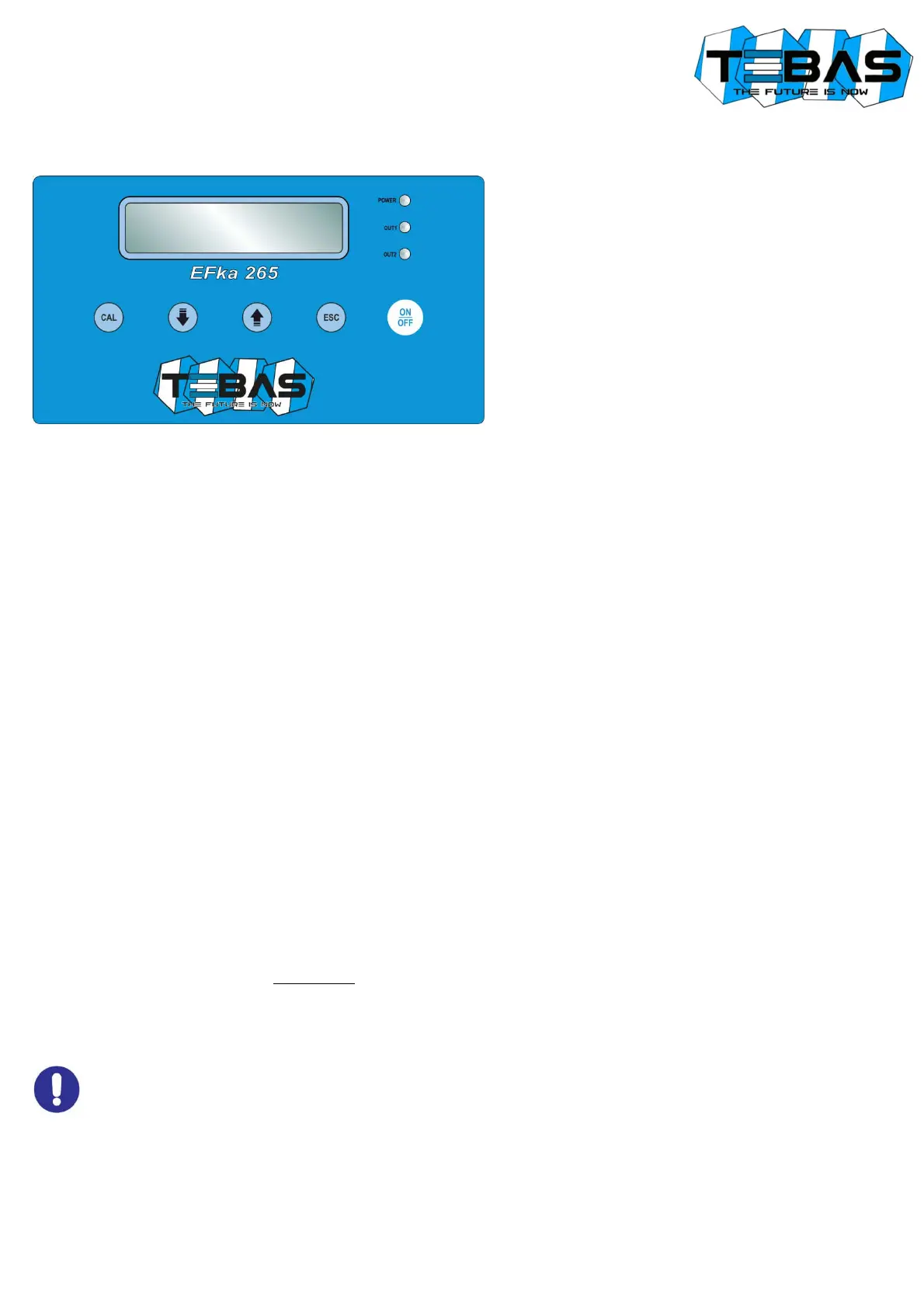

Front panel
POWER LED Green light; slow flashing indicates that the unit is powered and normally functioning, while fast blinking
indicates a fault (lack of liquid to be dosed or pump magnet disabled).
OUT1, OUT2 LED Red light on during the rotation of the respective pump.
CAL Key Provides access to the “Configuration”, “Calibration” and “Manual Mode” menus; confirms parameter
modifications.
⇓
Key Scrolls the available menus/options; in calibration and configuration modes decreases the displayed
value.
⇑
Key Scrolls the available menus/options; in calibration and configuration modes increases the displayed
value.
ESC Key In calibration and configuration modes exits without saving the modifications; from manual mode
resumes to normal operations.
ON/OFF Key Activate / de-activates the unit or confirms alarms; both the disabled dosing or alarm condition are
indicated by the POWER LED that flashes fast.
(Warning! The unit remains disabled even in case of shutdown / restart)
HYDRAULIC CONNECTIONS
Check that the suction line does not exceed the maximum height of 1.5 m from the tank bottom. Unscrew the pipe-wrench
nut and remove the two protective caps from fittings (in the case a pump head needs to be removed, it is recommended to
reuse the protective caps, to prevent any leakage from the pump body).
Note: If the product to be dosed is sulfuric acid (10% max concentration), previously remove any water from the pump and
use polyethylene pipes.
All operations to tighten the pipe connections of the pumps must be done by hand, without using any tools (e.g. pliers
squeeze tube), to avoid damaging the hydraulic connections.
Warning! Before performing any kind of operation on the pump, carefully read the HSDS of the chemical to be
dosed, in order to define the proper behaviors to be followed, and the personal safety equipment to be worn.
