9440300990 14-5
DECS-250 Event Recorder

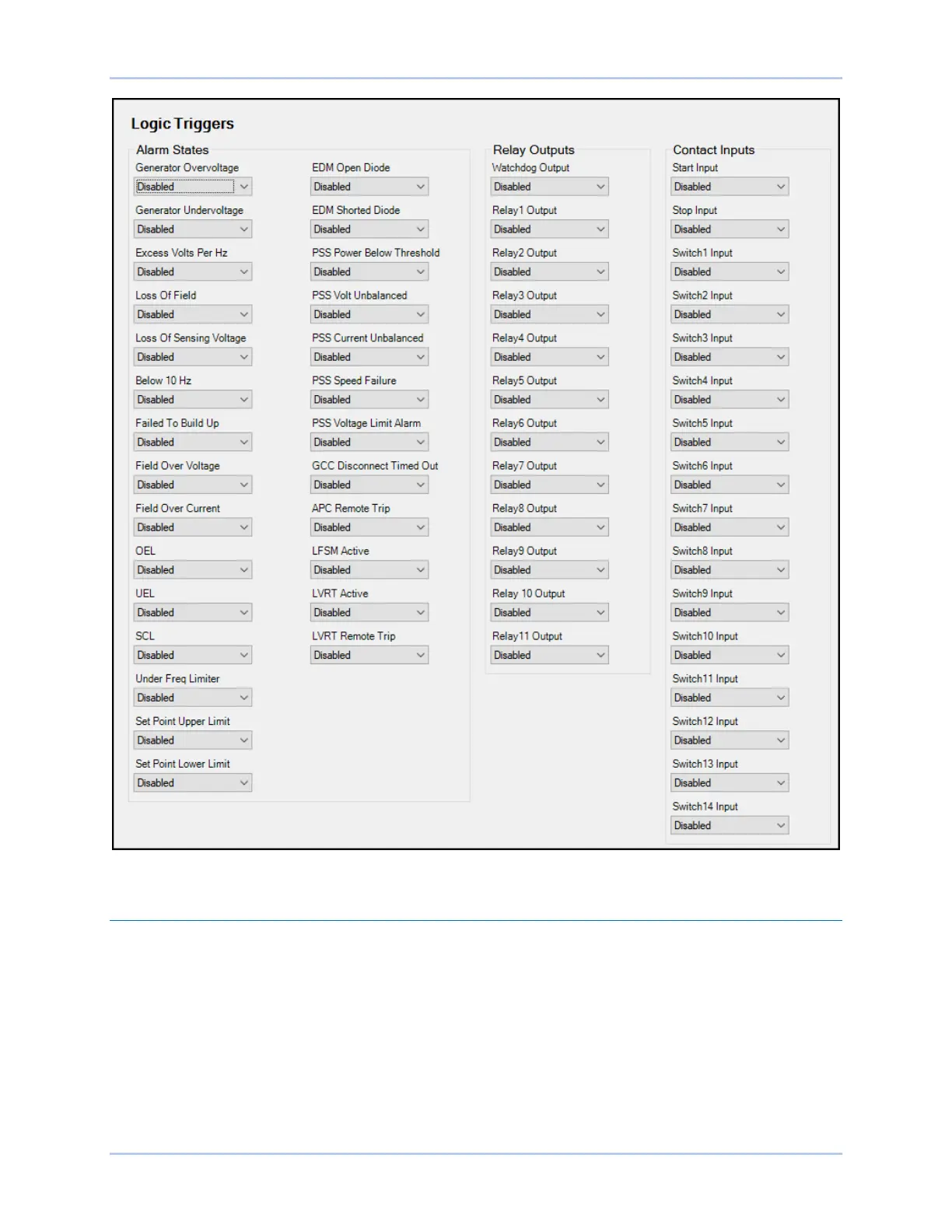

Figure 14-5. Data Log Logic Triggers
Trending
BESTCOMSPlus Navigation Path: Settings Explorer, Report Configuration, Trending
HMI Navigation Path: Settings, Configuration Settings, Trending
The trend log records the activity of DECS-250 parameters over an extended period of time. When
enabled, up to six selectable parameters can be monitored over a user-defined duration ranging from one
to 720 hours. Trend log settings are illustrated in Figure 14-6.
