DECS-250 Controls and Indicators
2 • Controls and Indicators
All controls and indicators are located on the front panel and consist of pushbuttons, LED indicators, and
a liquid-crystal display (LCD).
Front Panel Illustration and Description
DECS-250 controls and indicators are illustrated in Figure 2-1 and described in Table 2-1. The locators
and descriptions of Table 2-1 correspond to the locators shown in Figure 2-1.

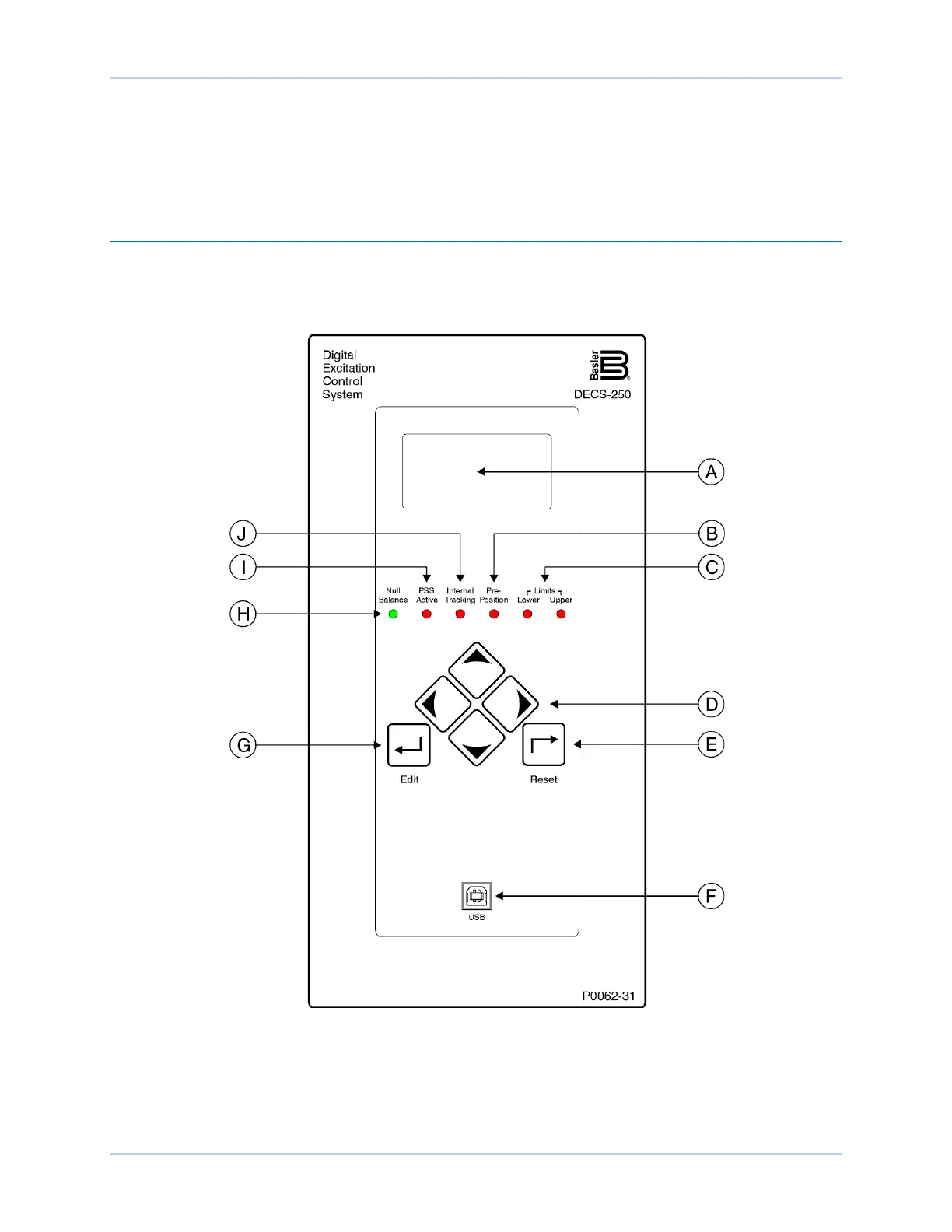

Figure 2-1. Front Panel Controls and Indicators
