Physical Interface
54 Basler scout

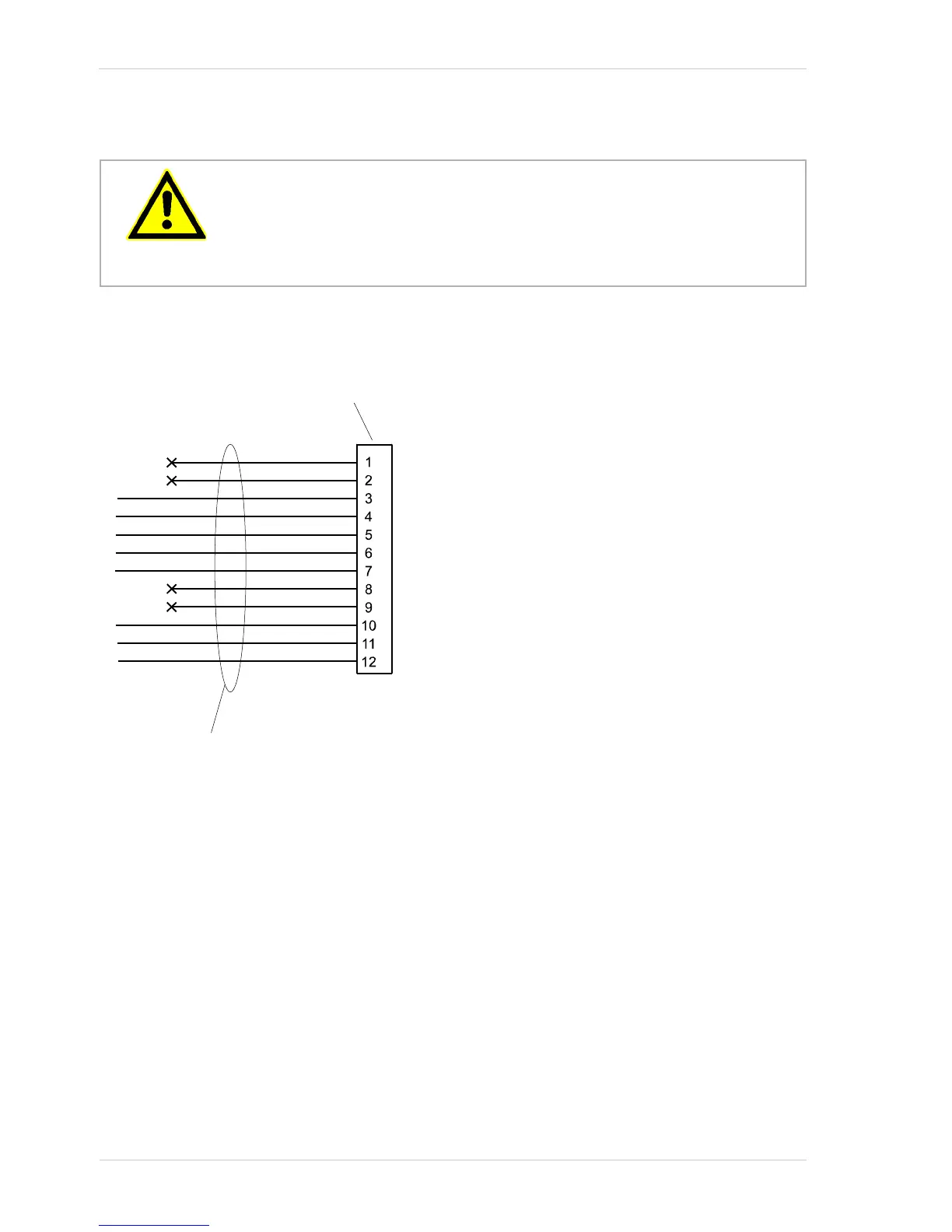

Fig. 34: Standard I/O Cable
An Incorrect Plug Can Damage the 12-pin Connector
The plug on the cable that you attach to the camera’s 12-pin connector must
have 12 pins. Use of a smaller plug, such as one with 10 pins or 8 pins, can
damage the pins in the camera’s 12-pin connector.
CAUTION
Hirose
HR10A-10P-12S
12-pin Plug
Not Connected
Not Connected
I/O In 1
I/O In 2
I/O In Gnd
I/O Out 1
I/O Out 2
I/O Out 3
I/O Out 4
I/O Out VCC
Not Connected
Not Connected
Standard I/O Cable
