www.batcafitness.com 15 Omega 4 Owner’s Manual
All Flat Washers and Nylocks are 3/8”
unless otherwise noted.

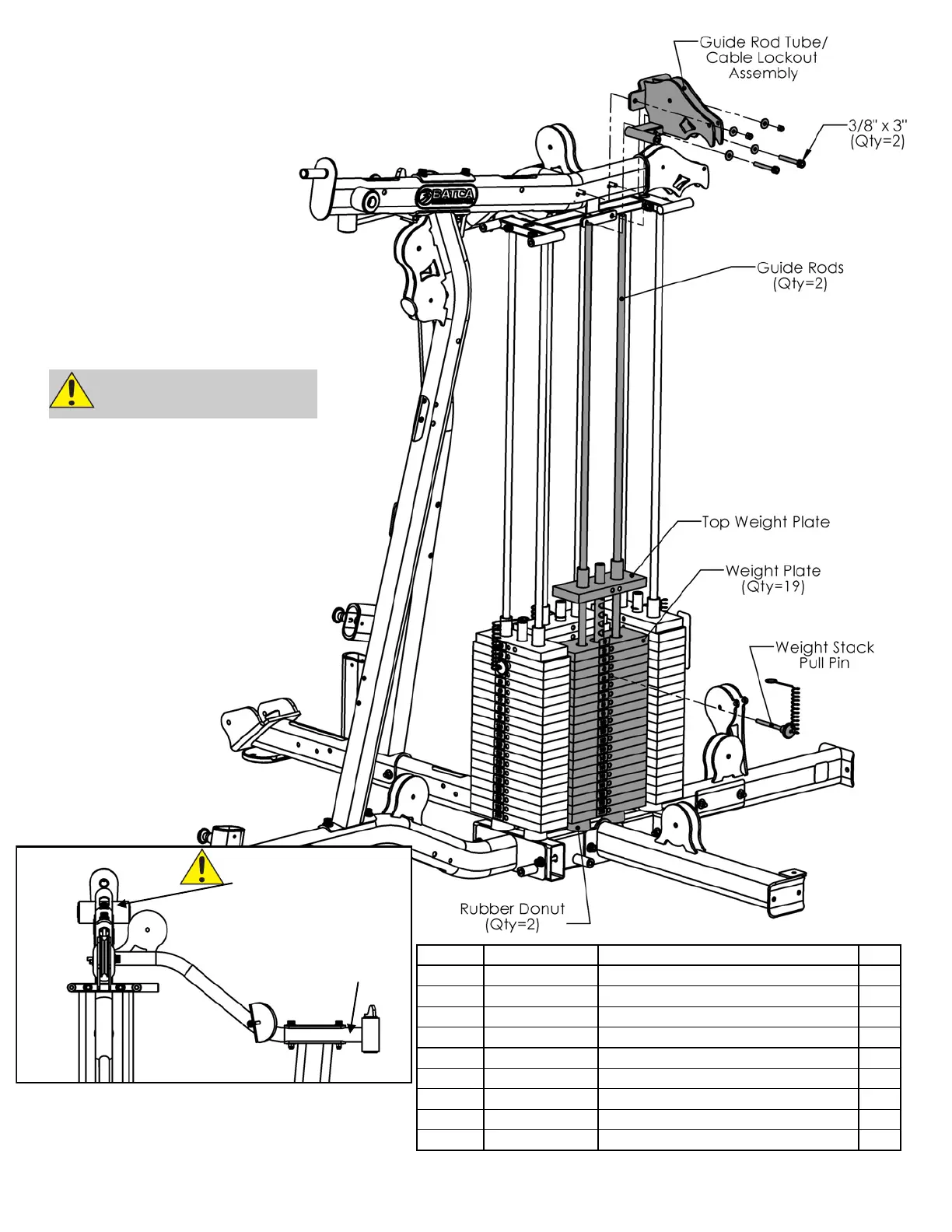

Step 6:
Item # Part # Description Qty
132 BFP-10965
Guide Rod Tube/Cable Lockout Plate
1
128 BFM-50260 Guide Rod 2
129 BFM-10299 Top Weight Plate 1
130 BFM-50256 Weight Stack Plate 19
169 BFM-51173 Weight Stack Pull Pin 1
131 BFP-52143 Rubber Donut 2
159 BFP-51747 SHCS 3/8” x 3” 2
165 BFH-50146 3/8” Flat Washer 4
166 BFH-50157 3/8” Nylock 2
Figure 6
Make Sure All Bolts Are
Tightened before moving on
It is crucial that extra care
is taken to ensure the TOP
FRAME BRACE and the PEC
TOP is straight once all of
the hardware has been
tightened. If it is crooked it
WILL cause problems with
the installation of the rest
of the components of this
machine
To Next Page
