Batca Fitness Systems 20 Omega 4 Owner's Manual
Step 11:
Item # Part # Description Qty
39 BFP-10832R Lower Pec Arm (Right) 1
40 BFP-10832L Lower Pec Arm (Left) 1
41 BFP-10826 Chest Press Arm 1
42 BFP-10837 Chest Press Pulley Holder 1
43 BFP-51736 Axle 2
100 BFH-51750 SHCS 3/8” x 2 3/4” 2
104 BFH-51884 SHCS 3/8” x 4 1/4” 2
106 BFH-51756 SHCS 3/8” x 5 1/4” 2
110 BFH-50204 3/8” Curved Washer 4
111 BFH-50146 3/8” Flat Washer 8
112 BFH-50157 3/8” Nylock 6

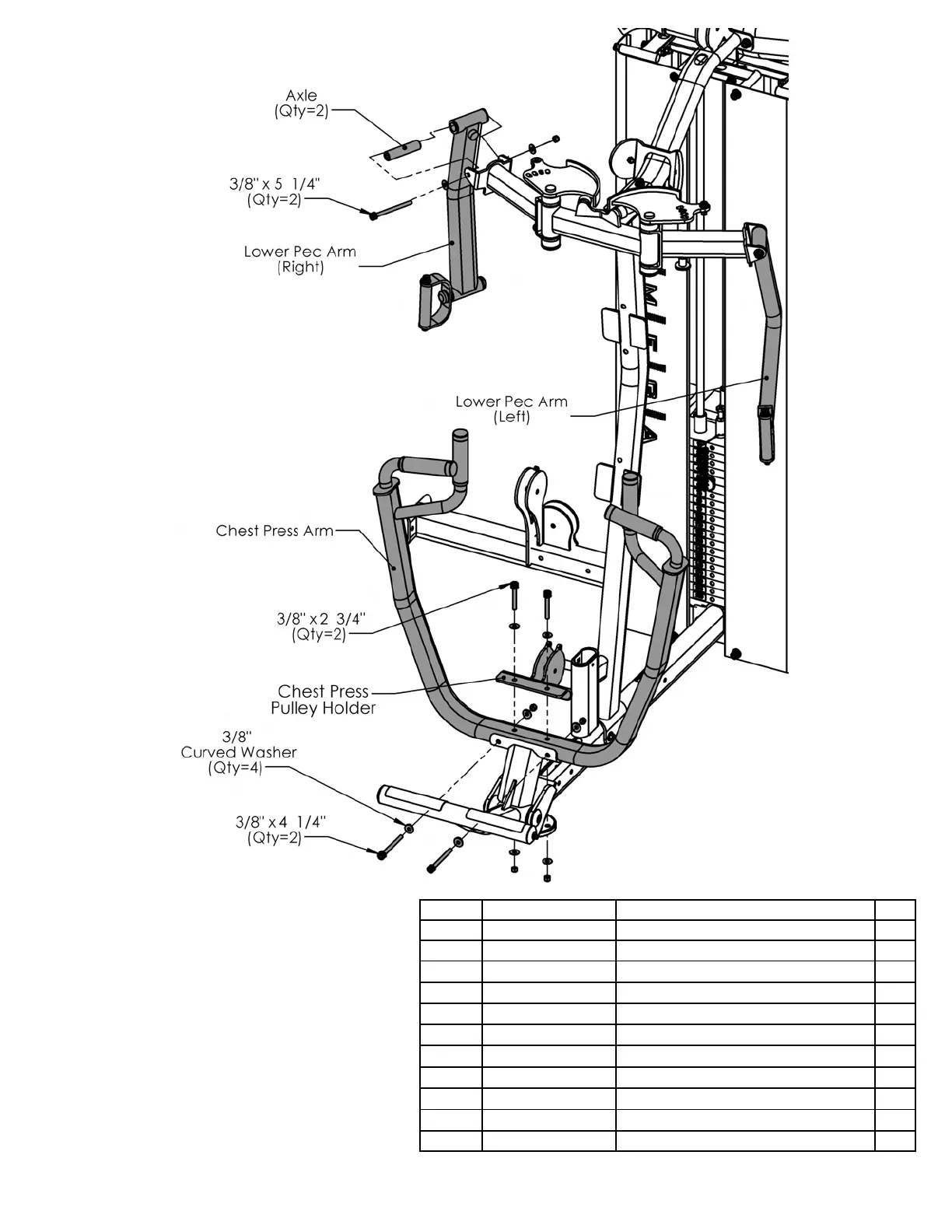

Figure 11
All Flat Washers and Nylocks are 3/8”
unless otherwise noted. Anywhere a
washer is against the round side of a tube
there is to be a
3/8” CURVED WASHER
instead of a
3/8” FLAT WASHER.
