Topology Planning
In order to perform IRT Class3, a topology planning must be done. Port connections and cable
lengths between all system components are made known to the project. In this way the project tool is
enabled to consider cable-, port- and switch delay times and to optimize overall performance.

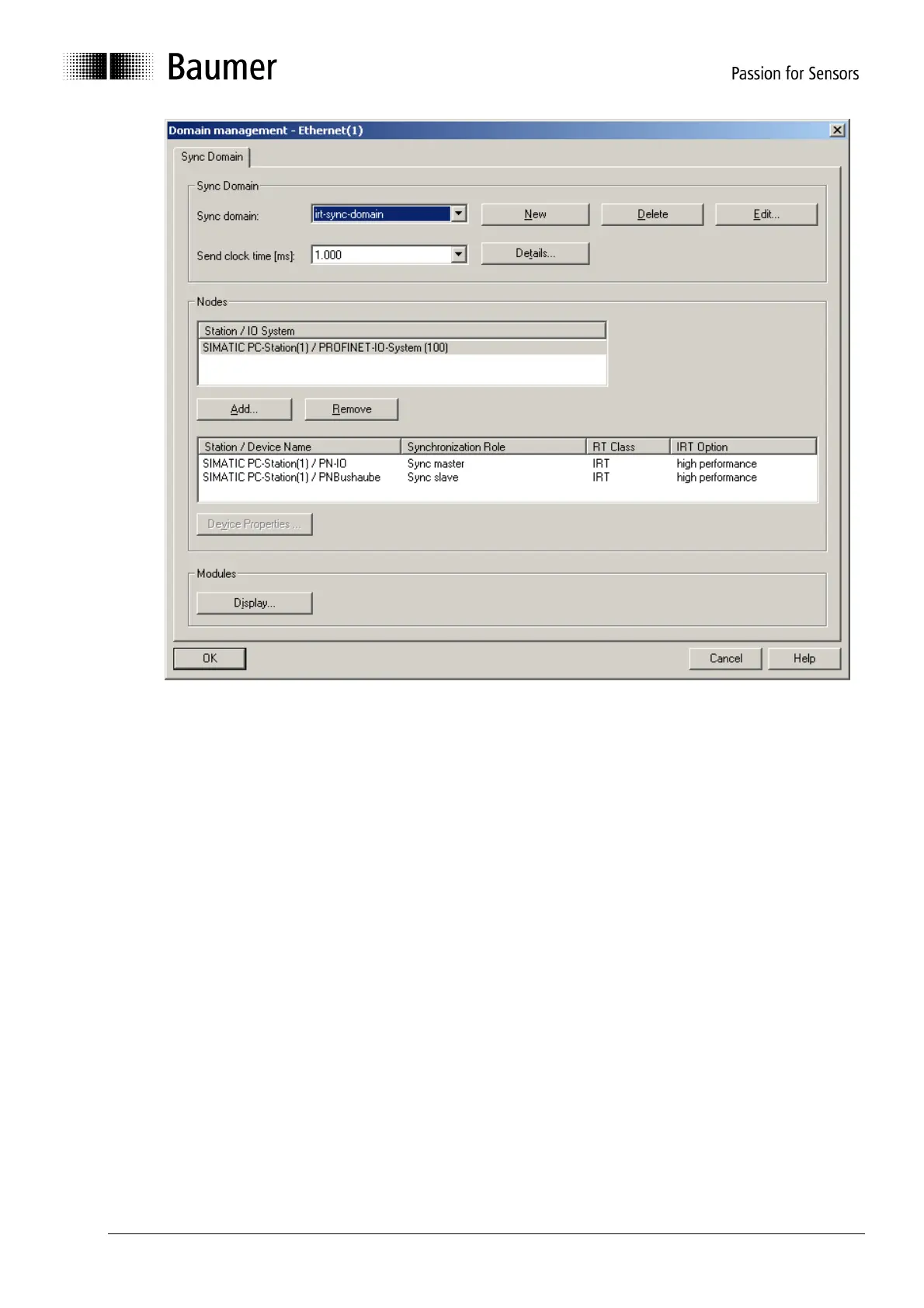

Enter Topology Planning e.g. by right-clicking the PROFINET bus rail in the Hardware window of
Step7 software, which opens the following pull-down menu.
