Baumer EXG03 User Manual

6
2. ProductSpecications
SensorSpecications2.1.
2.1.1.

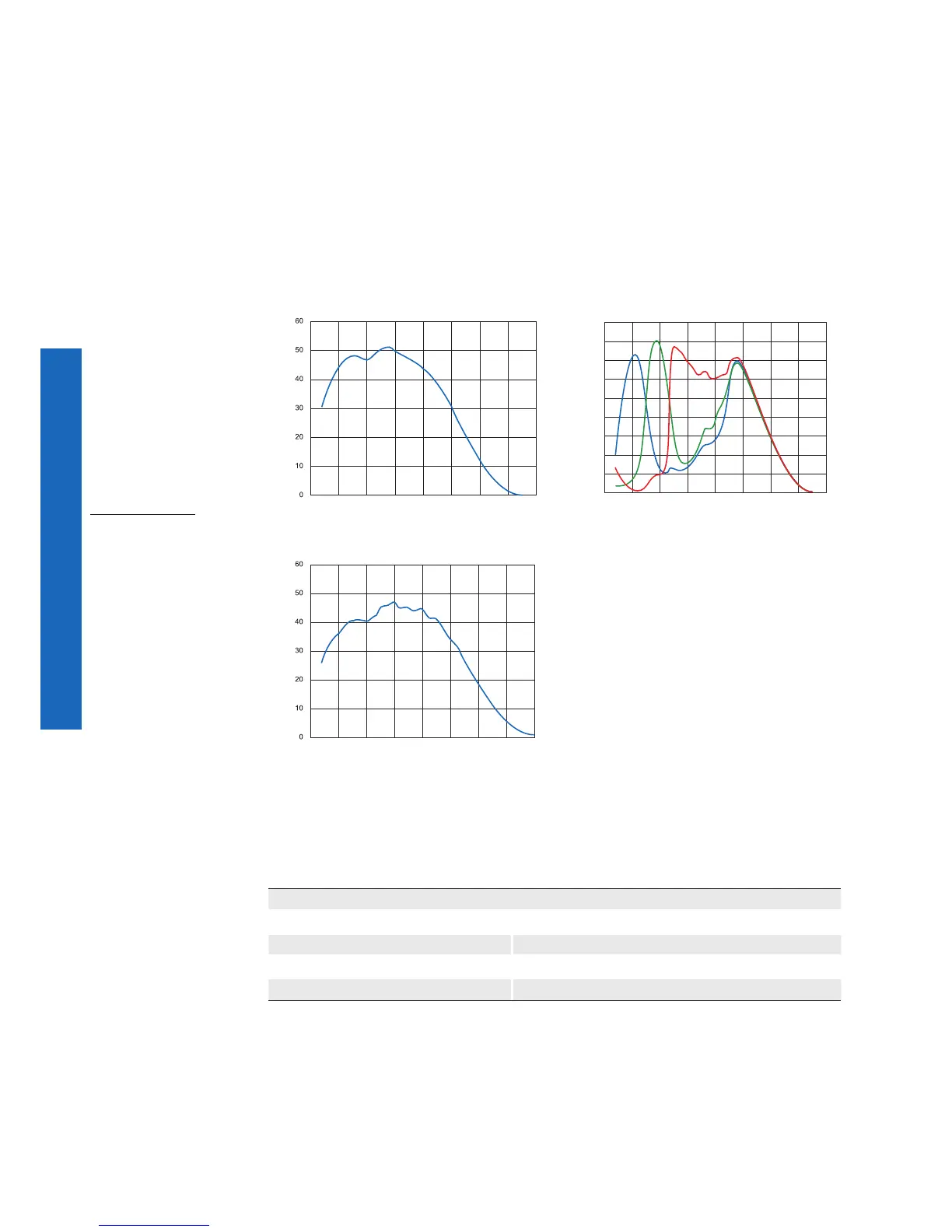

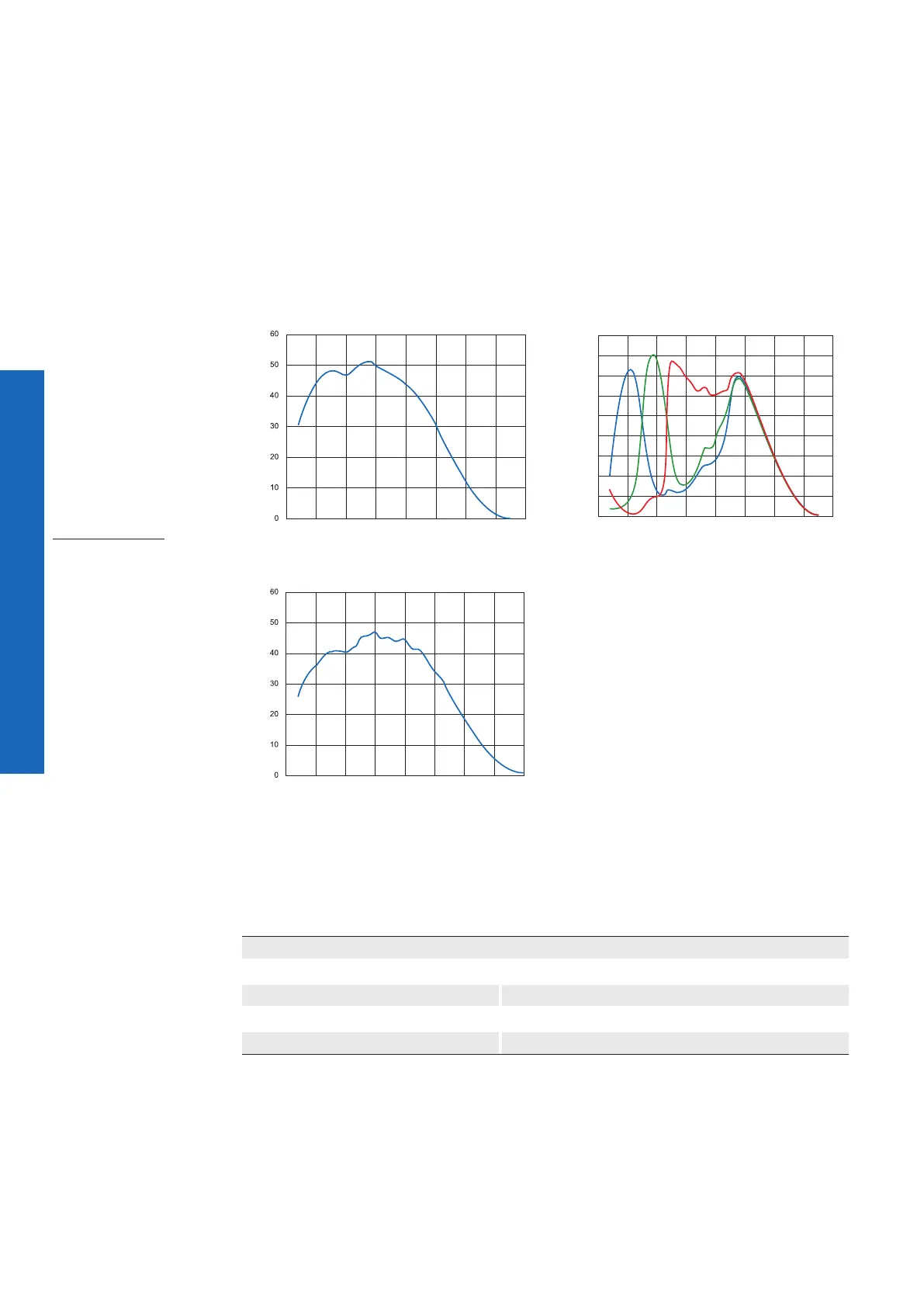

QuantumEfciencyforBaumerEXGCameras
The quantum efciency characteristics of monochrome and color matrix sensors for
Baumer EXG cameras are displayed in the following graphs. The characteristic curves
for the sensors do not take the characteristics of lenses and light sources without lters
into consideration.
Values relating to the respective technical data sheets of the sensors manufacturer.
350 450 550 650 750 850 950 10501150
Wave Length [nm]
Quantum Efficiency [%]
EXG03
350 450 550 650 750 850 950 10501150
0
5
10
20
15
25
30
35
40
45
Wave Length [nm]
Quantum Efficiency [%]
EXG03c
350 450 550 650 750 850 950 10501150
Wave Length [nm]
Quantum Efficiency [%]
EXG50
Shutters2.1.2.
The camera models of the EXG series are equipped with different shutters:
CameraType ShutterType
Monochrome
EXG03 Global
EXG50 Rolling
Color
EXG03c Global
Figure3►
Spectral sensitivities for
Baumer EXG cameras
with 0.3 MP
*)
CMOS
sensor�
*) MP = Megapixels
Figure4►
Spectral sensitivities for
Baumer EXG cameras
with 5.0 MP CMOS
sensor�
