53

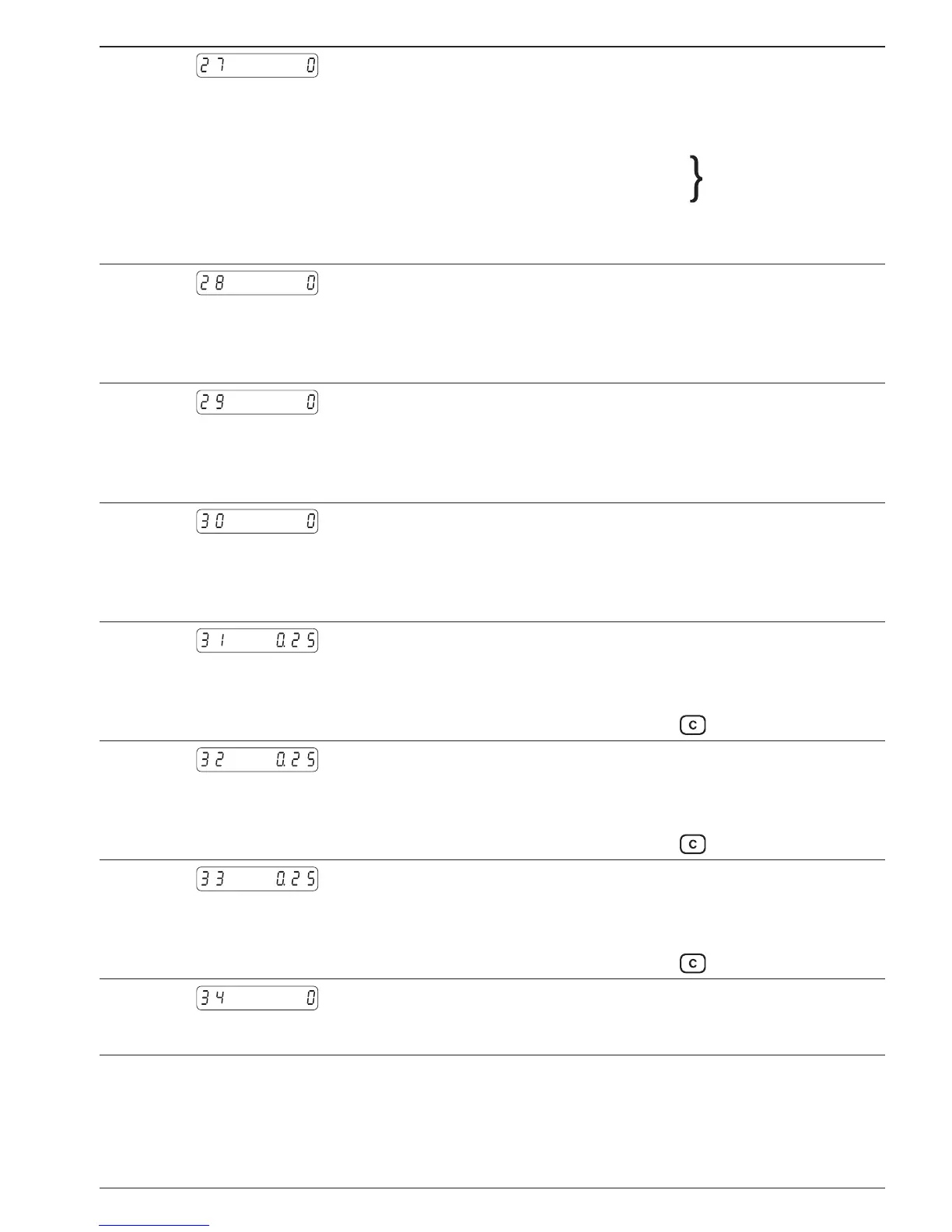

Line 27 Counting mode XP and ∑
0 * Track A and UP/DOWN signal on track B
1 Differential counting, track A adding, track B subtracting (A-B)
2 Totalizing, tracks A and B adding (A+B)
3 Track A 90° track B single evaluation
4 Track A 90° track B twofold evaluation
5 Track A 90° track B fourfold evaluation
e.g. with increm.
encoders with A
and B signal output
● To set track A at 90° to track B, the input frequencies for both
tracks must be adjusted to 10 kHz (lines 24 and 25).
Line 28
Decimal point (applies to XP, P1, P2, SC, ∑)
0 * No decimal point
1 0.0
2 0.00
3 0.000
Line 29
Reset main counter
0 * Automatic reset and external, statically effective
1 Automatic reset and external, edge active
2 External reset only, statically effective
3 External reset only, edge effective
Line 30
Reset batch counter
0 * Automatic reset and external, statically effective
1 Automatic reset and external, edge effective
2 External reset only, statically effective
3 External reset only, edge effective
Line 31
Output time P1
00.00 Data in sec. (tol. -0.01s, range 00.02-99.99s)
00.25 * 0.25
99.99 Maximum pulse time
LAtch LAtch = continious signal, press key
Line 32
Output time P2
00.00 Data in sec. (tol. -0.01s, range 00.02-99.99s)
00.25 * 0.25
99.99 Maximum pulse time
LAtch LAtch = continious signal, press key
Line 33
Output time B1
00.00 Data in sec. (tol. -0.01s, range 00.02-99.99s)
00.25 * 0.25
99.99 Maximum pulse time
LAtch LAtch = continious signal, press key
Line 34
Accept presets P1, P2 and B1
0 * On reset
1 Effective immediately
