43

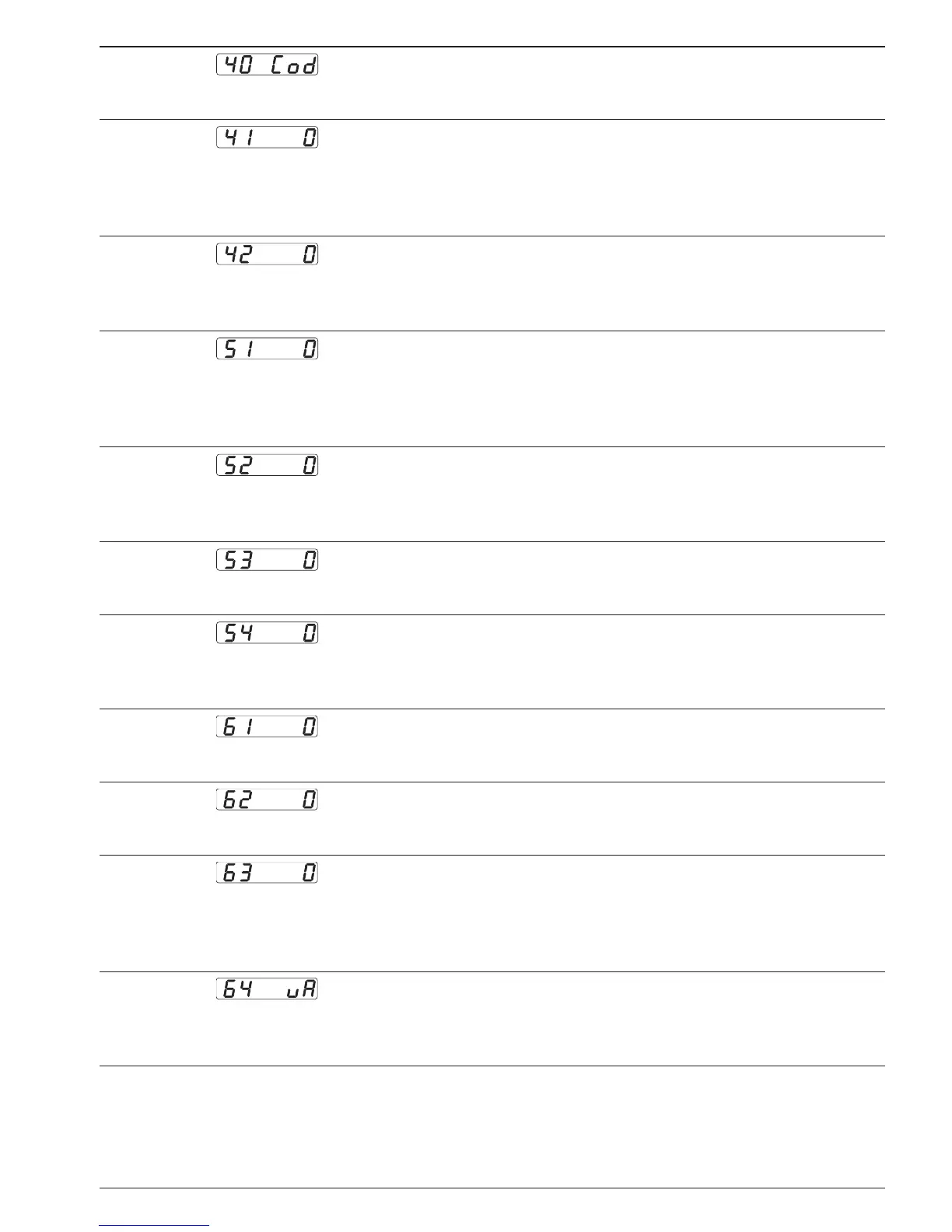

Line 40 Code setting
0 * No code
1 9999
Line 41
Batch counter functions
1 * As totalizing counter, divider 1
2 As totalizing counter, divider 10
3 As totalizing counter, divider 100
4 Counting on reaching P2
Line 42
Batch counter as multiplier – only when line 41 = 3
0 * Default
0 Min.
999 Max.
Line 51
Baud rate
0 * 4800 baud
1 2400 baud
2 1200 baud
3 600 baud
Line 52
Parity
0 * Even Parity (7 data bits)
1 Odd Parity (7 data bits)
2 no Parity (8 data bits)
Line 53
Stop bits
0 * 1 Stop bit
1 2 Stop bits
Line 54
Adress
0 * Default
0 Min.
999 Max
Line 61
Analog output assignment
0 * Main counter
1 Batch counter
Line 62
Analog output offset
0 * No offset
1 Offset 2 V/4 mA
Line 63
Assignment of lower analog limit
0 * Variable value from line 64
1 SC
2 P1
3 P2
Line 64
Lower analog limit
0 * Default
-999999 Min.
999999 Max.
